Description

Price

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-12-00

Unavailable

2

SEC SLIDING SHEAVE

8AV-17670-12-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SCREW, BINDING

98907-06016-00

$9.49

5

BUSH, BIMETAL FORMED (90384-90081-00)

90380-90117-00

Unavailable

6

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

7

WASHER, CLAW(88R)

90214-29060-00

$7.49

8

CIRCLIP(86F)

93440-34170-00

$8.49

9

SEAT, SECONDARY SPRING

89N-17684-01-00

Unavailable

10

SPRING, TORSION (8U7)

90508-50571-00

$11.49

11

SHAFT, SECONDARY

88T-17680-01-00

Unavailable

12

HOUSING, BEARING

85L-47631-00-00

Unavailable

13

BEARING(83R)

93306-20582-00

$58.99

14

CIRCLIP(26H)

99009-52500-00

$12.49

15

BOLT, HEXAGON

97017-08020-00

$9.49

16

WASHER(6TA)

92907-08600-00

Unavailable

17

CIRCLIP (256)

93410-25017-00

Unavailable

18

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

18

WASHER, PLATE (888)

90201-25526-00

Unavailable

18

WASHER, PLATE (888)

90201-25527-00

Unavailable

19

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

19

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

20

COLLAR

90387-147A8-00

Unavailable

21

WASHER, PLATE

90201-14022-00

Unavailable

22

BOLT, WASHER BASED

90105-14175-00

Unavailable

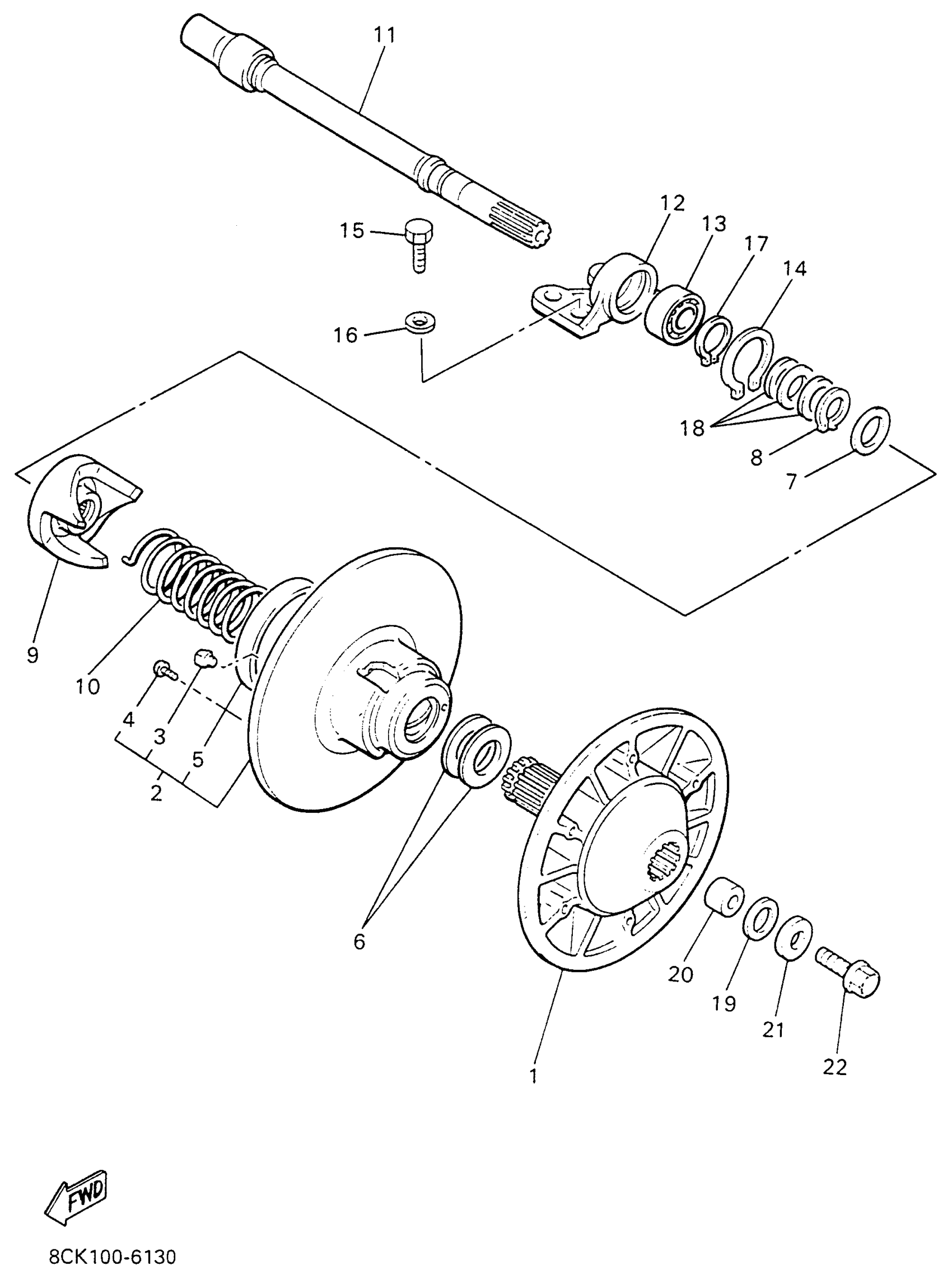

Yamaha VT480W (VENTURE XL) 8BK3 1996 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SEC SLIDING SHEAVE

SHOE RAMP

SCREW, BINDING

BUSH, BIMETAL FORMED (90384-90081-00)

WASHER, PLATE (8U9)

WASHER, CLAW(88R)

CIRCLIP(86F)

SEAT, SECONDARY SPRING

SPRING, TORSION (8U7)

SHAFT, SECONDARY

HOUSING, BEARING

BEARING(83R)

CIRCLIP(26H)

BOLT, HEXAGON

WASHER(6TA)

CIRCLIP (256)

WASHER, PLATE (8R6)

WASHER, PLATE (888)

WASHER, PLATE (888)

WASHER, PLATE (T=0.5)

WASHER, PLATE (8L8)

COLLAR

WASHER, PLATE

BOLT, WASHER BASED
