Description

Price

1

SPEEDOMETER ASSY (MILE/H)

88T-83510-40-00

Unavailable

2

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

3

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

4

DAMPER

88T-83523-00-00

Unavailable

5

NUT, HEXAGON

95317-05600-00

$2.34

6

WASHER(3SX)

92907-05100-00

$8.49

7

TRIP METER CABLE ASSY

8K1-83603-01-00

Unavailable

8

TACHOMETER ASSEMBLY

88T-83540-00-00

Unavailable

9

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

10

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

11

DAMPER

88T-83523-00-00

Unavailable

12

NUT, HEXAGON

95317-05600-00

$2.34

13

WASHER(3SX)

92907-05100-00

$8.49

14

SPEEDOMETER CABLE ASSEMBLY

85N-83550-01-00

Unavailable

15

TACHOMETER CABLE ASSEMBLY

88T-83560-00-00

Unavailable

16

METER GEAR HOUSING COMP.

8L8-47700-00-00

Unavailable

17

JOINT

8K4-47715-00-00

Unavailable

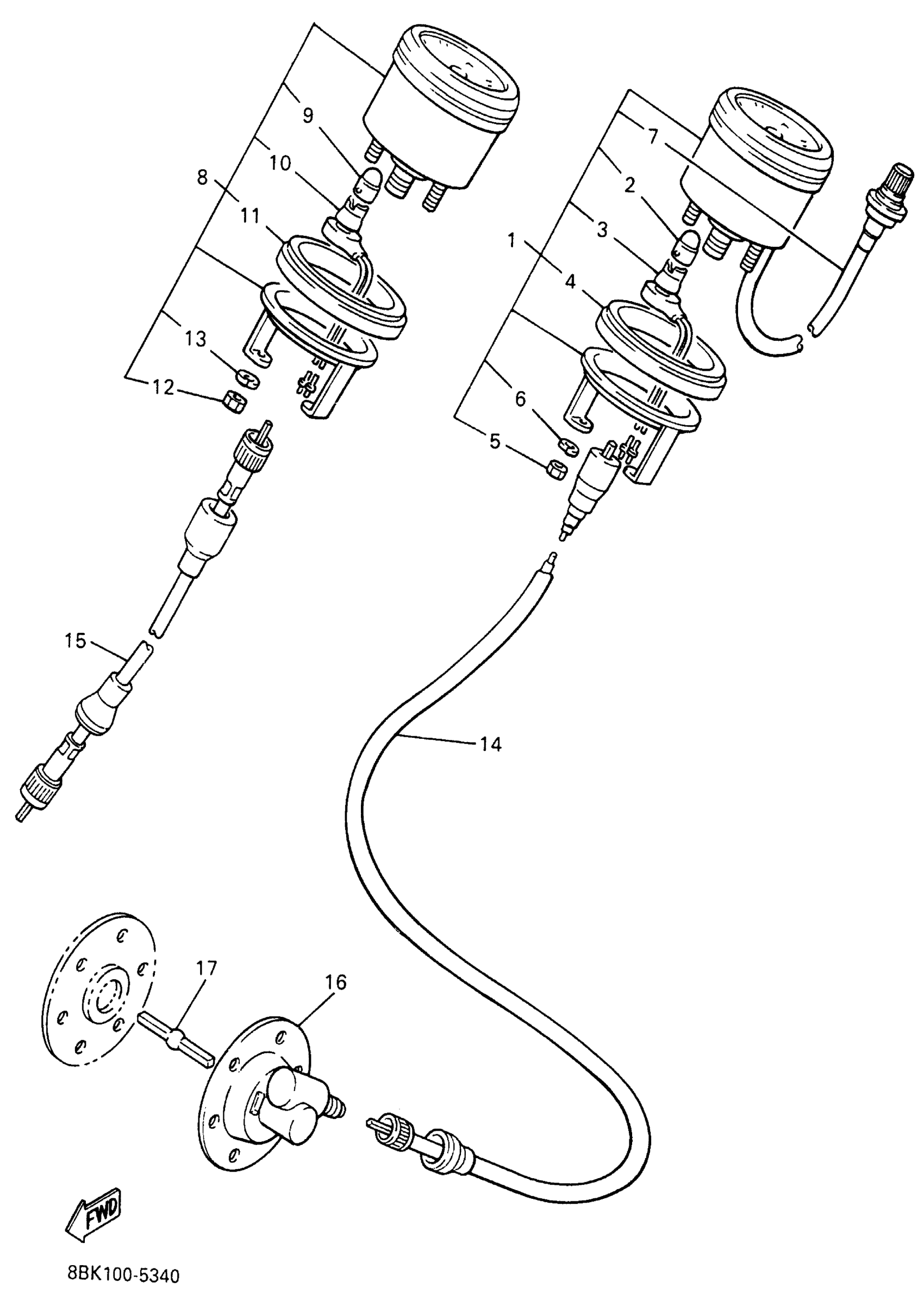

Yamaha VT480W (VENTURE XL) 8BK3 1996 METER Diagram

SPEEDOMETER ASSY (MILE/H)

BULB, MTR.12V3.4W

SOCKET CORD ASSY

DAMPER

NUT, HEXAGON

WASHER(3SX)

TRIP METER CABLE ASSY

TACHOMETER ASSEMBLY

BULB, MTR.12V3.4W

SOCKET CORD ASSY

DAMPER

NUT, HEXAGON

WASHER(3SX)

SPEEDOMETER CABLE ASSEMBLY

TACHOMETER CABLE ASSEMBLY

METER GEAR HOUSING COMP.

JOINT
