- VT480W (VENTURE XL) 8BK3 1996
ELECTRICAL 1

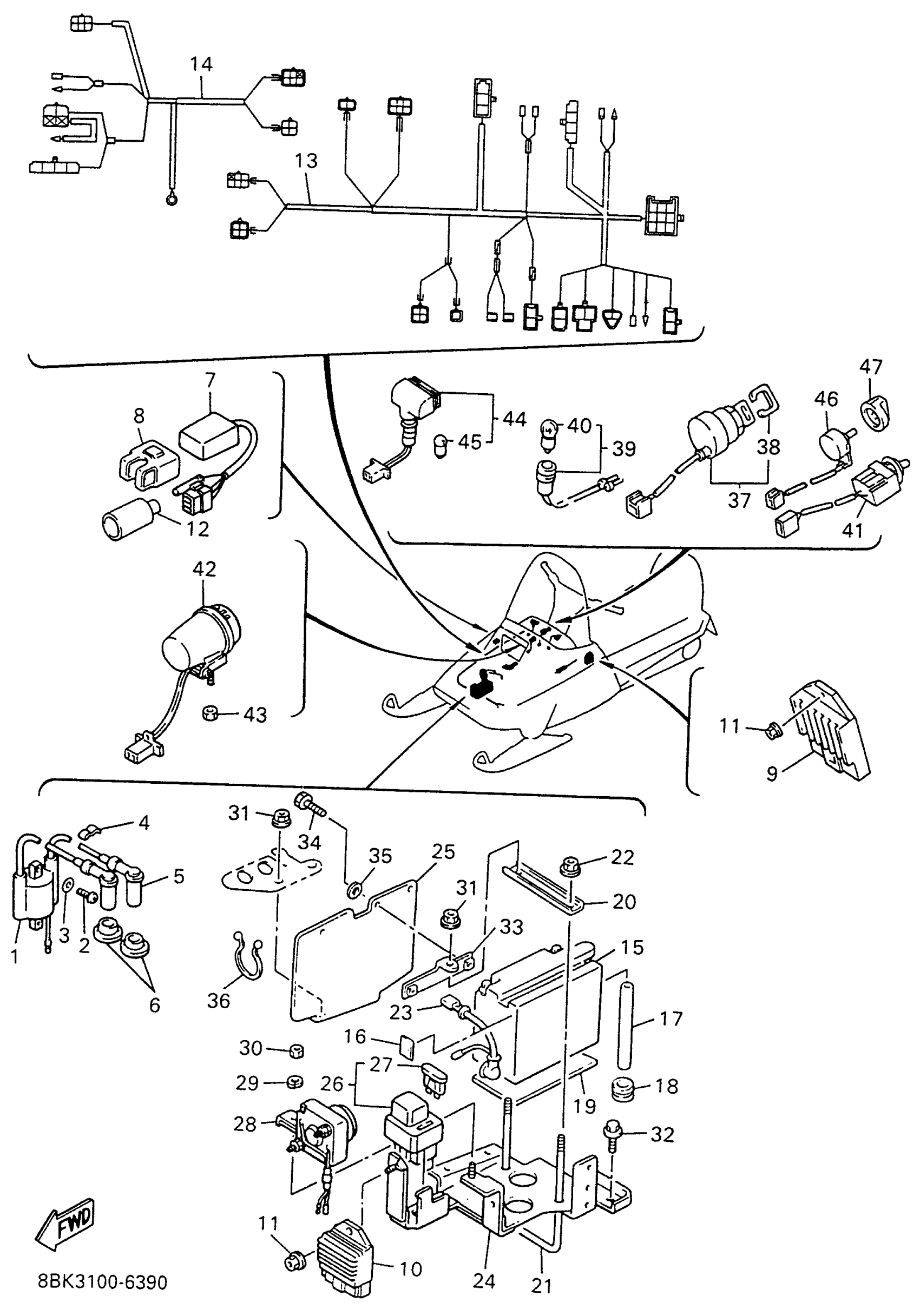

Yamaha VT480W (VENTURE XL) 8BK3 1996 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8AB-82310-07-00
$85.99
2
SCREW PAN HEAD
98580-06020-00
$8.49
3
WASHER, PLAIN (646)
92990-06600-00
$2.80
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
85G-82370-20-00
$34.99
6
SEAL, PLUG CAP
8V0-82372-00-00
$4.82
7
C.D.I. UNIT ASSY
8BK-85540-01-00
Unavailable
8
BAND
2A7-85546-00-00
Unavailable
9
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
10
RECTIFIER & REGULATOR ASSY
89A-81960-00-00
$95.99
11
NUT, NYLON
95707-06300-00
$3.50
12
COVER, CONNECTER
8Y0-82599-00-00
Unavailable
13
WIRE HARNESS ASSEMBLY
8BK-82590-10-00
Unavailable
14
WIRE HARNESS ASSEMBLY 2
8BK-82580-10-00
Unavailable
15
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
16
DAMPER
22F-2139X-00-00
Unavailable
17
PIPE,BREATHER
2RH-21826-00-00
Unavailable
18
GROMMET(3AA)
90480-12497-00
Unavailable
19
. SEAT, BATTERY
82L-82122-00-00
Unavailable
20
PLATE, BATTERY FITTING
8J4-82136-00-00
Unavailable
21
. SCREW, FITTING
8J4-82133-00-00
Unavailable
22
NUT, NYLON
95707-06300-00
$3.50
23
WIRE PLUS LEAD
84N-82115-00-00
Unavailable
24
BRACKET, BATTERY
89H-2199G-00-00
Unavailable
25
SHIELD, HEAT
8V0-2199H-00-00
Unavailable
26
FUSE HOLDER ASSY
8BE-82150-00-00
Unavailable
27
FUSE (10A)
42X-82151-00-00
Unavailable
28
. STARTER RELAY ASSY
8J9-81940-10-00
Unavailable
29
WASHER, SPRING
92907-06100-00
Unavailable
30
NUT(6TA)
95317-06600-00
Unavailable
31
NUT,SELF-LOCKING
95607-06200-00
Unavailable
32
BOLT, FLANGE
95817-06010-00
Unavailable
33
. BRACKET, BATTERY
8V0-82128-00-00
Unavailable
34
BOLT
97027-05010-00
Unavailable
35
WASHER(1RW)
92907-05600-00
Unavailable
36
CLAMP (3Y2)
90464-16039-00
Unavailable
37
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
38
CAP, KEY
526-82579-00-00
Unavailable
39
PILOT LIGHT ASSEMBLY 1
8V0-84301-00-00
Unavailable
40
. BULB (12V5W)
8V0-85353-00-00
Unavailable
41
SWITCH
8JD-82917-00-00
Unavailable
42
BUZZER
8CL-83383-00-00
Unavailable
43
NUT,SELF-LOCKING
95607-06200-00
Unavailable
44
PILOT LIGHT ASSY
88T-83530-01-00
Unavailable
45
BULB (12V3.4W)
123-83516-21-XX
Unavailable
46
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
47
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
