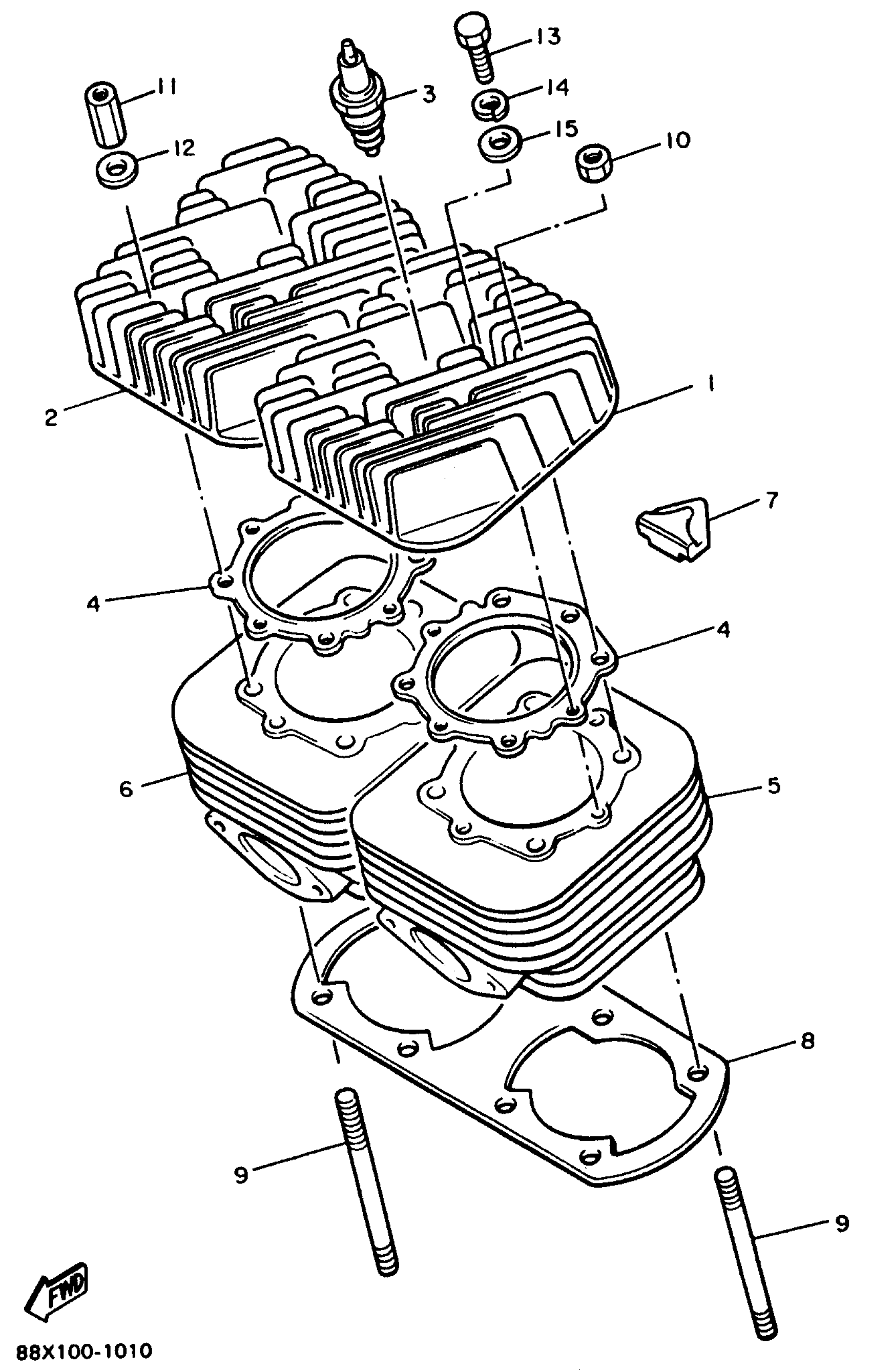

Yamaha VT480W (VENTURE XL) 8BK3 1996 CYLINDER Diagram

HEAD, CYLINDER 1

8V0-11111-01-00

Unavailable

HEAD, CYLINDER 2

8V0-11121-01-00

Unavailable

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

Unavailable

GASKET, CYLINDER HEAD 1

87F-11181-00-00

$33.99

CYLINDER 1

8V0-11311-01-00

Unavailable

CYLINDER 2

8V0-11321-01-00

Unavailable

SEAL, CYLINDER 1

8V0-11355-00-00

Unavailable

GASKET, CYLINDER

88F-11351-01-00

$19.99

BOLT, STUD

95617-08740-00

Unavailable

NUT, FLANGE(JN5)

95707-08500-00

$3.13

NUT (8H8)

90179-08269-00

$11.49

WASHER, PLATE (397)

90201-08100-00

$8.49

BOLT(8BC)

97017-06040-00

$9.49

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72
