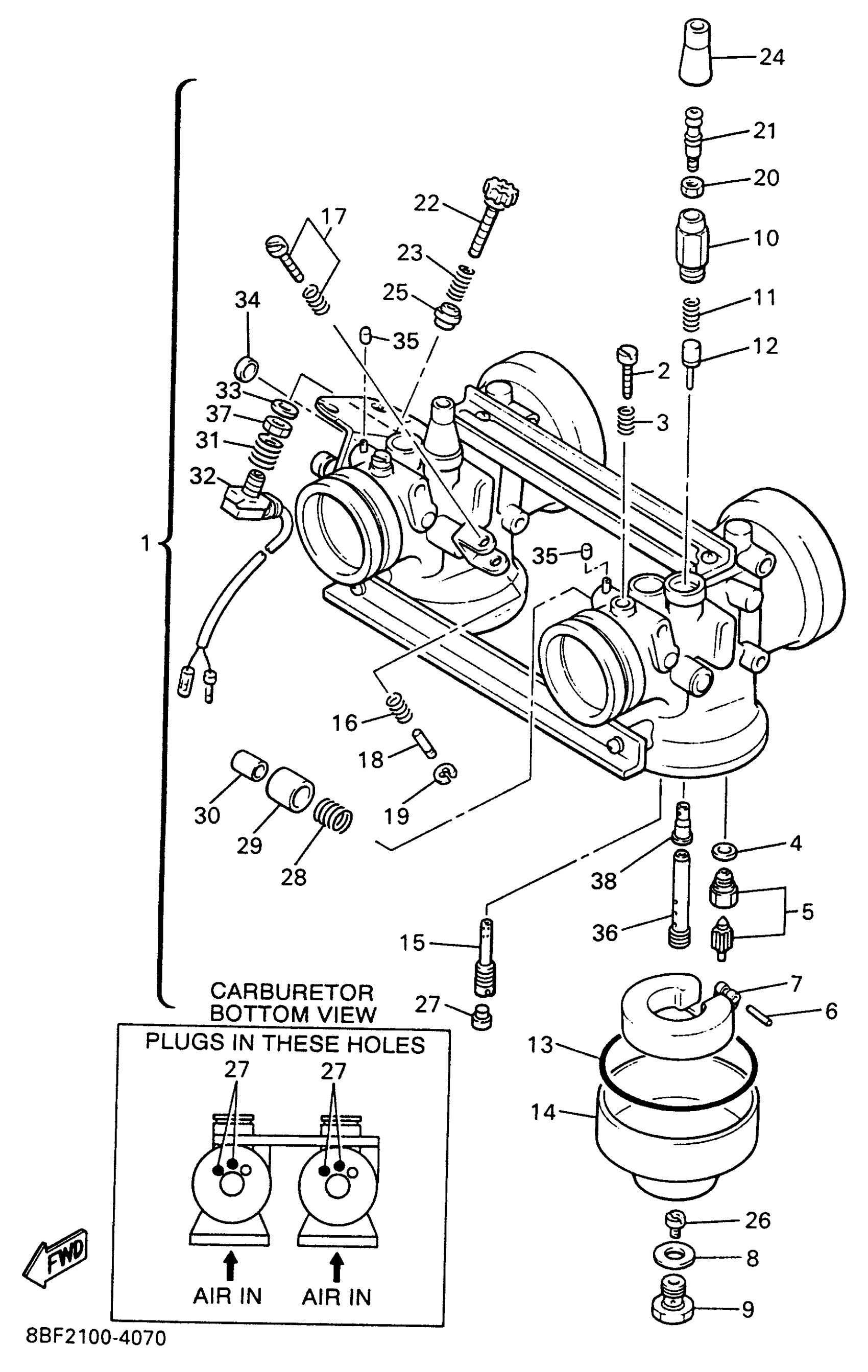

Yamaha VT480W (VENTURE XL) 8BK3 1996 CARBURETOR Diagram
#
1
CARBURETOR
80L-14100-04-00
Unavailable
2
SCREW, PILOT ADJUSTING
620-14211-00-00
$19.99
3
SPRING, AIR ADJUSTING
82A-14134-00-00
$8.99
4
WASHER, VALVE SEAT
214-14195-00-00
$7.99
5
VALVE SEAT ASSY
168-14190-15-00
$42.99
6
PIN,FLOAT
8M6-14186-00-00
$9.49
7
FLOAT ASSY
8M6-14185-00-00
$91.99
8
GASKET
286-14198-00-00
$9.99
9
HOLDER
8M6-14261-00-00
$46.99
10
CAP, PLUNGER
8G8-14174-00-00
$30.99
11
SPRING, PLUNGER
127-14135-00-00
$7.99
12
PLUNGER, STARTER
8G8-14171-00-00
$34.99
13
GASKET, FLOAT CHAMBER
8M6-14126-00-00
$18.99
14
BODY, FLOAT CHAMBER
8M6-14181-00-00
Unavailable
15
JET, PILOT (# 95)
193-14142-95-00
$14.49
16
. SPRING, THROTTLE STOP
3F7-14133-00-00
Unavailable
17
. STOP SCREW SET
12R-1490K-00-00
Unavailable
18
. ROD, PUSH
584-14992-00-00
Unavailable
19
. CLIP
256-14937-00-00
Unavailable
20
NUT, WIRE ADJUSTING
802-14161-00-00
Unavailable
21
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
22
SCREW,THROTTLE
80L-14122-00-00
Unavailable
23
SPRING
8X0-14500-00-00
Unavailable
24
CAP
8A7-14169-00-00
Unavailable
25
RING
8X0-14184-00-00
Unavailable
26
JET,MAIN(#120)
3G2-14231-24-00
Unavailable
26
JET, MAIN (#125)
3G2-14231-25-00
Unavailable
26
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
26
JET, MAIN (#135)
3G2-14231-27-00
Unavailable
26
JET, MAIN (#140)
3G2-14231-28-00
Unavailable
26
JET,MAIN #147.5
3G2-1423A-80-A0
Unavailable
26
JET,MAIN #152.5
3G2-1423A-81-00
Unavailable
26
JET MAIN (#143.8)
3G2-1423E-57-00
Unavailable
27
CAP
8V0-14118-00-00
Unavailable
28
. SPRING, THROTTLE 2
80L-14932-00-00
Unavailable
29
COLLAR
80L-14534-00-00
Unavailable
30
COLLAR
80L-14535-00-00
Unavailable
31
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
32
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
33
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
34
COLLAR
80L-14264-00-00
Unavailable
35
CAP
895-14169-00-00
Unavailable
36
. NOZZLE, MAIN
8Y2-14941-1A-00
Unavailable
36
. NOZZLE, MAIN
8Y2-14941-2A-00
Unavailable
36
NOZZLE, MAIN
8Y2-14941-3A-00
Unavailable
37
NUT
8X0-14358-00-00
Unavailable
38
. NOZZLE
80L-14489-00-00
Unavailable
