Description

Price

1

DISC, BRAKE

89X-25711-00-00

Unavailable

2

KEY, SLIDING(88K)

90281-07004-00

$13.99

3

CALIPER BODY COMP.1

87R-25730-01-00

$220.99

4

SCREW, ADJUSTING 1

86M-25738-00-00

$17.49

5

LEVER, BRAKE

87R-25726-01-00

Unavailable

6

SHIM, CALIPER

86M-25827-00-00

Unavailable

7

LOCK, ONE WAY 2

86M-25773-00-00

Unavailable

8

RATCHET, ADJUSTING

86M-25771-00-00

$16.49

9

COVER

86M-25772-00-00

Unavailable

10

BOLT, CALIPER

86M-25818-00-00

Unavailable

11

BRACKET, CALIPER

87R-25721-00-00

$34.99

12

BOLT 3

86M-25826-00-00

$1.51

13

SPRING, RETURN

87R-25743-00-00

Unavailable

14

BRACKET, ADJUSTING

87R-25722-00-00

Unavailable

15

PLATE, BACK UP

86M-25733-00-00

Unavailable

16

BOLT, FITTING

86M-25833-00-00

Unavailable

17

PIN 2

86M-25744-00-00

Unavailable

18

BOLT, FLANGE

95817-10060-00

Unavailable

19

PAD, CALIPER 2

89J-25811-00-00

Unavailable

20

PAD, CALIPER 2

89J-25911-00-00

Unavailable

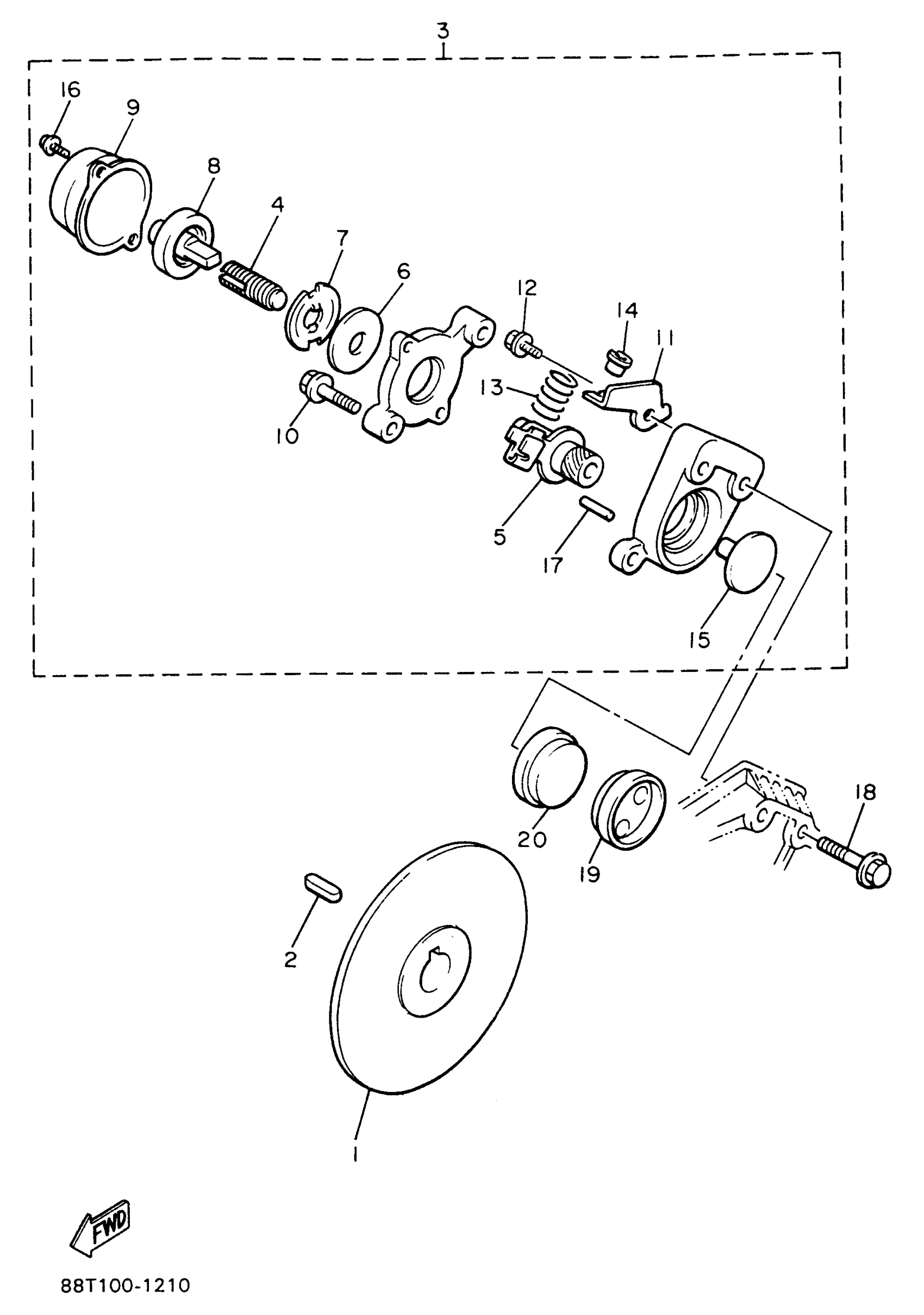

Yamaha VT480W (VENTURE XL) 8BK3 1996 BRAKE Diagram

DISC, BRAKE

KEY, SLIDING(88K)

CALIPER BODY COMP.1

SCREW, ADJUSTING 1

LEVER, BRAKE

SHIM, CALIPER

LOCK, ONE WAY 2

RATCHET, ADJUSTING

COVER

BOLT, CALIPER

BRACKET, CALIPER

BOLT 3

SPRING, RETURN

BRACKET, ADJUSTING

PLATE, BACK UP

BOLT, FITTING

PIN 2

BOLT, FLANGE

PAD, CALIPER 2

PAD, CALIPER 2
