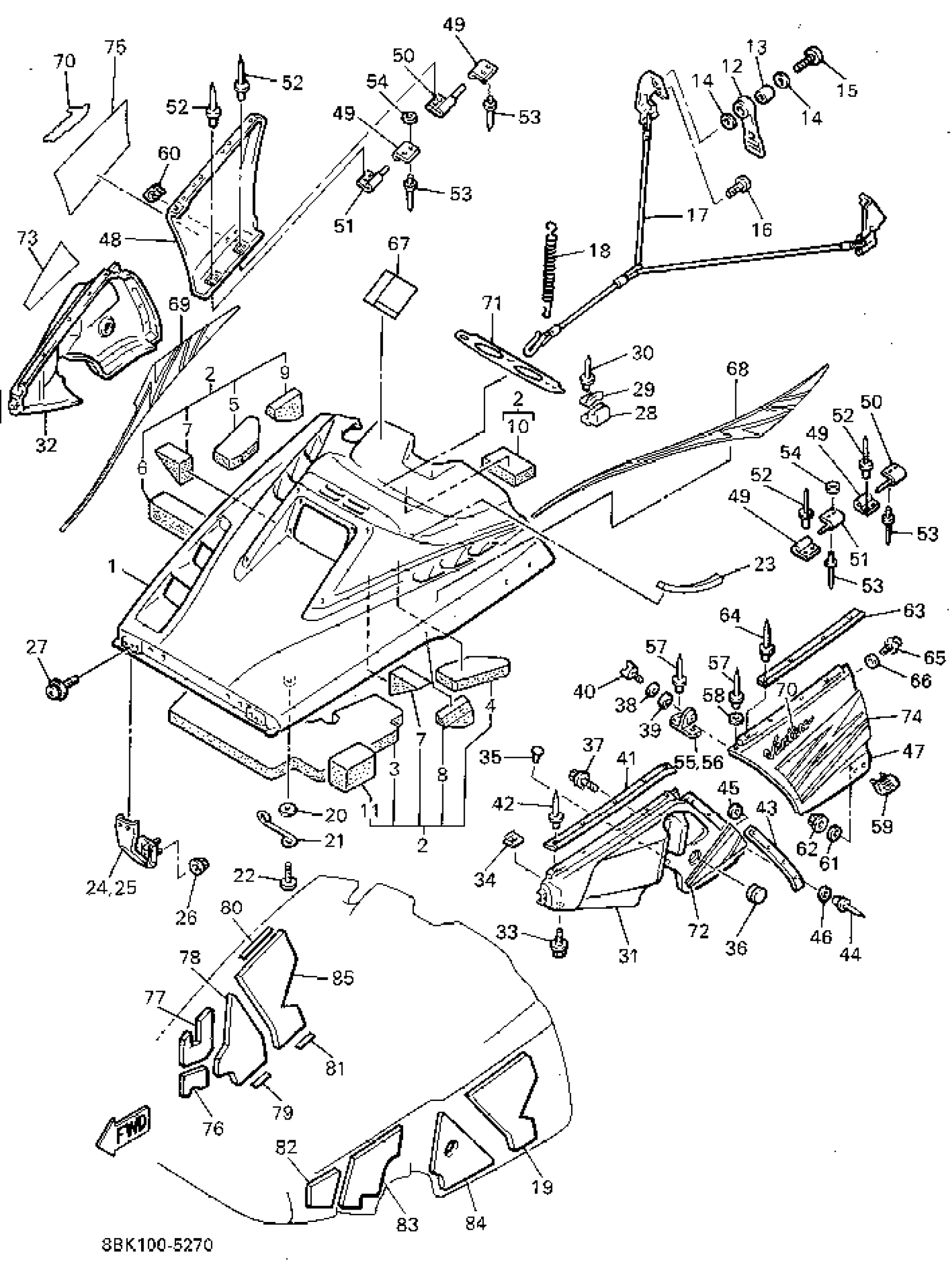

Yamaha VT480V (VENTURE XL) 8BK2 1995 SHROUD Diagram
#
1
SHROUD
8BK-77111-00-00
Unavailable
2
LINING SET
8BK-W7726-00-00
Unavailable
3
. LINING, SHROUD 1
88T-77261-00-00
Unavailable
4
. LINING, SHROUD 2
88T-77262-00-00
Unavailable
5
. LINING, SHROUD 3
88T-77263-00-00
Unavailable
6
. LINING, SHROUD 4
88T-77264-00-00
Unavailable
7
. LINING, SHROUD 7
88T-77267-00-00
Unavailable
8
. DAMPER, NOISE 18
8V0-77278-01-00
Unavailable
9
. DAMPER, NOISE 19
8V0-77279-00-00
Unavailable
10
. LINING, SHROUD 4
8H7-77264-00-00
Unavailable
11
DAMPER, NOISE 17
88T-77277-00-00
Unavailable
12
BODY, LATCH 1
8V0-77171-00-00
$21.99
13
COLLAR (420)
90387-06241-00
$8.49
14
WASHER, PLATE 8221447500
90201-06057-00
$5.60
15
SCREW, BINDING
98907-06030-00
$8.49
16
SCREW, BINDING
98907-06016-00
Unavailable
17
STOPPER, SHROUD
88T-77118-01-00
Unavailable
18
CLAMP, ROD
80L-77159-00-00
Unavailable
19
DAMPER, NOISE 15
8V0-77275-00-00
Unavailable
20
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
21
CLAMP
90465-20145-00
Unavailable
22
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
23
DAMPER 1
88T-77198-00-00
Unavailable
24
HINGE ASSY
88T-77140-00-00
Unavailable
25
HINGE ASSY 2
88T-7714A-00-00
Unavailable
26
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
27
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
28
STOPPER
8V0-77188-00-00
Unavailable
29
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
30
RIVET, BLIND (J10)
90267-40077-00
Unavailable
31
HOOD 1
8BK-21982-00-00
Unavailable
32
HOOD 2
8BK-21983-00-00
Unavailable
33
BOLT, WITH WASHER
90119-06226-00
Unavailable
34
NUT, SPRING (26H)
90183-06023-00
Unavailable
35
RIVET(81E)
90269-05055-00
Unavailable
36
GROMMET
90480-40577-00
Unavailable
37
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
38
WASHER, PLATE
90201-06020-00
Unavailable
39
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
40
BOLT, WING (36F)
90122-06020-00
Unavailable
41
BUSH, RUBBER 1
87F-77515-00-00
Unavailable
42
RIVET(81E)
90269-05055-00
Unavailable
43
TRIM 1
8V0-2196T-00-00
Unavailable
44
RIVET, BLIND
90267-40029-00
Unavailable
45
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
46
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
47
HOOD 3
8BK-2197H-00-00
Unavailable
48
HOOD 4
8BK-2198H-00-00
Unavailable
49
BRACKET, 1
88F-2194X-00-00
Unavailable
50
BRACKET 2
88R-2195X-00-00
Unavailable
51
BRACKET 3
88F-2196F-00-00
Unavailable
52
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
53
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
54
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
55
PROTECTOR 3 (LH)
87F-77553-01-00
Unavailable
56
PROTECTOR 4
87F-77554-01-00
Unavailable
57
RIVET, BLIND (8R4)
90267-48088-00
Unavailable
58
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
59
PROTECTOR 1
85L-77551-00-00
Unavailable
60
PROTECTOR 2
85L-77552-00-00
Unavailable
61
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
62
NUT, NYLON
95707-05300-00
Unavailable
63
BUSH, RUBBER 2
8V0-77516-01-00
Unavailable
64
RIVET(81E)
90269-05055-00
Unavailable
65
HOLDER, LATCH
8V0-77175-00-00
Unavailable
66
PLATE
4U5-2176E-00-00
Unavailable
67
LABEL, WARNING 3
88T-77763-10-00
Unavailable
68
ORNAMENT 1
8BK-77163-10-00
Unavailable
69
ORNAMENT 2
8BK-77164-10-00
Unavailable
70
EMBLEM 2
8BK-77142-10-00
Unavailable
71
ORNAMENT, INSTRUMENT PANEL 1
8AN-77715-00-00
Unavailable
72
EMBLEM 3
8BK-77353-10-00
Unavailable
73
EMBLEM 4
8BK-77354-10-00
Unavailable
74
EMBLEM 5
8BK-77355-10-00
Unavailable
75
EMBLEM 6
8BK-77356-10-00
Unavailable
76
LINING, SHROUD 5
87F-77265-01-00
Unavailable
77
LINING, SHROUD 6
87F-77266-01-00
Unavailable
78
DAMPER, NOISE 16
87F-77276-01-00
Unavailable
79
TAPE 1
8V0-7717E-01-00
Unavailable
80
TAPE 1
8V0-7717F-01-00
Unavailable
81
TAPE 3
82M-7717G-01-00
Unavailable
82
DAMPER, NOISE 12
87F-77272-00-00
Unavailable
83
DAMPER, NOISE 13
87F-77273-00-00
Unavailable
84
DAMPER, NOISE 14
87F-77274-00-00
Unavailable
85
LINING,SHROUD 6
8V0-77266-01-00
Unavailable
