- VT480U (VENTURE XL) 8BK1 1994
TRACK SUSPENSION 1

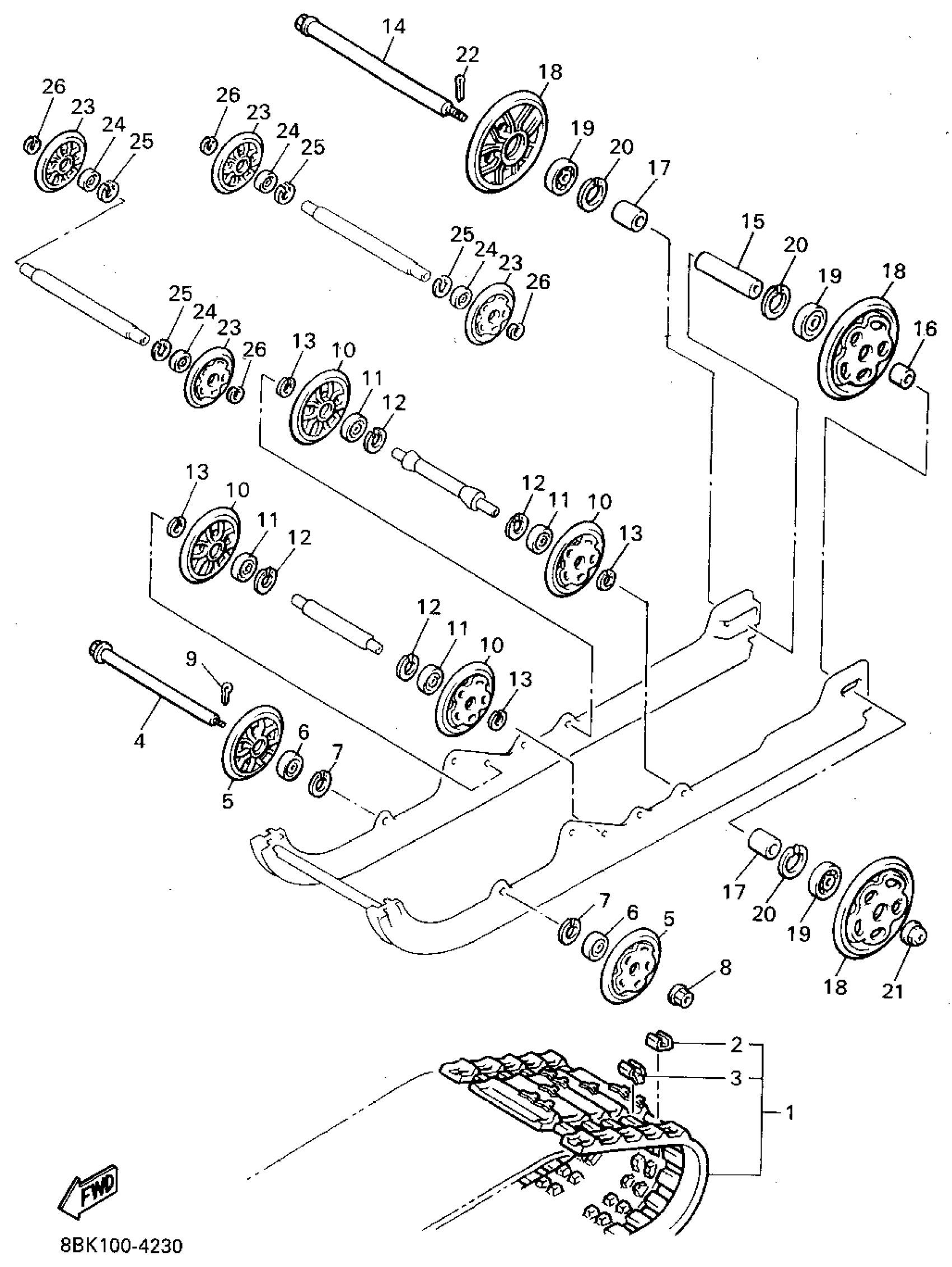

Yamaha VT480U (VENTURE XL) 8BK1 1994 TRACK SUSPENSION 1 Diagram
#
Description
Price
1
TRACK ASSEMBLY
82M-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
8A5-47115-00-00
Unavailable
4
SHAFT 5
82M-47487-00-00
Unavailable
5
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
6
BEARING(8AB)
93306-00444-00
$41.99
7
CIRCLIP(5U8)
99009-42500-00
$8.49
8
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
9
PIN, COTTER
91490-30030-00
$8.49
10
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
11
BEARING(8AB)
93306-00444-00
$41.99
12
CIRCLIP(5U8)
99009-42500-00
$8.49
13
CIRCLIP(1AR)
99009-20400-00
$8.49
14
REAR AXLE COMP.
8L8-47520-02-00
$89.99
15
COLLAR
90387-20023-00
Unavailable
16
COLLAR
90387-204R3-00
Unavailable
17
COLLAR
90387-20022-00
Unavailable
18
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
19
BEARING(8AE)
93306-20469-00
Unavailable
20
CIRCLIP(48Y)
99009-47500-00
Unavailable
21
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
22
PIN, COTTER
91490-30030-00
$8.49
23
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
24
BEARING(8AB)
93306-00444-00
$41.99
25
CIRCLIP(5U8)
99009-42500-00
$8.49
26
CIRCLIP(1AR)
99009-20400-00
$8.49
