Description

Price

1

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

2

ARMATURE ASSY

8Y3-81850-50-00

Unavailable

3

CLUTCH, OVER RUN

84N-81832-51-00

Unavailable

4

BRUSH 1

73A-81811-01-00

Unavailable

5

. GROMMET

73A-81829-50-00

Unavailable

6

. O-RING

73A-81847-00-00

Unavailable

7

NUT

4H7-81872-00-00

Unavailable

8

. GROMMET

73A-81829-00-00

Unavailable

9

BRUSH HOLDER ASSY

8L6-81840-51-00

$82.99

10

BRUSH 2

84N-81812-00-00

$13.49

11

SPRING, BRUSH

8L6-81813-50-00

Unavailable

12

O-RING

4H7-81844-00-00

Unavailable

13

RING

8L6-81834-50-00

$2.60

14

BOLT

84N-81826-00-00

$15.49

15

O-RING

8L6-81847-50-00

$3.28

16

SPRING, LEVER

8BB-81836-00-00

Unavailable

17

WASHER 1

4H7-81843-50-00

Unavailable

18

WASHER

8L6-81835-50-00

Unavailable

19

RING, STOP

8L6-81833-50-00

Unavailable

20

NUT, U FLANGE

95604-06200-00

Unavailable

21

WASHER, PLATE

8BB-8185A-00-00

Unavailable

22

WIRE, MINUS LEAD

89H-82116-00-00

Unavailable

23

WIRE,LEAD

8CL-82117-00-00

Unavailable

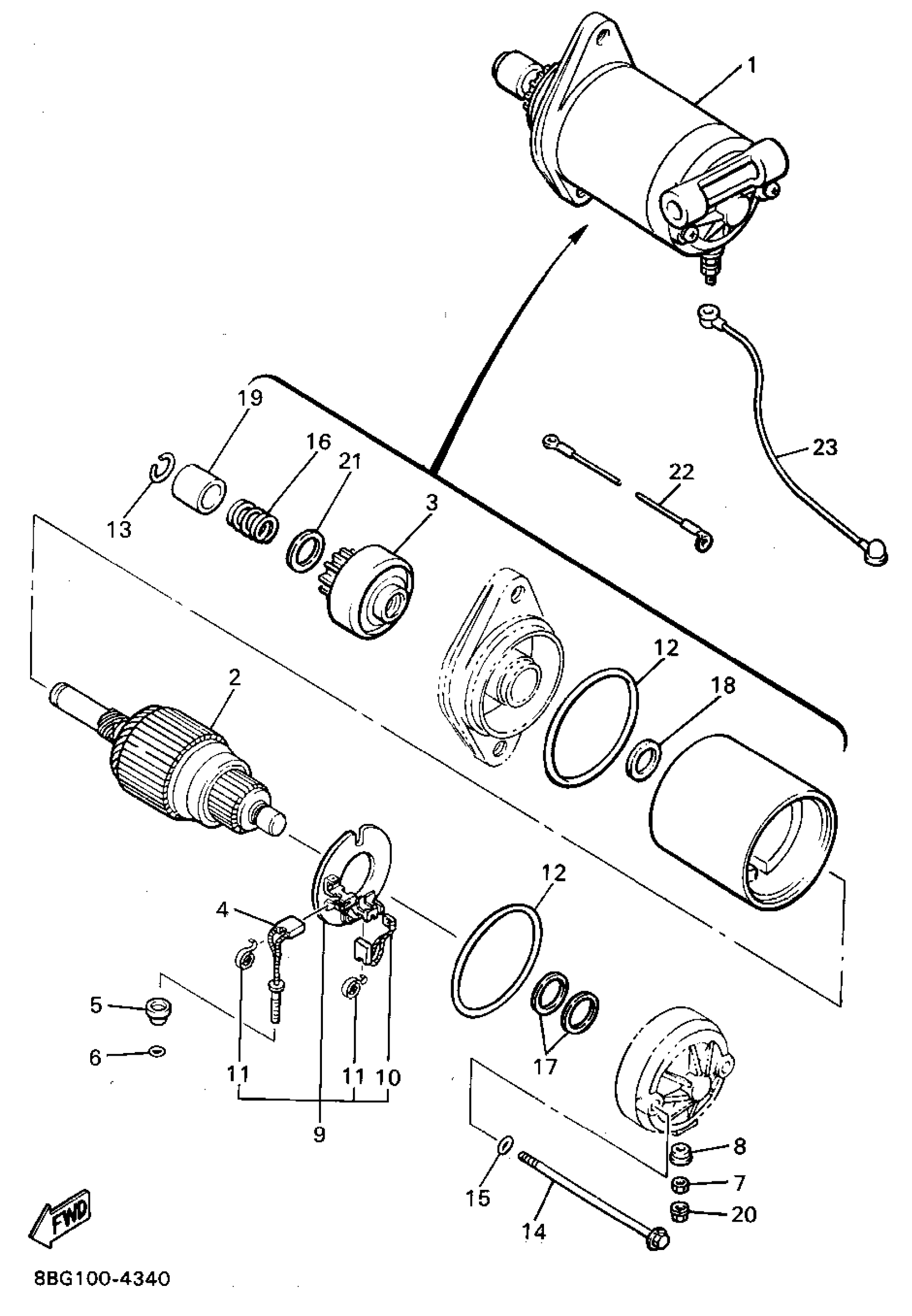

Yamaha VT480U (VENTURE XL) 8BK1 1994 STARTING MOTOR Diagram

STARTING MOTOR ASSY

ARMATURE ASSY

CLUTCH, OVER RUN

BRUSH 1

. GROMMET

. O-RING

NUT

. GROMMET

BRUSH HOLDER ASSY

BRUSH 2

SPRING, BRUSH

O-RING

RING

BOLT

O-RING

SPRING, LEVER

WASHER 1

WASHER

RING, STOP

NUT, U FLANGE

WASHER, PLATE

WIRE, MINUS LEAD

WIRE,LEAD
