- VT480U (VENTURE XL) 8BK1 1994
ELECTRICAL 1

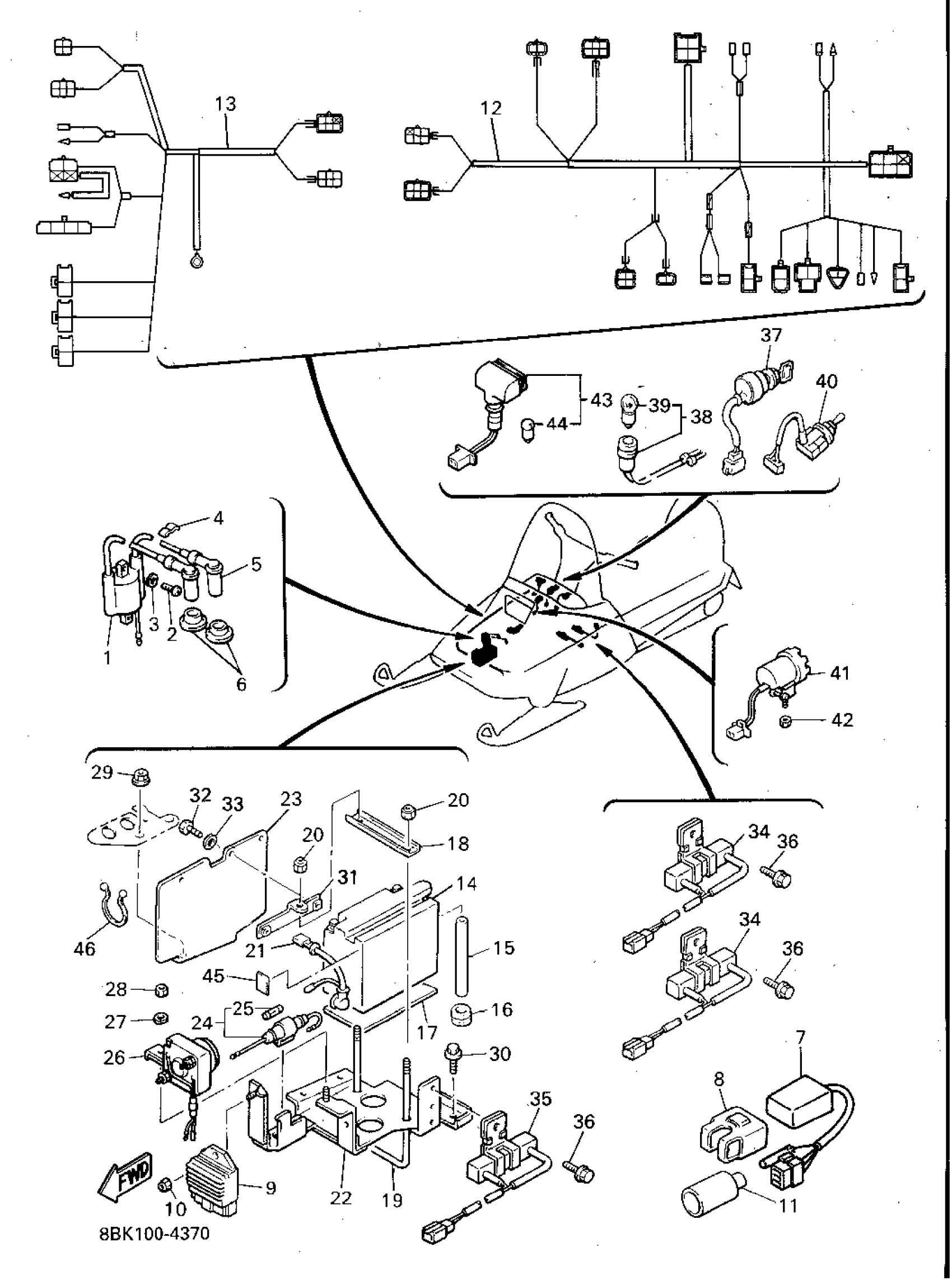

Yamaha VT480U (VENTURE XL) 8BK1 1994 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8AB-82310-07-00
$85.99
2
SCREW PAN HEAD
98580-06020-00
$8.49
3
WASHER, SPRING
92995-06100-00
Unavailable
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
85G-82370-20-00
$34.99
6
SEAL, PLUG CAP
8V0-82372-00-00
$4.82
7
C.D.I. UNIT ASSY
8BK-85540-01-00
Unavailable
8
BAND
2A7-85546-00-00
Unavailable
9
RECTIFIER & REGULATOR ASSY
89A-81960-00-00
$95.99
10
NUT, NYLON
95707-06300-00
$3.50
11
COVER, CONNECTER
8Y0-82599-00-00
Unavailable
12
WIRE HARNESS ASSEMBLY
8BK-82590-00-00
Unavailable
13
WIRE HARNESS ASSEMBLY 2
8BK-82580-00-00
Unavailable
14
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
15
PIPE,BREATHER
2RH-21826-00-00
Unavailable
16
GROMMET(3AA)
90480-12497-00
Unavailable
17
. SEAT, BATTERY
82L-82122-00-00
Unavailable
18
PLATE, BATTERY FITTING
8J4-82136-00-00
Unavailable
19
. SCREW, FITTING
8J4-82133-00-00
Unavailable
20
NUT, NYLON
95707-06300-00
$3.50
21
WIRE PLUS LEAD
84N-82115-00-00
Unavailable
22
BRACKET, BATTERY
89H-2199G-00-00
Unavailable
23
SHIELD, HEAT
8V0-2199H-00-00
Unavailable
24
FUSE HOLDER ASSY
8BE-82150-00-00
Unavailable
25
FUSE (10A)
42X-82151-00-00
Unavailable
26
. STARTER RELAY ASSY
8J9-81940-10-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
NUT, U FLANGE
95604-06200-00
Unavailable
29
NUT, U FLANGE
95604-06200-00
Unavailable
30
BOLT, FLANGE
95812-06010-00
Unavailable
31
. BRACKET, BATTERY
8V0-82128-00-00
Unavailable
32
BOLT (682)
97095-05010-00
Unavailable
33
WASHER, PLAIN (646)
92990-05600-00
Unavailable
34
RESISTOR ASSEMBLY
89H-85370-00-00
Unavailable
35
RESISTOR ASY
89M-85370-00-00
Unavailable
36
BOLT, FLANGE
95812-06010-00
Unavailable
37
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
38
PILOT LIGHT ASSEMBLY 1
8V0-84301-00-00
Unavailable
39
. BULB (12V5W)
8V0-85353-00-00
Unavailable
40
SWITCH
88H-82917-00-00
Unavailable
41
BUZZER
88T-83383-00-00
Unavailable
42
NUT, U FLANGE
95604-06200-00
Unavailable
43
PILOT LIGHT ASSEMBLY
88T-83530-00-00
Unavailable
44
BULB (12V-3.4W)
123-83516-21-00
Unavailable
45
DAMPER
22F-2139X-00-00
Unavailable
46
CLAMP (3Y2)
90464-16039-00
Unavailable
