- VT480TRW (VENTURE TR) 8CK1 1996
TRACK SUSPENSION 2

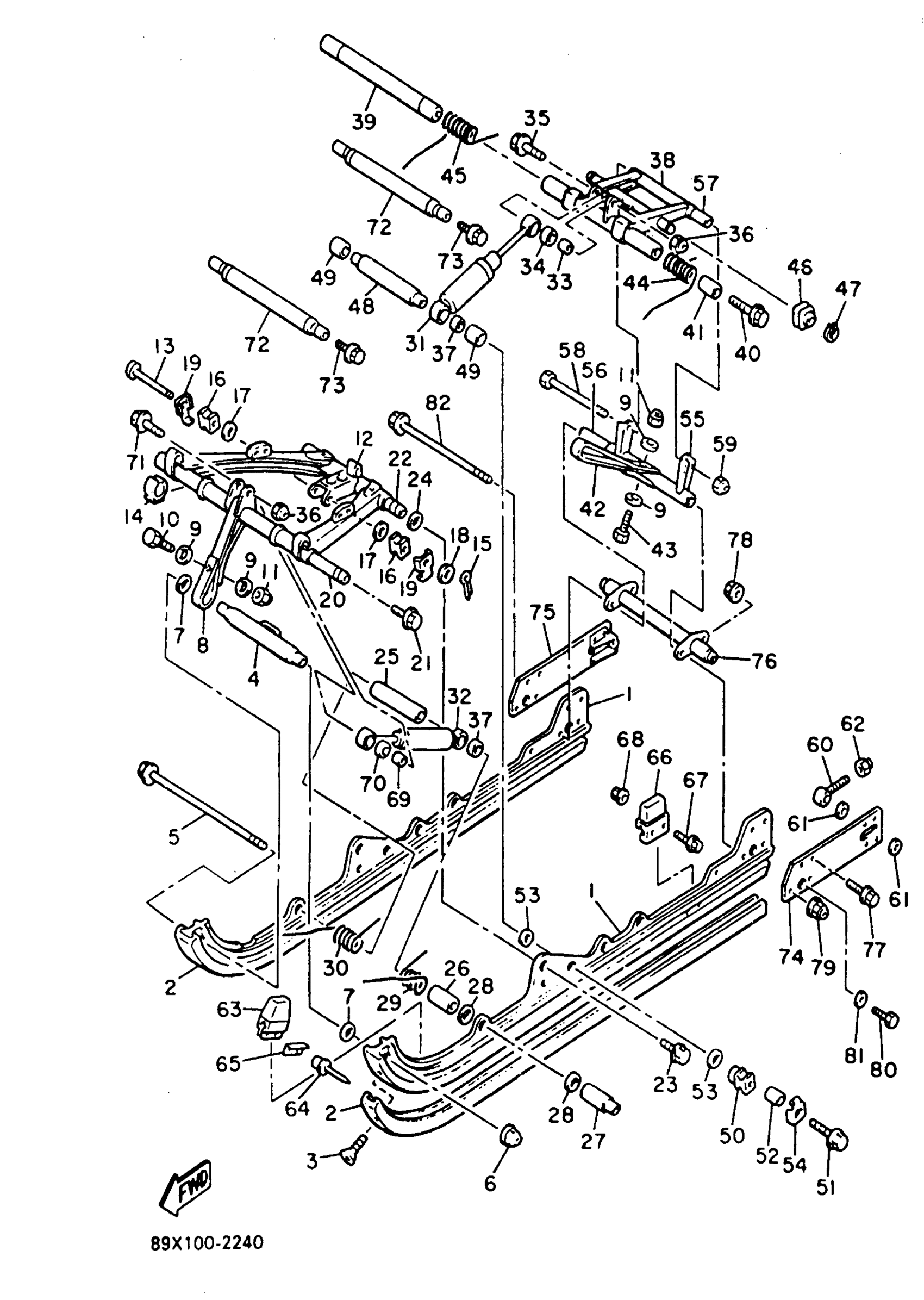

Yamaha VT480TRW (VENTURE TR) 8CK1 1996 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING 1
89X-47411-01-00
Unavailable
2
RUNNER, SLIDING 1
88T-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
BRACKET 1
8V0-47415-00-00
Unavailable
5
BOLT, WASHER BASED(51X)
90105-08346-00
$11.49
6
NUT, SELF-LOCKING
90185-08169-00
$8.49
7
WASHER(6TA)
92907-08600-00
$3.03
8
STOPPER 1
89X-47495-00-00
Unavailable
9
WASHER, PLATE
90201-06747-00
$8.49
10
BOLT, HEXAGON
97017-06025-00
$4.24
11
NUT, NYLON
95707-06300-00
$3.50
12
ARM,PIVOT 1
88K-47331-00-00
Unavailable
13
PIN, CLEVIS (90240-12107-00)
90240-12136-00
Unavailable
14
HOOK 2
8V0-47447-01-00
$21.99
15
PIN, COTTER
91490-30030-00
$8.49
16
HOOK 2
890-47447-00-00
Unavailable
17
WASHER PLATE 102181410000
90201-12474-00
Unavailable
18
WASHER(6TC)
92907-12200-00
Unavailable
19
PLATE, GUIDE
8V0-47467-00-00
Unavailable
20
SHAFT 1
8A5-47465-02-00
Unavailable
21
BOLT (8V0)
90109-10771-00
Unavailable
22
SHAFT 3
8K2-47485-00-00
Unavailable
23
BOLT, FLANGE
95817-10030-00
Unavailable
24
COLLAR (8U7)
90387-105G6-00
Unavailable
25
COLLAR
90387-160M7-00
Unavailable
26
COLLAR
8V0-47319-00-00
Unavailable
27
COLLAR
90387-166M8-00
Unavailable
28
WASHER, PLATE
90201-161E5-00
Unavailable
29
SPRING, FRONT 1
89X-47471-00-00
Unavailable
30
SPRING, FRONT 2
89X-47472-00-00
Unavailable
31
SHOCK ABSORBER
89X-47480-00-00
Unavailable
32
SHOCK ABSORBER 2
89X-47481-00-00
Unavailable
33
COLLAR(82M)
90387-084R5-00
Unavailable
34
BUSH, SOLID
90380-12161-00
Unavailable
35
BOLT, FLANGE
95817-08040-00
Unavailable
36
NUT, NYLON
95717-08300-00
Unavailable
37
BUSH, PIVOT
8V0-47371-00-00
Unavailable
38
ARM, PIVOT 2
88T-47332-00-00
Unavailable
39
SHAFT 2
88T-47475-00-00
Unavailable
40
BOLT (8V0)
90109-10771-00
Unavailable
41
COLLAR 1
88T-47365-00-00
Unavailable
42
STOPPER 1
8F2-47495-01-00
Unavailable
43
BOLT(21W)
97017-06035-00
Unavailable
44
SPRING, REAR 1
89X-47473-00-00
Unavailable
45
SPRING, REAR 2
89X-47474-00-00
Unavailable
46
HOOK 1
86S-47446-01-00
Unavailable
47
CIRCLIP(13H)
99009-14400-00
Unavailable
48
SHAFT 4
84J-47486-00-00
Unavailable
49
COLLAR
8V0-47338-00-00
Unavailable
50
HOOK 2
85K-47447-01-00
Unavailable
51
BOLT, FLANGE
95817-10060-00
Unavailable
52
COLLAR
90387-103U7-00
Unavailable
53
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
54
PLATE, GUIDE
84J-47467-00-00
Unavailable
55
BRACKET 3
8V0-47417-00-00
Unavailable
56
COLLAR
90387-08632-00
Unavailable
57
COLLAR
90387-084J9-00
Unavailable
58
BOLT,HEXAGON
97027-08165-00
Unavailable
59
NUT, NYLON
95717-08300-00
Unavailable
60
COLLAR 3
8K2-47479-01-00
Unavailable
61
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
62
NUT, NYLON
95707-10300-00
Unavailable
63
DAMPER 1
8V0-47456-00-00
Unavailable
64
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
65
PLATE, DAMPER
8K2-47458-01-00
Unavailable
66
DAMPER 1
89X-47456-00-00
Unavailable
67
BOLT, FLANGE
95817-06030-00
Unavailable
68
NUT,SELF-LOCKING
95607-06200-00
Unavailable
69
COLLAR
90387-081U4-00
Unavailable
70
BUSH, SOLID
90380-12169-00
Unavailable
71
BOLT, FLANGE(JN5)
95817-08045-00
Unavailable
72
IDLER
8L1-47461-00-00
Unavailable
73
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
74
FRAME, SLIDING
89X-W4741-00-00
Unavailable
75
FRAME, SLIDING
89X-W4741-00-00
Unavailable
76
BAR, SUSPENSION
89X-47451-00-00
Unavailable
77
BOLT, FLANGE
95817-10030-00
Unavailable
78
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
79
NUT, SELF-LOCKING
90185-08169-00
$8.49
80
BOLT (8K2)
90109-08559-00
Unavailable
81
WASHER (8G1)
90201-08681-00
Unavailable
82
BOLT, WASHER BASED
90105-08325-00
Unavailable
