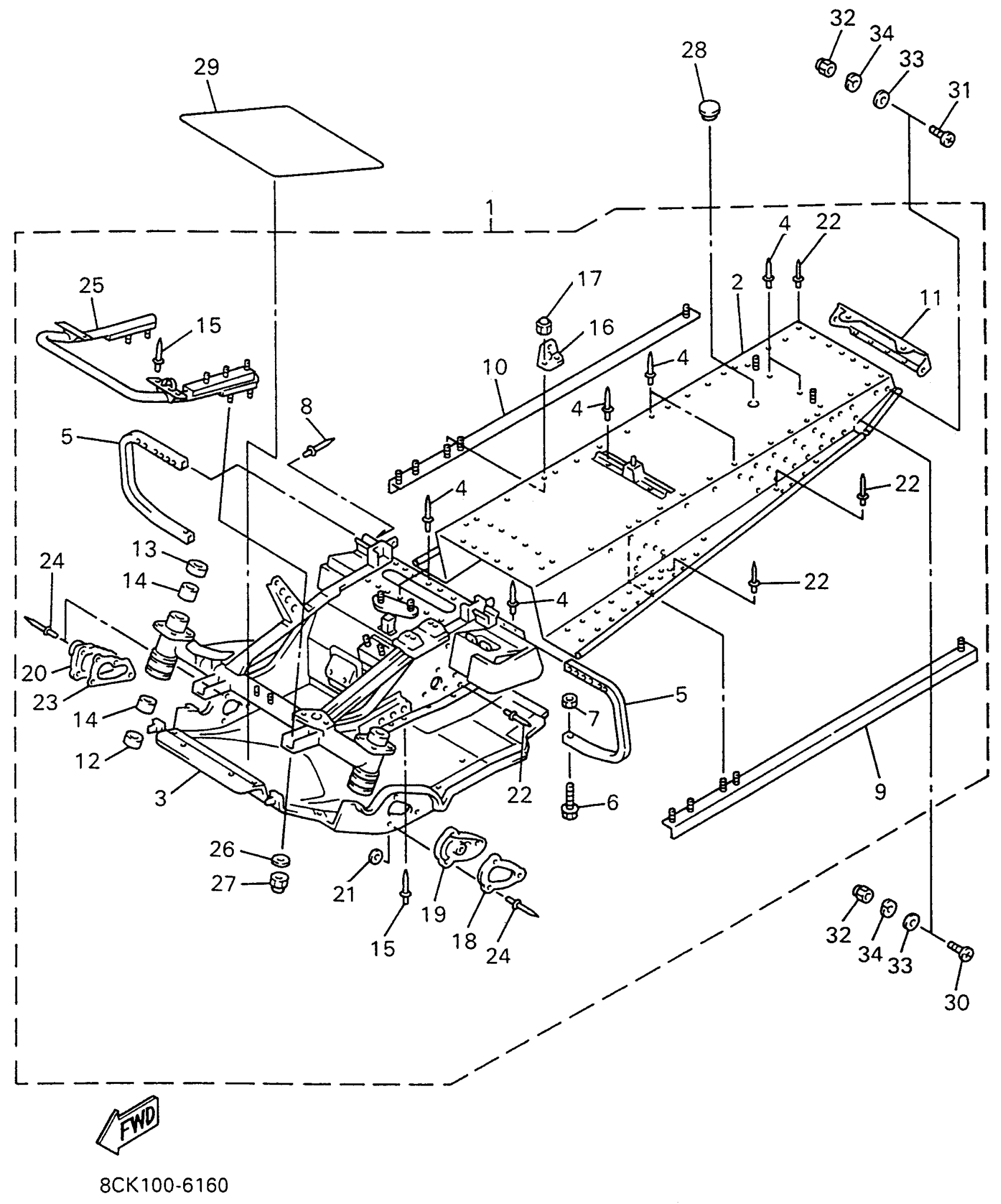

Yamaha VT480TRW (VENTURE TR) 8CK1 1996 FRAME Diagram
#
1
FRAME COMP.
8CK-21910-00-00
Unavailable
2
. PANEL, FRAME
8CK-21911-00-00
Unavailable
3
BELLY PAN
87F-21912-00-00
Unavailable
4
RIVET, BLIND
90267-48060-00
$8.49
5
. REINFORCEMENT, FOOTREST 1
8V0-21926-01-00
Unavailable
6
BOLT, FLANGE
95817-06030-00
$4.29
7
NUT, NYLON
95707-06300-00
$3.50
8
RIVET, BLIND
90267-47197-00
$2.39
9
. PATCH 4
8CK-21964-00-00
Unavailable
10
. PATCH 5
8CK-21965-00-00
Unavailable
11
. REINEFORCEMENT, FRAME REAR 1
8X0-21923-00-00
Unavailable
12
OIL SEAL (8M6)
93103-36117-00
$21.99
13
OIL SEAL (8M6)
93102-36232-00
$11.49
14
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
$11.49
15
RIVET, BLIND
90267-48018-00
$9.49
16
. BRACKET, SEAT FITTING
8V0-21946-00-00
Unavailable
17
NUT, NYLON
95707-06300-00
$3.50
18
SPACER
8M6-21998-00-00
Unavailable
19
COVER 1
8M6-2198F-00-00
Unavailable
20
. COVER 2
80L-2198G-00-00
Unavailable
21
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
22
RIVET(89R)
90269-04044-00
Unavailable
23
. WASHER 2
80L-77526-00-00
Unavailable
24
RIVET, BLIND
90267-40029-00
Unavailable
25
. BUMPER, FRONT 2
8CK-77512-00-00
Unavailable
26
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
27
NUT, NYLON
95717-08300-00
Unavailable
28
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
29
SHIELD, HEAT
87F-2199H-00-00
Unavailable
30
SCREW,BINDING
98907-08014-00
Unavailable
31
SCREW, BINDING
98907-08016-00
Unavailable
32
NUT, CAP
95307-08800-00
Unavailable
33
WASHER(6TC)
92907-08200-00
Unavailable
34
WASHER(JN5)
92907-08100-00
Unavailable
