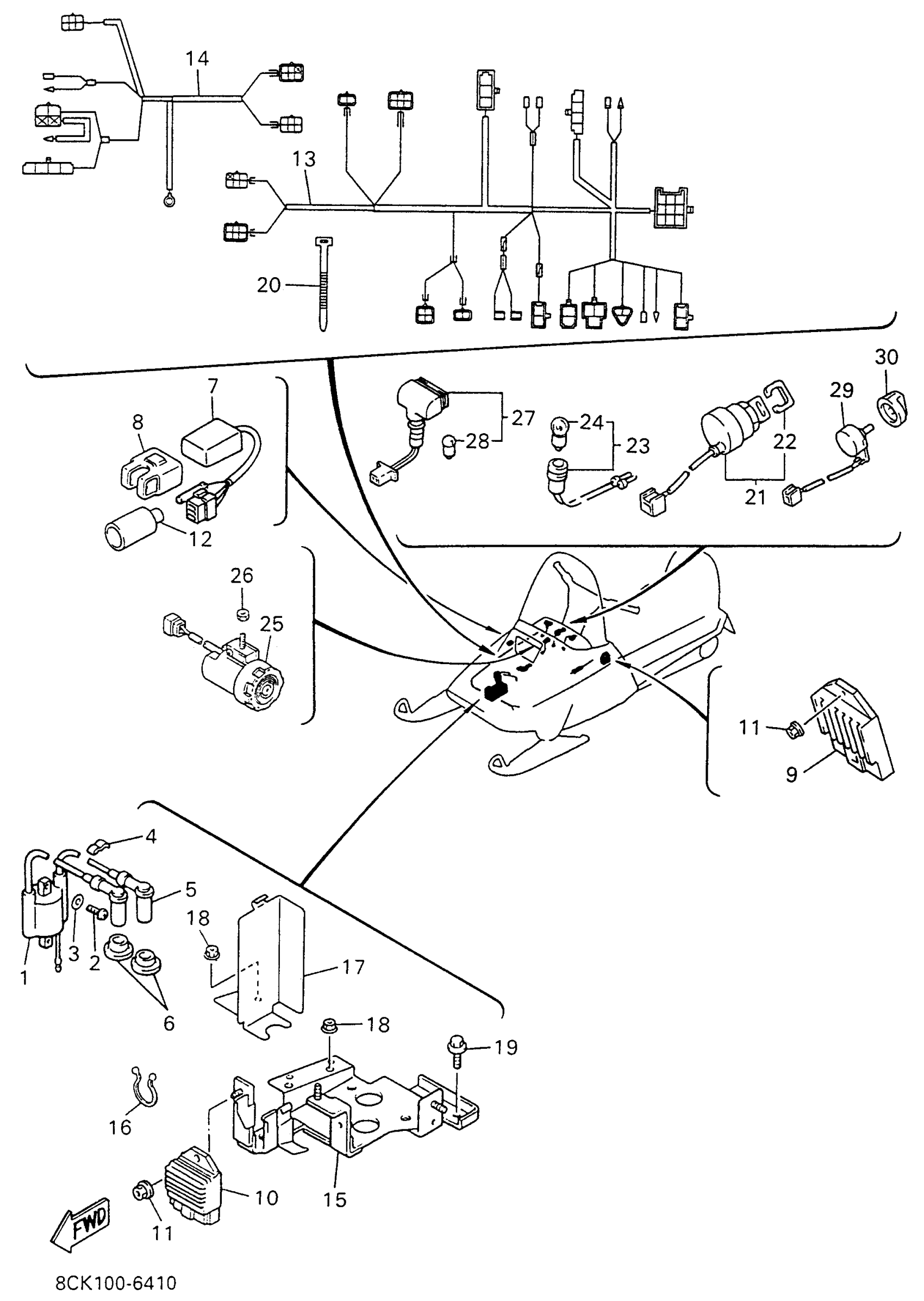

Yamaha VT480TRW (VENTURE TR) 8CK1 1996 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8AB-82310-07-00

$85.99

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

85G-82370-20-00

$34.99

6

SEAL, PLUG CAP

8V0-82372-00-00

$4.82

7

C.D.I. UNIT ASSY

8BK-85540-01-00

Unavailable

8

BAND

2A7-85546-00-00

Unavailable

9

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

10

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

10

TOOL

UNA-VAILA-BL-EI

Unavailable

11

NUT, NYLON

95707-06300-00

$3.50

12

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

13

WIRE HARNESS ASSEMBLY

8CK-82590-00-00

Unavailable

14

WIRE HARNESS ASSEMBLY 2

8BK-82580-10-00

Unavailable

15

BRACKET, BATTERY

89X-2199G-01-00

Unavailable

16

CLAMP (3Y2)

90464-16039-00

Unavailable

17

COVER 3

89X-2198J-00-00

Unavailable

18

NUT,SELF-LOCKING

95607-06200-00

Unavailable

19

BOLT, FLANGE

95817-06010-00

Unavailable

20

BAND

341-26397-01-00

Unavailable

21

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

22

CAP, KEY

526-82579-00-00

Unavailable

23

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

24

. BULB (12V5W)

8V0-85353-00-00

Unavailable

25

BUZZER

87L-83383-00-00

Unavailable

26

NUT,SELF-LOCKING

95607-06200-00

Unavailable

27

PILOT LIGHT ASSY

88T-83530-01-00

Unavailable

28

BULB (12V3.4W)

123-83516-21-XX

Unavailable

29

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

30

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable
