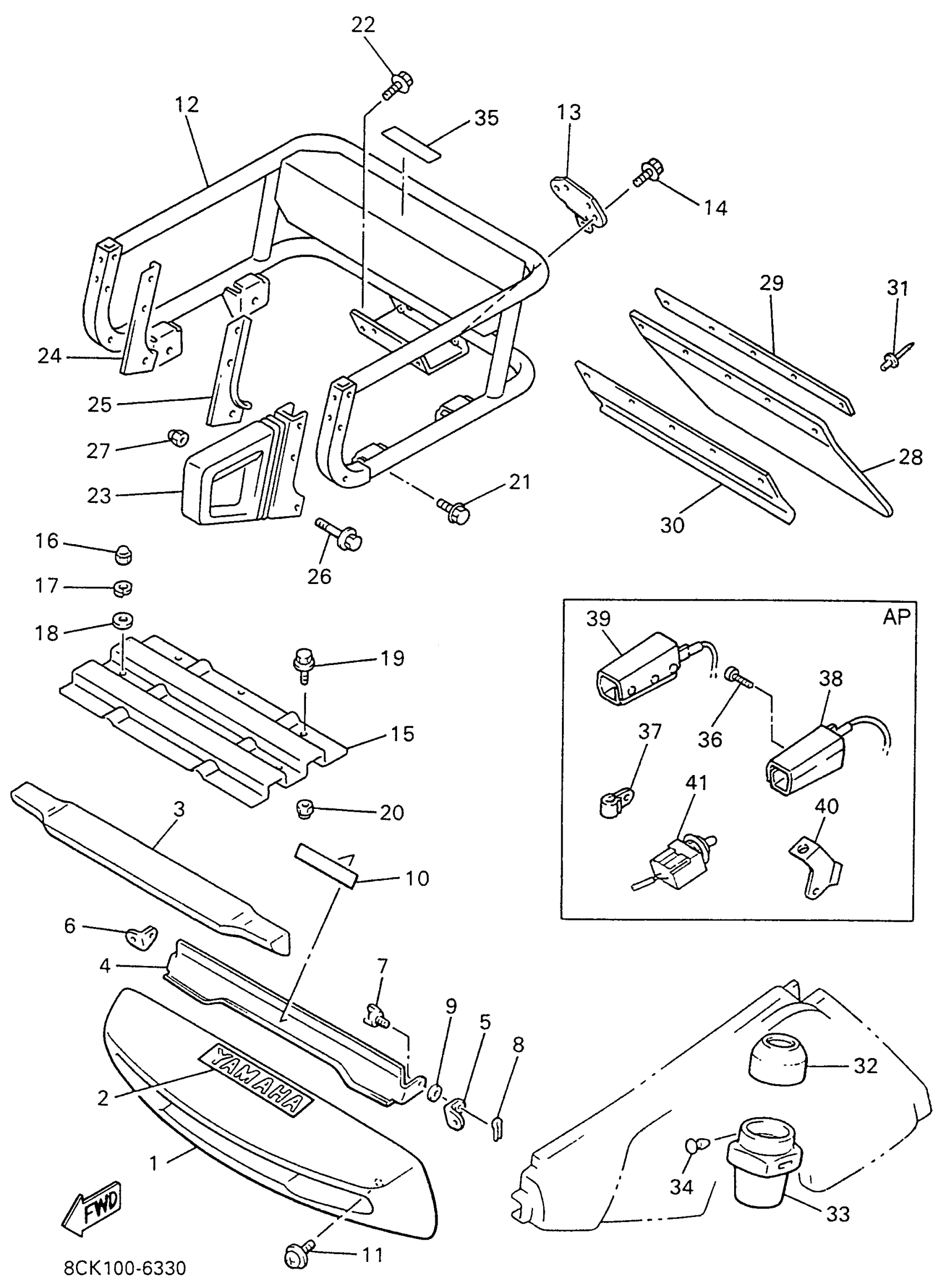

Yamaha VT480TRW (VENTURE TR) 8CK1 1996 BUMPER Diagram
#
1
BUMPER, FRONT 1
8BK-77511-00-00
Unavailable
2
EMBLEM, YAMAHA
99247-00120-00
$8.49
3
SPACER, BUMPER
8AN-77529-00-00
Unavailable
4
. PLATE 1
88T-77185-00-00
Unavailable
5
STAY 1
87F-77125-00-00
Unavailable
6
STAY 2
87F-77126-00-00
Unavailable
7
BOLT, WING(8W1)
90122-05022-00
$7.49
8
PIN, COTTER
91490-16020-00
Unavailable
9
. WASHER, PLATE
90202-05088-00
Unavailable
10
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
11
SCREW, W/WASHER (4L0)
90159-06060-00
$8.49
12
BUMPER, REAR 1
8CK-77541-00-00
Unavailable
13
BRACKET, HITCH 2
84R-77592-00-00
$34.99
14
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
15
PROTECTOR 4
8CK-77554-00-00
Unavailable
16
NUT, CAP
95307-08800-00
Unavailable
17
WASHER(JN5)
92907-08100-00
Unavailable
18
WASHER(6TA)
92907-08600-00
Unavailable
19
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
20
NUT, NYLON
95717-08300-00
Unavailable
21
BOLT, FLANGE
95817-08014-00
Unavailable
22
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
23
GRIP, ASSIST 1
8X0-77571-00-00
Unavailable
24
WASHER 1
8X0-77525-00-00
Unavailable
25
WASHER 2
8X0-77526-00-00
Unavailable
26
BOLT, FLANGE
95817-08040-00
Unavailable
27
NUT, CROWN(82U)
90176-08063-00
Unavailable
28
FLAP
88K-77595-20-00
Unavailable
29
STOPPER, FLAP
89X-77596-00-00
Unavailable
30
PROTECTOR 6
89X-77556-00-00
Unavailable
31
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
32
PROTECTOR 4
82M-77554-01-00
Unavailable
33
PROTECTOR 1
82M-77551-00-00
Unavailable
34
RIVET (8M6)
90269-04025-00
Unavailable
35
EMBLEM
89X-24897-00-00
Unavailable
36
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
37
CLAMP
90465-08028-00
Unavailable
38
ASSIST GRIP WARMER ASSEMBLY 1
88T-2474B-00-00
Unavailable
39
ASSIST GRIP WARMER ASSEMBLY 2
88T-2474C-00-00
Unavailable
40
BRACKET, SEAT
8CL-24718-00-00
Unavailable
41
SWITCH
8JD-82917-00-00
Unavailable
