Description

Price

1

STARTING MOTOR SET

8CK-W8180-00-KT

Unavailable

2

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

3

NUT(6TA)

95317-06600-00

$3.55

4

WIRE,LEAD

8CL-82117-00-00

Unavailable

5

WIRE, MINUS LEAD

89H-82116-00-00

Unavailable

6

DAMPER

22F-2139X-00-00

$7.99

7

PIPE,BREATHER

2RH-21826-00-00

Unavailable

8

GROMMET(3AA)

90480-12497-00

Unavailable

9

. SEAT, BATTERY

82L-82122-00-00

Unavailable

10

. PLATE, BATTERY FITTING

89X-82136-01-00

Unavailable

11

. SCREW, FITTING

8J4-82133-00-00

Unavailable

12

NUT, NYLON

95707-06300-00

$3.50

13

WIRE PLUS LEAD

84N-82115-00-00

Unavailable

14

. SHIELD, HEAT

85N-2199H-00-00

Unavailable

15

FUSE HOLDER ASSY

8BE-82150-00-00

$32.99

16

FUSE (10A)

42X-82151-00-00

Unavailable

17

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

NUT(6TA)

95317-06600-00

$3.55

20

BOLT, FLANGE

95817-06008-00

Unavailable

21

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

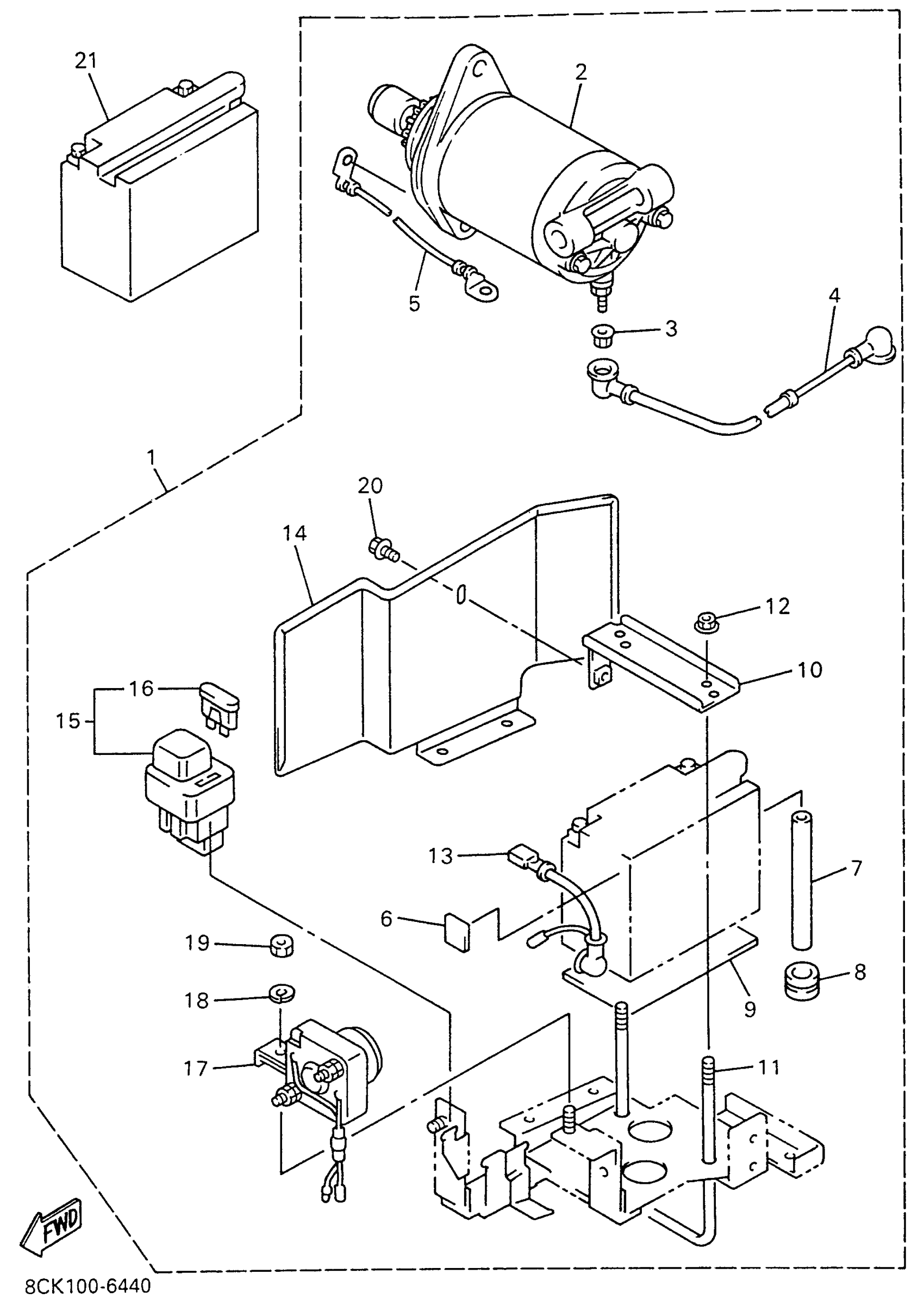

Yamaha VT480TRW (VENTURE TR) 8CK1 1996 ALTERNATE STARTER MOTOR KIT Diagram

STARTING MOTOR SET

STARTING MOTOR ASSY

NUT(6TA)

WIRE,LEAD

WIRE, MINUS LEAD

DAMPER

PIPE,BREATHER

GROMMET(3AA)

. SEAT, BATTERY

. PLATE, BATTERY FITTING

. SCREW, FITTING

NUT, NYLON

WIRE PLUS LEAD

. SHIELD, HEAT

FUSE HOLDER ASSY

FUSE (10A)

. STARTER RELAY ASSY

WASHER, SPRING

NUT(6TA)

BOLT, FLANGE

YB14LA2 YUASA BATTERY
