- VT480TRB (VENTURE TR ELECTRIC) 8CK3 1998
PUMP DRIVE GEAR

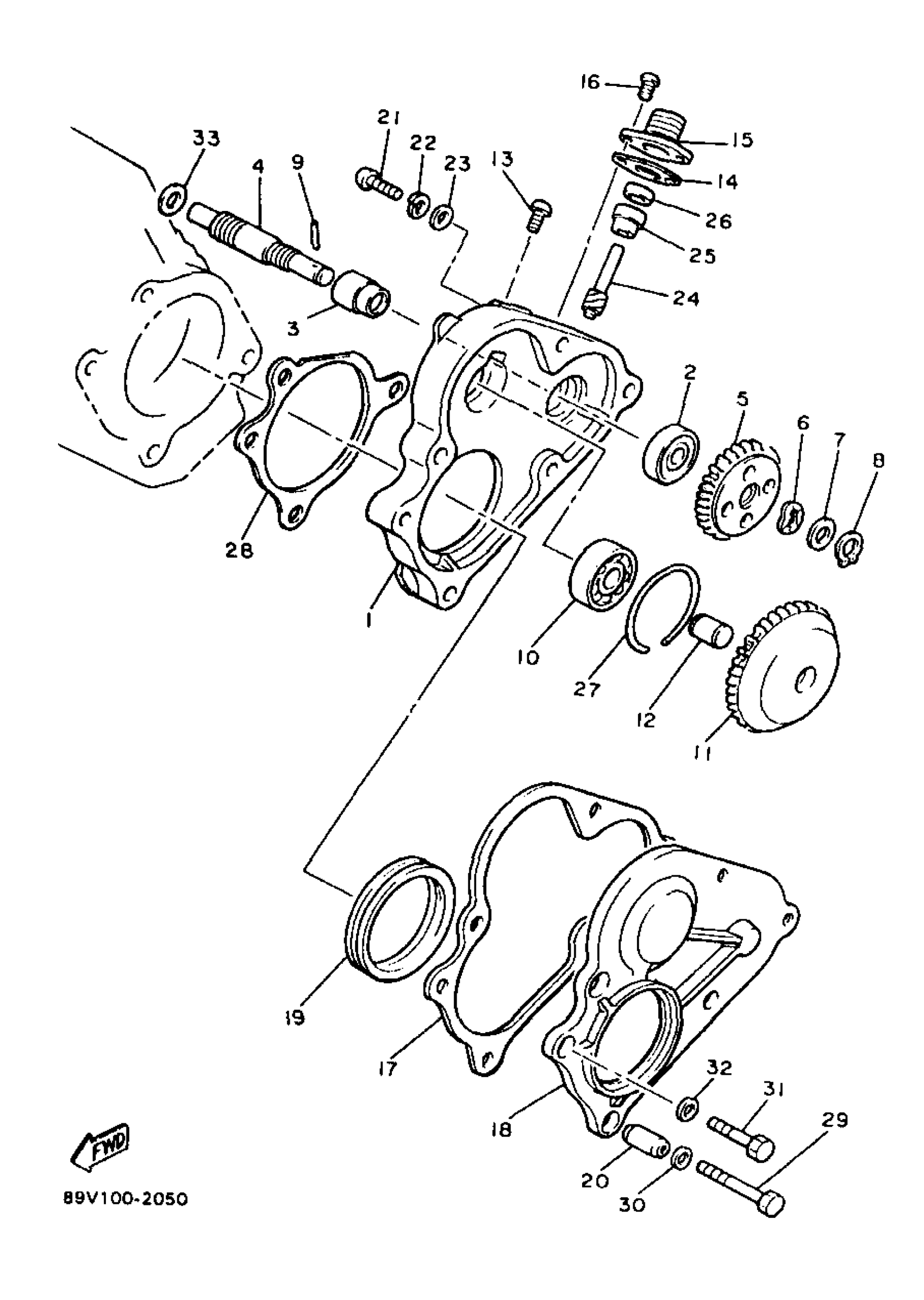

Yamaha VT480TRB (VENTURE TR ELECTRIC) 8CK3 1998 PUMP DRIVE GEAR Diagram
#
1
COVER, OIL PUMP
89F-15416-00-00
Unavailable
2
OIL SEAL (J10)
93101-10090-00
$8.49
3
METAL, WORM SHAFT OUTER
821-13176-00-00
$17.49
4
SHAFT, WORM
879-13175-00-00
Unavailable
5
GEAR, DRIVE 2
821-13188-00-00
Unavailable
6
WASHER, WAVE (137)
90206-11016-00
Unavailable
7
PLATE, CAM THRUST
137-13148-00-00
Unavailable
8
CIRCLIP(10W)
99009-10400-00
$4.73
9
PIN,DOWEL (137)
93603-22028-00
$3.76
10
BEARING (B6000RS)
93306-00003-00
Unavailable
11
GEAR, IDLE
8V0-13179-00-00
Unavailable
12
SHAFT, IDLE GEAR
8V0-13342-00-00
Unavailable
13
SCREW, PAN
98517-06012-00
$3.78
14
GASKET
821-17818-02-00
$6.99
15
CAP, HOUSING
821-17819-00-00
Unavailable
15
CAP, HOUSING
824-17819-00-00
Unavailable
16
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
17
GASKET 2
8V0-15466-03-00
Unavailable
18
COVER, OIL PUMP 2
89F-15426-00-00
Unavailable
19
OIL SEAL (8V0)
93104-52079-00
Unavailable
20
PIN, DOWEL(8AH)
91808-22019-00
Unavailable
21
SCREW, PAN HEAD
98517-05020-00
Unavailable
22
WASHER(3SX)
92907-05100-00
Unavailable
23
WASHER(1RW)
92907-05600-00
Unavailable
24
GEAR, DRIVEN (10T)
813-17841-00-00
Unavailable
25
BUSH, DRIVEN GEAR OUTER
821-17843-00-00
Unavailable
26
OIL SEAL (6X12X4-821)
93104-06033-00
Unavailable
27
CIRCLIP, INNER
93450-28098-00
Unavailable
28
GASKET, OIL PUMP COVER 1
8V0-15456-03-00
Unavailable
29
BOLT(21W)
97017-06035-00
Unavailable
30
WASHER(6TA)
92907-06600-00
Unavailable
31
BOLT, HEXAGON
97017-06025-00
Unavailable
32
WASHER(6TA)
92907-06600-00
Unavailable
33
WASHER, PLATE (1E7)
90201-08624-00
Unavailable
