Description

Price

1

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

2

NUT(6TA)

95317-06600-00

$3.55

3

WIRE,LEAD

8CL-82117-00-00

Unavailable

4

WIRE, MINUS LEAD

89H-82116-00-00

Unavailable

5

DAMPER

22F-2139X-00-00

$7.99

6

PIPE,BREATHER

2RH-21826-00-00

Unavailable

7

GROMMET(3AA)

90480-12497-00

Unavailable

8

. SEAT, BATTERY

82L-82122-00-00

Unavailable

9

. PLATE, BATTERY FITTING

89X-82136-01-00

Unavailable

10

. SCREW, FITTING

8J4-82133-00-00

Unavailable

11

NUT, NYLON

95707-06300-00

$3.50

12

WIRE, PLUS LEAD

81J-82115-00-00

Unavailable

13

. SHIELD, HEAT

85N-2199H-00-00

Unavailable

14

FUSE HOLDER ASSY

8BE-82150-00-00

$32.99

15

FUSE (10A)

42X-82151-00-00

$4.32

16

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

17

WASHER, SPRING

92907-06100-00

Unavailable

18

NUT(6TA)

95317-06600-00

$3.55

19

BOLT, FLANGE

95817-06008-00

Unavailable

20

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

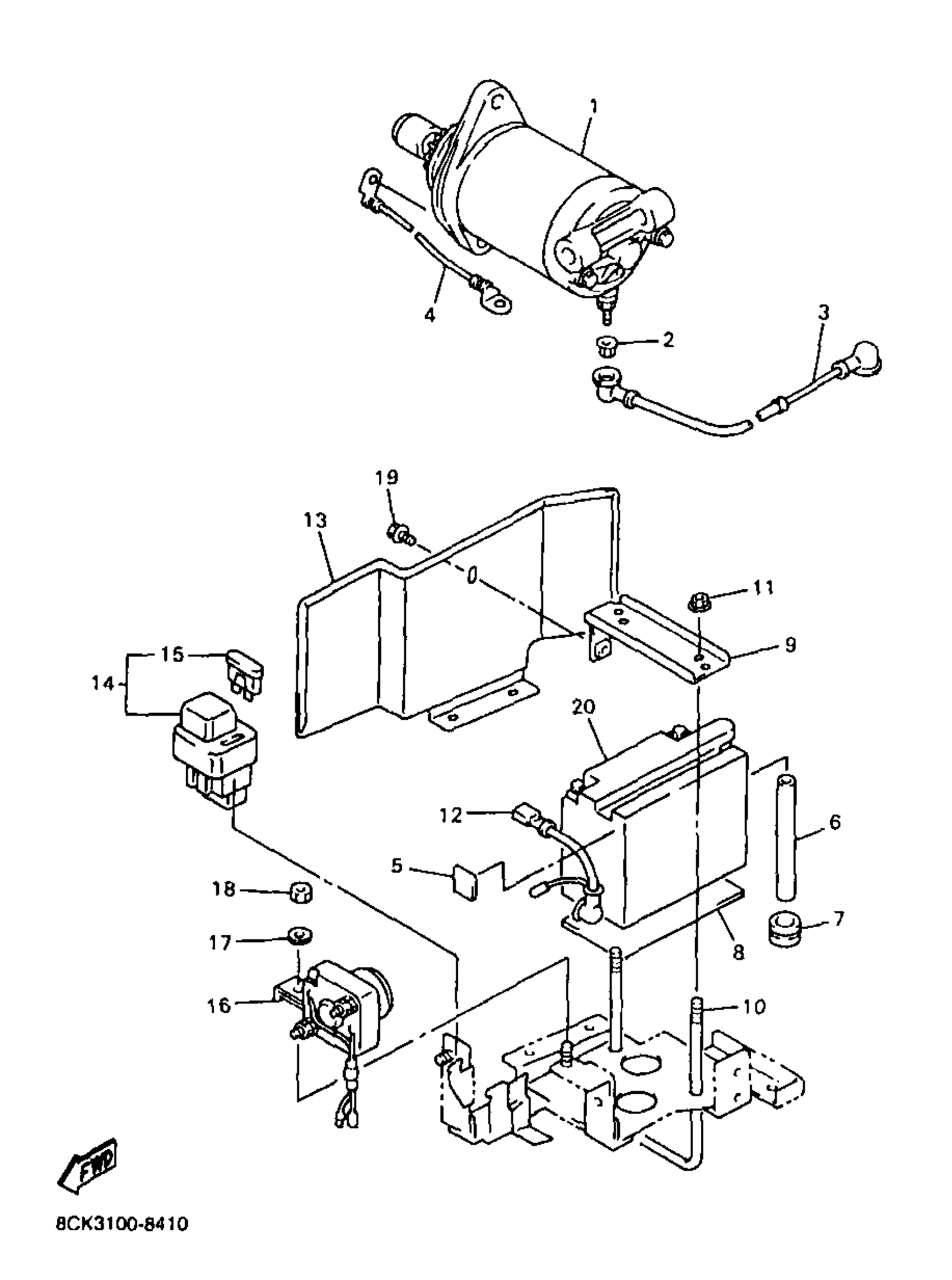

Yamaha VT480TRB (VENTURE TR ELECTRIC) 8CK3 1998 ELECTRICAL 2 Diagram

STARTING MOTOR ASSY

NUT(6TA)

WIRE,LEAD

WIRE, MINUS LEAD

DAMPER

PIPE,BREATHER

GROMMET(3AA)

. SEAT, BATTERY

. PLATE, BATTERY FITTING

. SCREW, FITTING

NUT, NYLON

WIRE, PLUS LEAD

. SHIELD, HEAT

FUSE HOLDER ASSY

FUSE (10A)

. STARTER RELAY ASSY

WASHER, SPRING

NUT(6TA)

BOLT, FLANGE

YB14LA2 YUASA BATTERY
