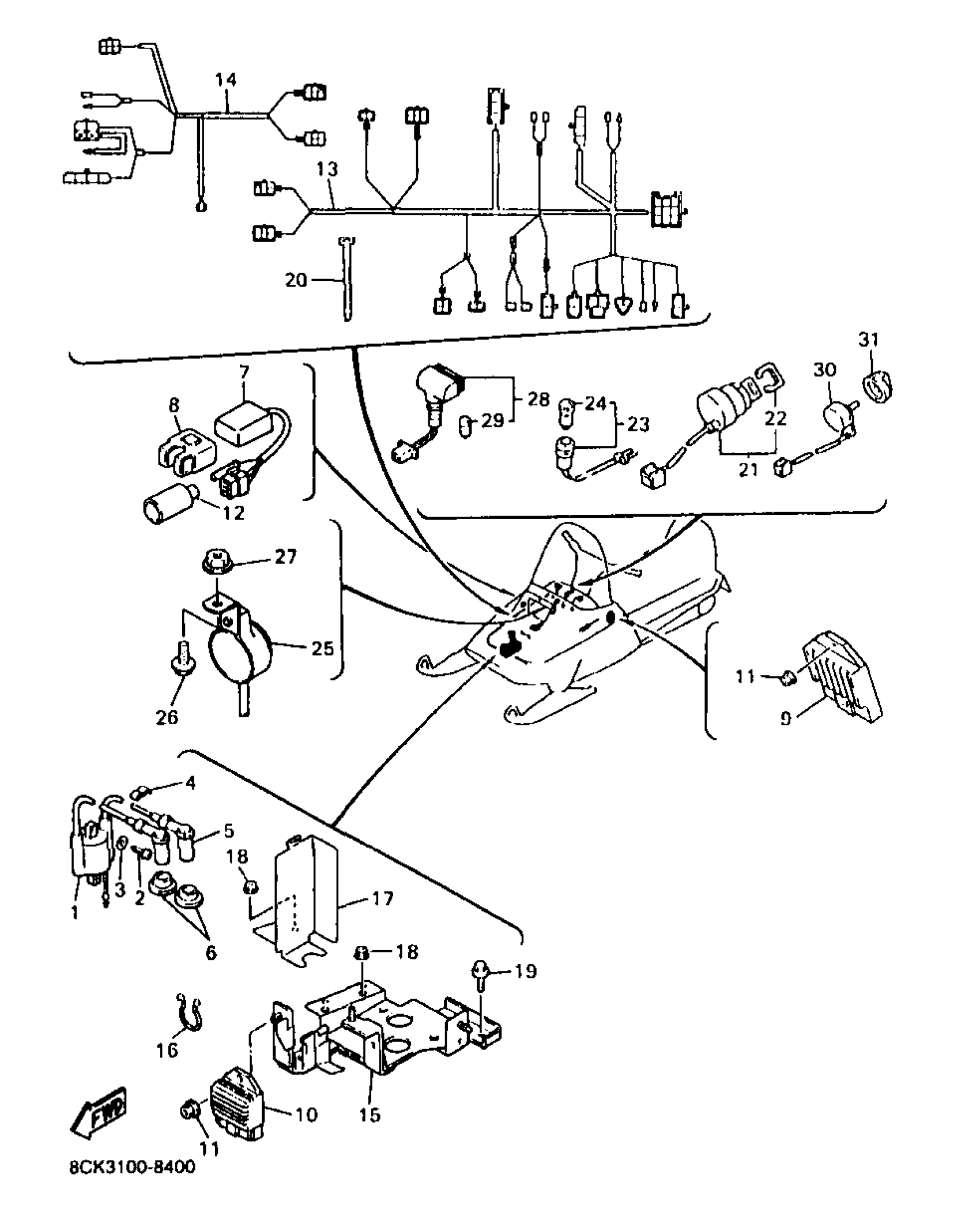

Yamaha VT480TRB (VENTURE TR ELECTRIC) 8CK3 1998 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8AB-82310-07-00
$85.99
2
SCREW PAN HEAD
98580-06020-00
$8.49
3
WASHER, PLAIN (646)
92990-06600-00
$2.80
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
85G-82370-20-00
$34.99
6
SEAL, PLUG CAP
8V0-82372-00-00
$4.82
7
C.D.I. UNIT ASSY
8BK-85540-01-00
Unavailable
8
BAND
2A7-85546-00-00
Unavailable
9
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
10
RECTIFIER & REGULATOR ASSY
89A-81960-00-00
$95.99
11
NUT, NYLON
95707-06300-00
$3.50
12
COVER, CONNECTER
8Y0-82599-00-00
Unavailable
13
WIRE HARNESS ASSEMBLY
8BK-82590-10-00
Unavailable
14
WIRE HARNESS ASSEMBLY 2
8BK-82580-10-00
Unavailable
15
BRACKET, BATTERY
89X-2199G-01-00
Unavailable
16
CLAMP (3Y2)
90464-16039-00
Unavailable
17
COVER 3
89X-2198J-00-00
Unavailable
18
NUT,SELF-LOCKING
95607-06200-00
Unavailable
19
BOLT, FLANGE
95817-06010-00
Unavailable
20
BAND
341-26397-01-00
Unavailable
21
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
22
CAP, KEY
526-82579-00-00
Unavailable
23
PILOT LIGHT ASSEMBLY 1
8V0-84301-00-00
Unavailable
24
. BULB (12V5W)
8V0-85353-00-00
Unavailable
25
BUZZER
8CL-83383-01-00
Unavailable
26
BOLT, FLANGE
95817-06016-00
Unavailable
27
NUT,SELF-LOCKING
95607-06200-00
Unavailable
28
PILOT LIGHT ASSY
88T-83530-01-00
Unavailable
29
BULB (12V-3.4W)
123-83516-21-00
Unavailable
30
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
31
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
