- VT480TRA (VENTURE TR) 8CK2 1997
TRACK DRIVE 2

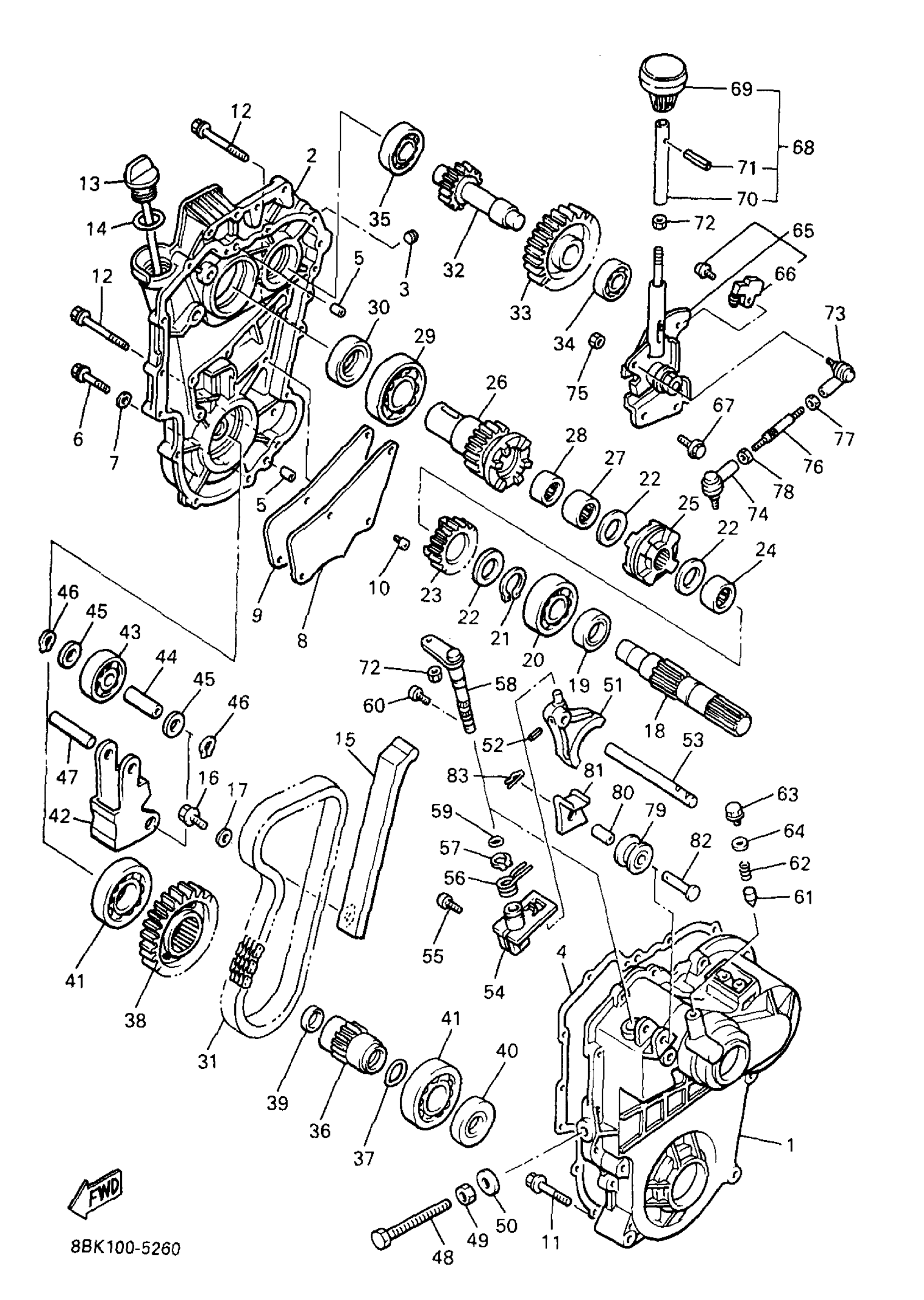

Yamaha VT480TRA (VENTURE TR) 8CK2 1997 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
88T-47541-00-00
Unavailable
2
CAP,HOUSING
88T-47543-01-00
Unavailable
3
PLUG, TAPER(88T)
90336-08026-00
$1.06
4
GASKET
88T-47592-01-00
$25.99
5
PIN, DOWEL(3VD)
99530-10114-00
$2.55
6
BOLT, FLANGE
95817-06035-00
$7.49
7
WASHER, SEAL (7G5)
90210-06006-00
$9.49
8
PLATE
88T-47591-00-00
Unavailable
9
GASKET
88T-47544-00-00
Unavailable
10
SCREW, BINDING
98907-06008-00
$8.49
11
BOLT, FLANGE
95817-08040-00
$7.49
12
BOLT, FLANGE(JN5)
95817-08070-00
$3.76
13
LEVEL, OIL
88T-47546-00-00
Unavailable
14
O-RING (437)
93210-24235-00
$7.49
15
GUIDE, STOPPER 1
88T-12231-00-00
Unavailable
16
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
17
WASHER(6TC)
92907-08200-00
Unavailable
18
AXLE, DRIVE
88T-17421-00-00
Unavailable
19
OIL SEAL (22X42X7)
93102-22014-00
Unavailable
20
BEARING(1LX)
93306-37204-00
Unavailable
21
CIRCLIP(1EY)
99009-22400-00
Unavailable
22
WASHER, PLATE(83R)
90201-224L4-00
Unavailable
23
GEAR, REVERSE PINION 1
88T-17143-00-00
Unavailable
24
BEARING, CYLINDRICAL(83R)
93311-42265-00
Unavailable
25
DOG, TRANSMISSION SHIFT
88T-17492-01-00
Unavailable
26
SPROCKET, CHAIN DRIVE
88T-17682-11-00
Unavailable
27
BEARING, CYLINDRICAL (23X)
93317-32231-00
Unavailable
28
BEARING, CYLINDRICAL (4X7)
93317-22021-00
Unavailable
29
BRG,R-B 6007 62MM 150G KY
93306-00702-00
Unavailable
30
OIL SEAL (705)
93102-35191-00
Unavailable
31
CHAIN
94880-03078-00
Unavailable
32
AXLE, IDLE
88T-17432-00-00
Unavailable
33
GEAR, REVERSE WHEEL 1
88T-17243-00-00
Unavailable
34
BEARING (7X9)
93306-20327-00
Unavailable
35
BEARING(4ED)
93306-20468-00
Unavailable
36
JOURNAL 1
88T-47571-00-00
Unavailable
37
O-RING (437)
93210-24235-00
$7.49
38
SPRKT, CHN DRN 35T
8BB-47587-50-00
Unavailable
38
SPRKT,CHN DRN 38T
8BB-47587-80-00
Unavailable
39
PLUG
90331-26096-00
Unavailable
40
OIL SEAL (705)
93102-35191-00
Unavailable
41
BRG,R-B 6007 62MM 150G KY
93306-00702-00
Unavailable
42
HOLDER
88T-47613-00-00
Unavailable
43
BRG,R-B 6304 52MM 144G NT
93306-30407-00
Unavailable
44
SHAFT 2
88T-12257-00-00
Unavailable
45
WASHER, PLATE(2WG)
90201-204M9-00
Unavailable
46
CIRCLIP(1AR)
99009-20400-00
Unavailable
47
SHAFT, TENSIONER
88T-12247-00-00
Unavailable
48
BOLT, HEXAGON (899 TRACK)
90101-10293-00
Unavailable
49
NUT (3WP1)
95317-10700-00
Unavailable
50
WASHER SEAL 256111730200
90210-10004-00
Unavailable
51
FORK, SHIFT 1
88T-18511-00-00
Unavailable
52
PIN, SPRING (6G0)
91690-40025-00
Unavailable
53
BAR, SHIFT FORK GUIDE 1
88T-18531-00-00
Unavailable
54
LEVER
88T-18191-00-00
Unavailable
55
BOLT,SOCKET
91317-06020-00
Unavailable
56
SPRING
88T-18123-00-00
Unavailable
57
CIRCLIP(13H)
99009-18400-00
Unavailable
58
LEVER, SHIFT 3
88T-18151-00-00
Unavailable
59
O-RING (611)
93210-10096-00
Unavailable
60
BOLT
90109-063E8-00
Unavailable
61
PIN
90249-07217-00
Unavailable
62
SPRING, COMPRESSION(88K)
90501-124G3-00
Unavailable
63
PLUG, STRAIGHT SCREW
90340-10136-00
Unavailable
64
WASHER, PLATE(56J)
90201-106H5-00
Unavailable
65
SHIFT LEVER ASY
88T-18120-01-00
Unavailable
66
SWITCH
J51-82817-00-00
Unavailable
67
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
68
LEVER COMP. 1
8BK-18190-00-00
Unavailable
69
KNOB, SHIFT LEVER
8CL-18174-00-00
Unavailable
70
. SHAFT
8BK-18197-00-00
Unavailable
71
PIN,SPRING (648)
91690-40022-00
Unavailable
72
NUT(6TD)
95337-10600-00
Unavailable
73
JOINT 2
88T-18157-00-00
Unavailable
74
JOINT, UNIVERSAL 2
J45-23845-00-00
Unavailable
75
NUT,SELF-LOCKING
95607-06200-00
Unavailable
76
JOINT, ROD 1
88T-18116-01-00
Unavailable
77
NUT (2H9)
90170-06228-00
Unavailable
78
NUT(JN5)
95317-06700-00
Unavailable
79
GUIDE, CABLE
8V0-26399-00-00
Unavailable
80
SPACER (31A)
90560-08237-00
Unavailable
81
STOPPER
88T-15794-00-00
Unavailable
82
PIN, CLEVIS (2A6)
91701-08038-00
Unavailable
83
CLIP 136253750000
90468-12006-00
Unavailable
