Description

Price

1

STARTER ASSY

8V0-15710-00-00

Unavailable

2

. CASE, STARTER

8V0-15711-00-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$48.99

4

PAWL, DRIVE

8F3-15741-01-00

$28.99

5

SPRING, STARTER

8F3-15713-01-00

$48.99

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.99

7

WASHER, THRUST

8F3-15739-01-00

$11.99

8

SPRING, RETURN

8F3-15734-00-00

$5.49

9

WASHER, THRUST

8G5-15739-00-00

$9.49

10

. PLATE, DRIVE

82M-15716-00-00

Unavailable

11

PLATE, DRIVE

8F3-15716-03-00

$29.99

12

WASHER, SPRING

92995-06100-00

Unavailable

13

NUT(650)

95380-06700-00

$8.49

14

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

15

HANDLE, STARTER

8F3-15755-00-00

$29.99

16

BOLT(8CP)

97017-06014-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

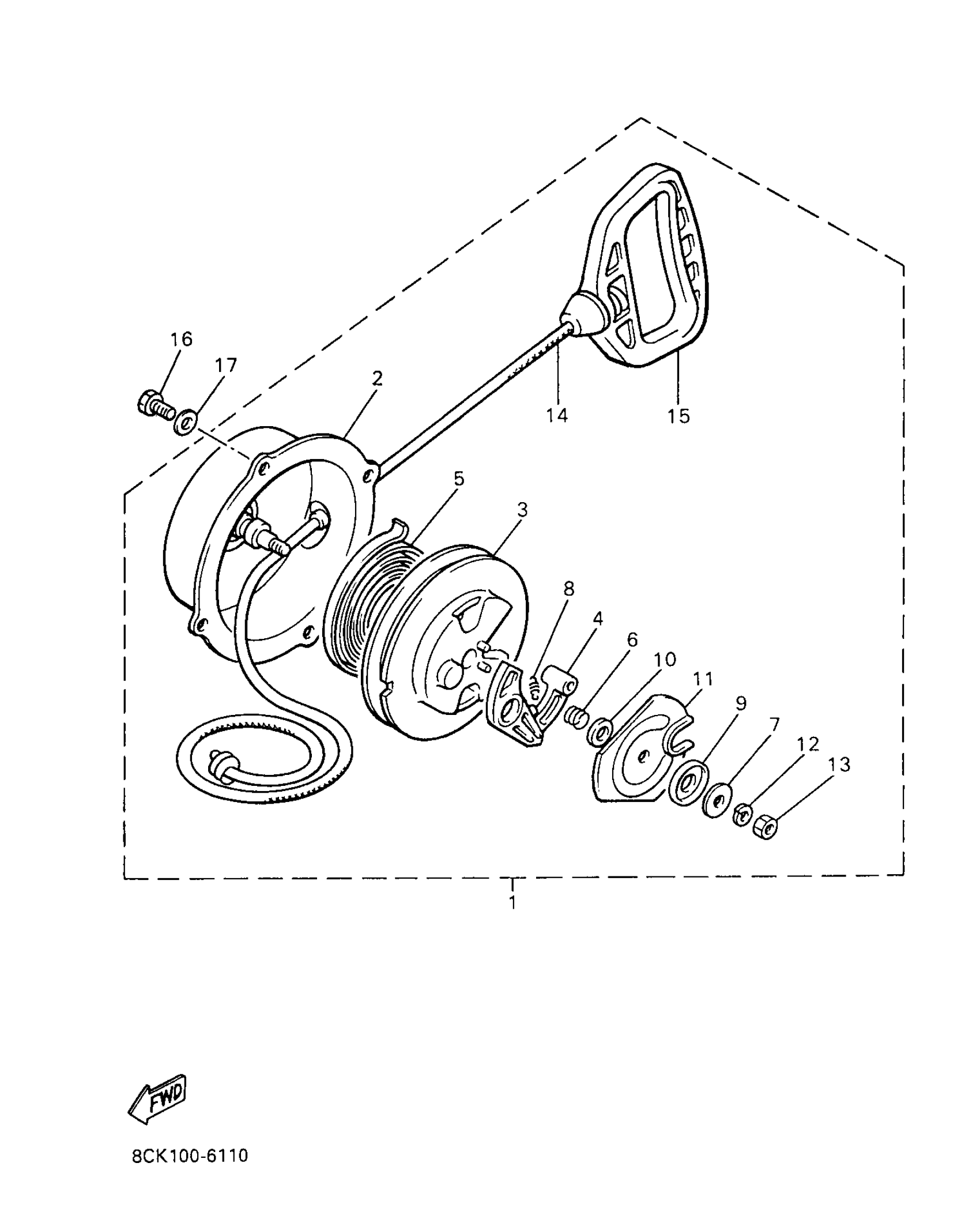

Yamaha VT480TRA (VENTURE TR) 8CK2 1997 STARTER Diagram

STARTER ASSY

. CASE, STARTER

DRUM, SEAVE

PAWL, DRIVE

SPRING, STARTER

SPRING, DRIVE PLATE

WASHER, THRUST

SPRING, RETURN

WASHER, THRUST

. PLATE, DRIVE

PLATE, DRIVE

WASHER, SPRING

NUT(650)

WIRE, STARTER (BRAIDED)

HANDLE, STARTER

BOLT(8CP)

WASHER(6TA)
