1997 Yamaha Venture TR (VT480TRA) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1997 Yamaha Venture TR (VT480TRA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

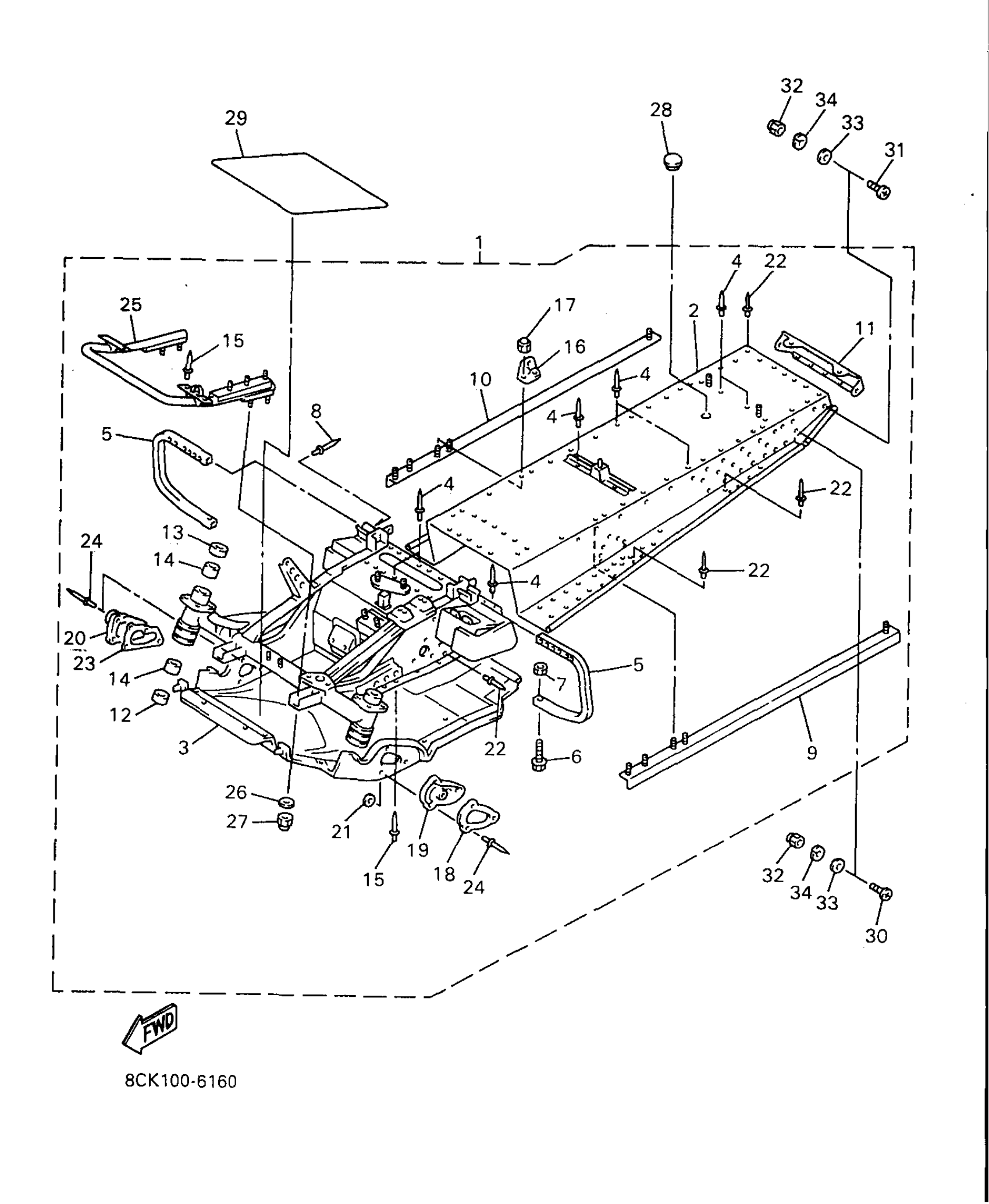

1997 Yamaha Venture TR (VT480TRA) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8CK-21910-00-00

1
Out of stock

2

. PANEL, FRAME

8CK-21911-00-00

1
Out of stock

3

BELLY PAN

87F-21912-00-00

1
Out of stock

4

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

5

. REINFORCEMENT, FOOTREST 1

8V0-21926-01-00

1
Out of stock

6

BOLT, FLANGE

95817-06030-00

1

$3.91

In stock

7

NUT, NYLON

95707-06300-00

1

$3.20

In stock

8

RIVET, BLIND

90267-47197-00

1

$1.91

In stock

9

. PATCH 4

8CK-21964-00-00

1
Out of stock

10

. PATCH 5

8CK-21965-00-00

1
Out of stock

11

. REINEFORCEMENT, FRAME REAR 1

8X0-21923-00-00

1
Out of stock

12

OIL SEAL (8M6)

93103-36117-00

1

$20.31

In stock

13

OIL SEAL (8M6)

93102-36232-00

1

$9.51

In stock

14

1

$9.68

In stock

15

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

16

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

17

NUT, NYLON

95707-06300-00

1

$3.20

In stock

18

SPACER

8M6-21998-00-00

—

$3.05

In stock

19

COVER 1

8M6-2198F-00-00

—

$22.69

In stock

20

. COVER 2

80L-2198G-00-00

1
Out of stock

21

WASHER, PLATE

90201-04027-00

—
Out of stock

22

RIVET(89R)

90269-04044-00

—
Out of stock

23

. WASHER 2

80L-77526-00-00

1
Out of stock

24

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

25

. BUMPER, FRONT 2

8CK-77512-00-00

1
Out of stock

26

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

27

NUT, NYLON

95717-08300-00

—

$2.57

In stock

28

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

29

SHIELD, HEAT

87F-2199H-00-00

—

$20.80

In stock

30

SCREW,BINDING

98907-08014-00

1
Out of stock

31

SCREW, BINDING

98907-08016-00

1
Out of stock

32

NUT, CAP

95307-08800-00

—
Out of stock

33

WASHER(6TC)

92907-08200-00

—
Out of stock

34

WASHER(JN5)

92907-08100-00

—

$5.98

In stock
