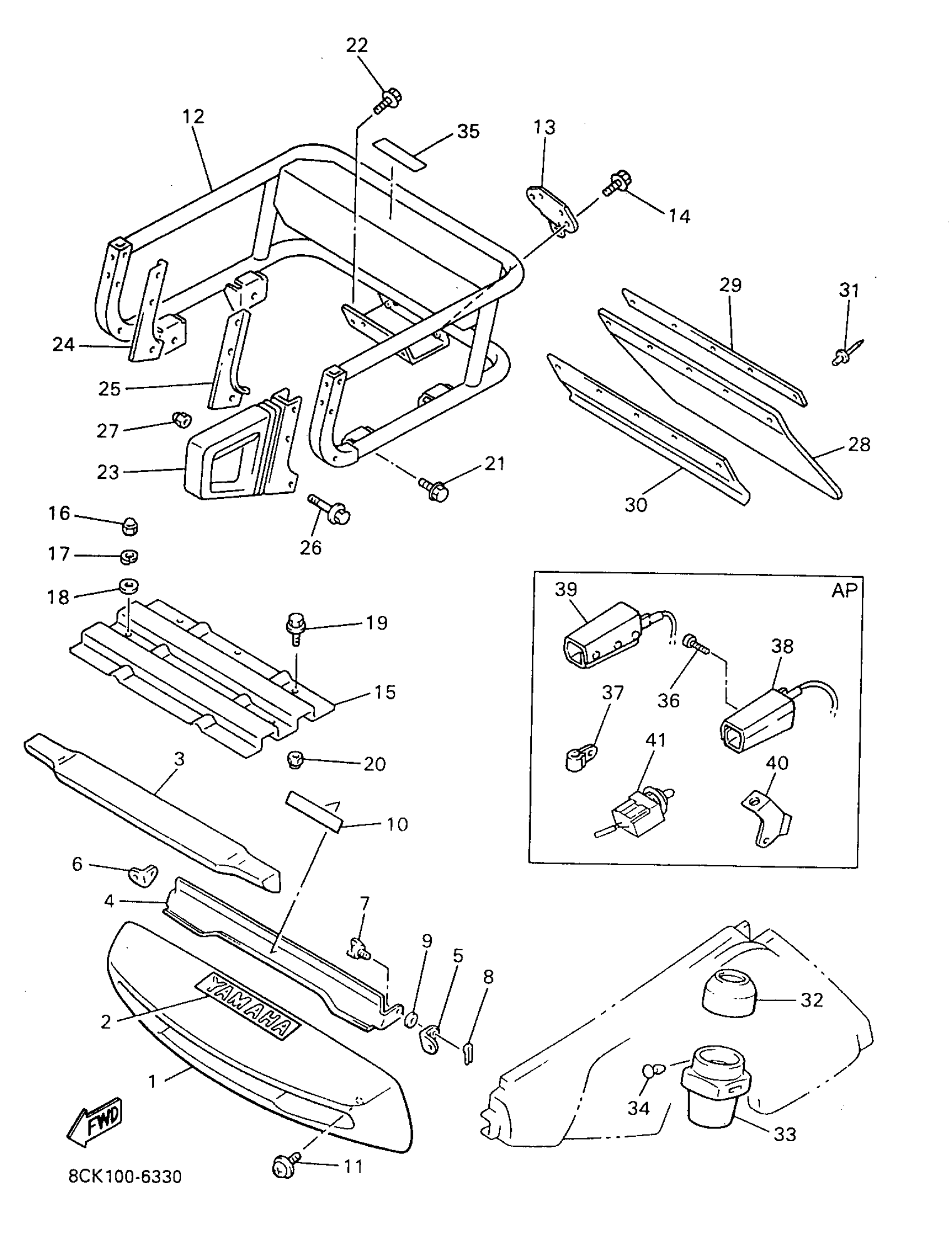

Find the part on the Bumper diagram for your 1997 Yamaha Venture TR (VT480TRA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Venture TR (VT480TRA) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8BK-77511-10-00

1
Out of stock

2

EMBLEM, YAMAHA(PASTEL GOLD)

99245-00120-00

—
Out of stock

3

SPACER, BUMPER

8AN-77529-00-00

1
Out of stock

4

. PLATE 1

88T-77185-00-00

1
Out of stock

5

STAY 1

87F-77125-00-00

1
Out of stock

6

STAY 2

87F-77126-00-00

1
Out of stock

7

BOLT, WING(8W1)

90122-05022-00

1

$6.15

In stock

8

PIN, COTTER

91490-16020-00

1

$6.23

In stock

9

. WASHER, PLATE

90202-05088-00

1

$6.33

In stock

10

LABEL,WARNING 2

8BE-77762-00-00

1
Out of stock

11

SCREW, W/WASHER (4L0)

90159-06060-00

1

$6.17

In stock

12

BUMPER, REAR 1

8CK-77541-00-00

1
Out of stock

13

BRACKET, HITCH 2

84R-77592-00-00

1

$65.05

In stock

14

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

15

PROTECTOR 4

8CK-77554-00-00

1
Out of stock

16

NUT, CAP

95307-08800-00

—
Out of stock

17

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

18

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

19

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

20

NUT, NYLON

95717-08300-00

—

$2.57

In stock

21

BOLT, FLANGE

95817-08014-00

—

$1.94

In stock

22

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

23

GRIP, ASSIST 1

8X0-77571-00-00

—

$170.71

In stock

24

WASHER 1

8X0-77525-00-00

—
Out of stock

25

WASHER 2

8X0-77526-00-00

—
Out of stock

26

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

27

NUT, CROWN(82U)

90176-08063-00

—
Out of stock

28

FLAP

88K-77595-20-00

1
Out of stock

29

STOPPER, FLAP

89X-77596-00-00

1
Out of stock

30

PROTECTOR 6

89X-77556-00-00

1
Out of stock

31

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

32

PROTECTOR 4

82M-77554-01-00

—
Out of stock

33

PROTECTOR 1

82M-77551-00-00

1
Out of stock

34

RIVET (8M6)

90269-04025-00

—
Out of stock

35

EMBLEM

89X-24897-00-00

1
Out of stock

36

SCREW, TAPPING(4MV)

97707-50016-00

—

$1.16

In stock

37

CLAMP

90465-08028-00

1

$4.62

In stock

38

ASSIST GRIP WARMER ASSEMBLY 1

88T-2474B-00-00

1
Out of stock

39

ASSIST GRIP WARMER ASSEMBLY 2

88T-2474C-00-00

1
Out of stock

40

BRACKET, SEAT

8CL-24718-00-00

1
Out of stock

41

SWITCH

8JD-82917-00-00

—
Out of stock
