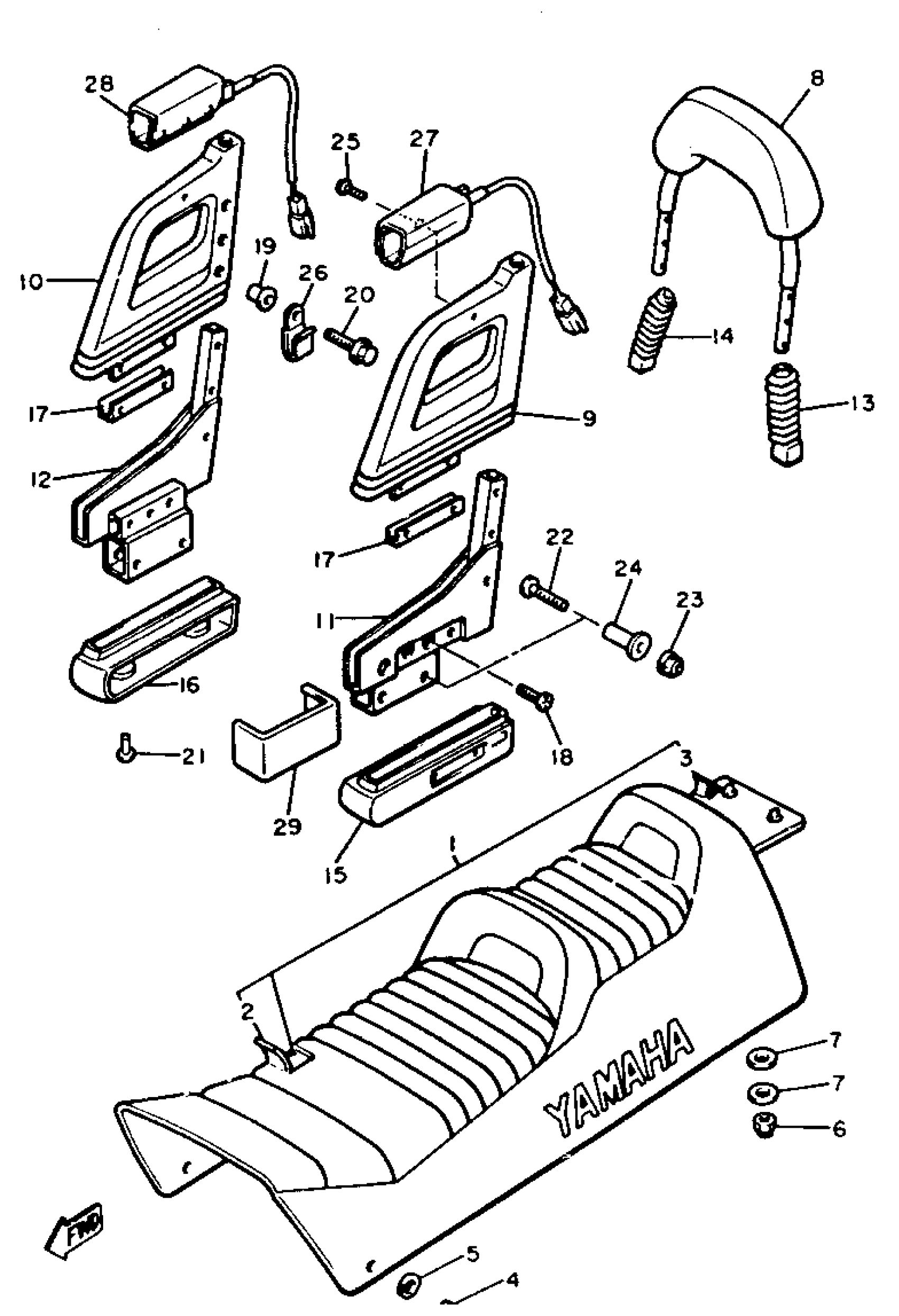

Yamaha VT480T (VENTURE XL) 8AN1 1993 SEAT Diagram
#
1
DOUBLE SEAT ASY
88T-24730-01-00
Unavailable
2
COVER, SINGLE SEAT
88T-2470F-00-00
Unavailable
3
. COVER, LUGGAGE BOX 2
88T-77377-00-00
Unavailable
4
SCREW, BINDING
98907-06020-00
$8.49
5
WASHER, PLATE(36Y)
90201-063J2-00
$5.60
6
NUT, NYLON
95717-08300-00
$2.70
7
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
8
SEAT BACK ASSEMBLY
88T-24790-00-00
Unavailable
9
ASSIST, GRIP
8Y7-2474A-01-00
Unavailable
10
ASSIST, GRIP 2
8Y7-2474W-01-00
Unavailable
11
BRACKET, ASSIST GRIP 1
88T-2474H-00-00
Unavailable
12
BRACKET, ASSIST GRIP 2
88T-2474J-00-00
Unavailable
13
PROTECTOR, 1
8Y7-2476U-00-00
Unavailable
14
PROTECTOR, 2
8Y7-2476V-00-00
Unavailable
15
COVER 1
8Y7-24796-01-00
$187.99
16
COVER, 2
8Y7-2475X-01-00
Unavailable
17
WASHER, SEAT
8Y7-24746-00-00
Unavailable
18
SCREW, BINDING
98907-08016-00
Unavailable
19
COLLAR(88T)
90387-074X6-00
Unavailable
20
BOLT, FLANGE
95817-06025-00
Unavailable
21
RIVET
90269-06001-00
Unavailable
22
SCREW,BINDING
98907-08040-00
Unavailable
23
NUT, SELF-LOCKING
90185-08169-00
Unavailable
24
COLLAR
90387-094X7-00
Unavailable
25
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
26
CLAMP(4MX)
90465-06376-00
Unavailable
27
ASSIST GRIP WARMER ASSEMBLY 1
88T-2474B-00-00
Unavailable
28
ASSIST GRIP WARMER ASSEMBLY 2
88T-2474C-00-00
Unavailable
29
COVER, TAIL 2
88T-2472K-00-00
Unavailable
