Description

Price

1

SPEEDOMETER ASSY (MILE/H)

88T-83510-40-00

Unavailable

2

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

3

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

4

DAMPER

88T-83523-00-00

Unavailable

5

. BRACKET, METER

8G6-83519-00-00

Unavailable

6

NUT, HEXAGON (663)

95380-05600-00

$8.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

TACHOMETER ASSEMBLY

88T-83540-00-00

Unavailable

9

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

10

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

11

DAMPER

88T-83523-00-00

Unavailable

12

. BRACKET, METER

8G6-83519-00-00

Unavailable

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

SPEEDOMETER CABLE ASSEMBLY

85N-83550-01-00

Unavailable

16

TACHOMETER CABLE ASSEMBLY

88T-83560-00-00

Unavailable

17

METER GEAR HOUSING COMP.

8L8-47700-00-00

Unavailable

18

JOINT

8K4-47715-00-00

Unavailable

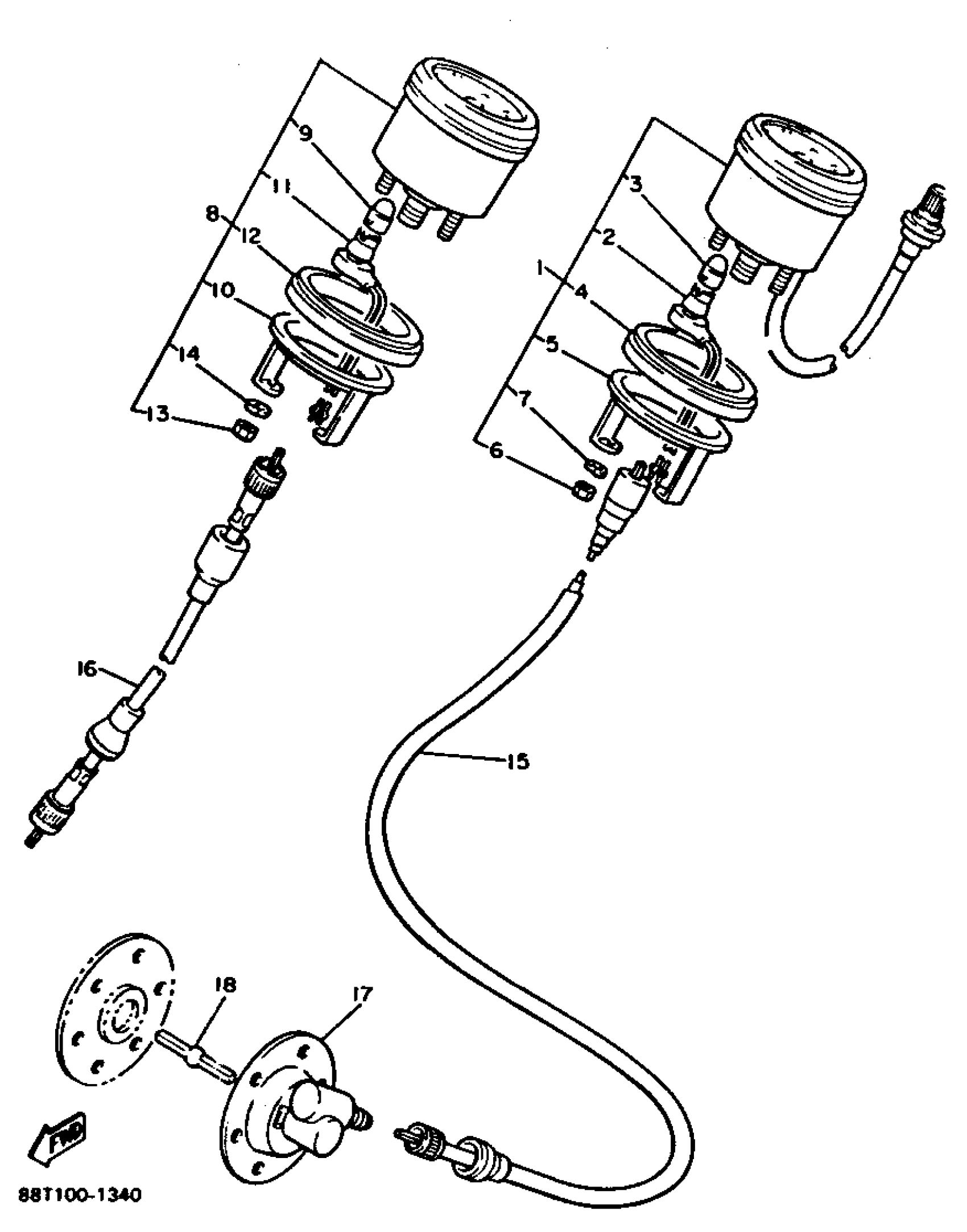

Yamaha VT480T (VENTURE XL) 8AN1 1993 METER Diagram

SPEEDOMETER ASSY (MILE/H)

BULB, MTR.12V3.4W

SOCKET CORD ASSY

DAMPER

. BRACKET, METER

NUT, HEXAGON (663)

YBS67-5 WASHER, SPRING

TACHOMETER ASSEMBLY

BULB, MTR.12V3.4W

SOCKET CORD ASSY

DAMPER

. BRACKET, METER

NUT, HEXAGON (663)

YBS67-5 WASHER, SPRING

SPEEDOMETER CABLE ASSEMBLY

TACHOMETER CABLE ASSEMBLY

METER GEAR HOUSING COMP.

JOINT
