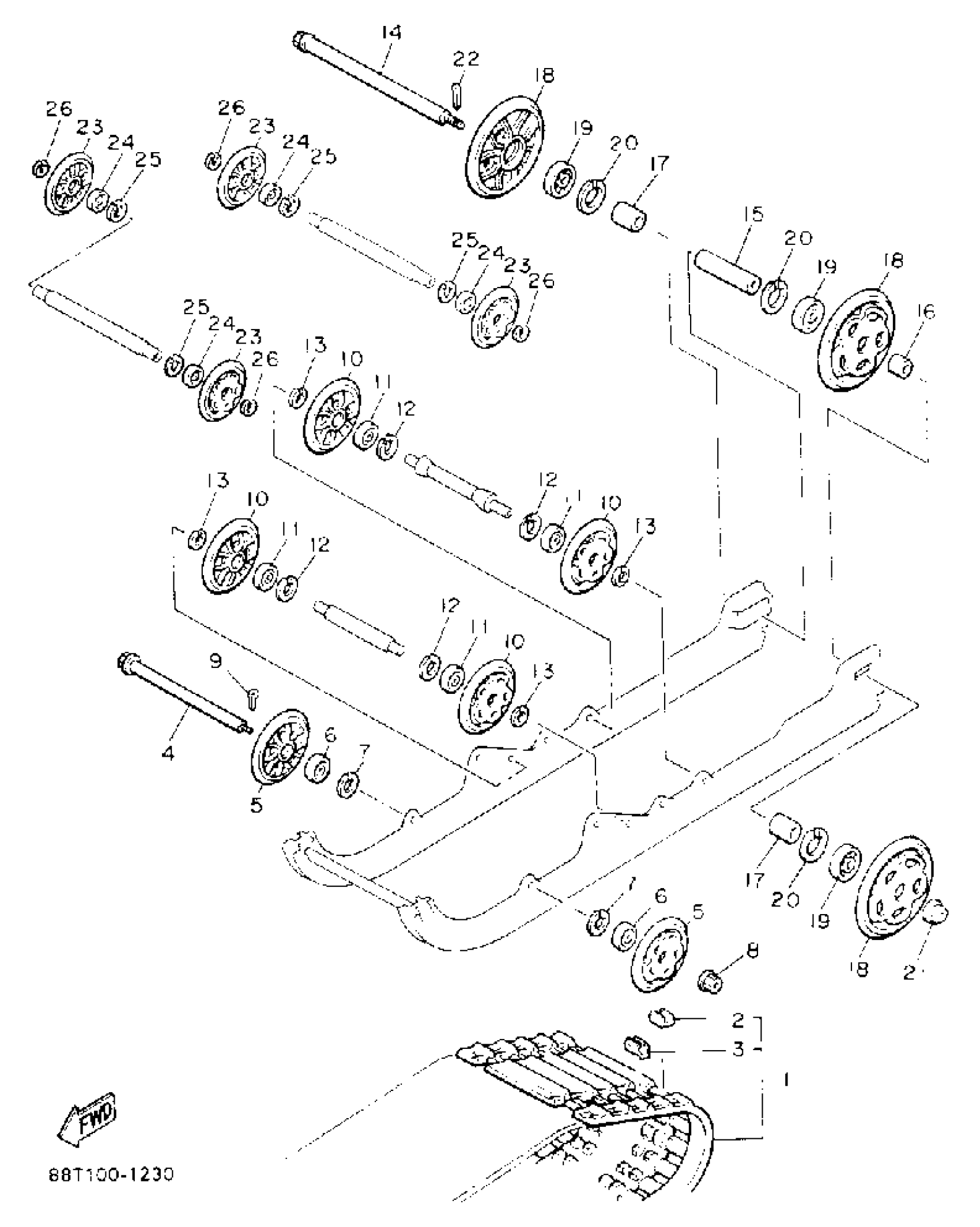

Yamaha VT480S (VENTURE XL) 89M1 1992 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSEMBLY

87F-47110-01-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.11

3

METAL, SLIDE

8A5-47115-00-00

$12.99

4

SHAFT 5

82M-47487-00-00

Unavailable

5

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.20

6

BEARING(8AB)

93306-00444-00

$34.98

7

CIRCLIP(5U8)

99009-42500-00

$6.45

8

NUT, SELF-LOCKING (8BF)

95607-14200-00

$9.69

9

PIN, COTTER

91490-30030-00

$7.00

10

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.20

11

BEARING(8AB)

93306-00444-00

$34.98

12

CIRCLIP(5U8)

99009-42500-00

$6.45

13

CIRCLIP(1AR)

99009-20400-00

$5.87

14

REAR AXLE COMP.

8L8-47520-02-00

$78.56

15

COLLAR

90387-20023-00

Unavailable

16

COLLAR

90387-204R3-00

Unavailable

17

COLLAR

90387-20022-00

Unavailable

18

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

19

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

20

CIRCLIP(48Y)

99009-47500-00

Unavailable

21

NUT, SELF-LOCKING (8BF)

95607-14200-00

$9.69

22

PIN, COTTER

91490-30030-00

$7.00

23

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

24

BEARING(8AB)

93306-00444-00

$34.98

25

CIRCLIP(5U8)

99009-42500-00

$6.45

26

CIRCLIP(1AR)

99009-20400-00

$5.87
