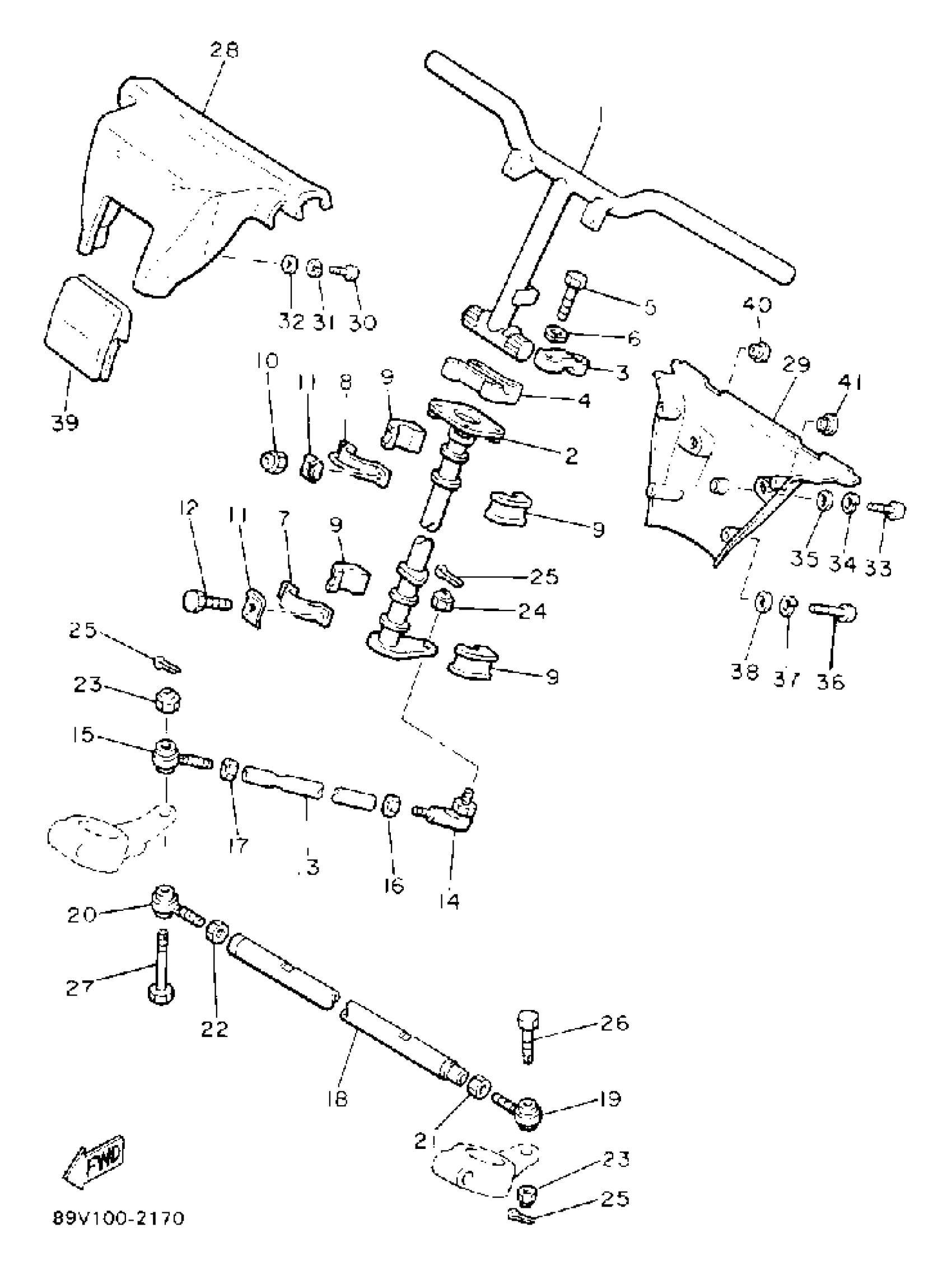

Yamaha VT480S (VENTURE XL) 89M1 1992 STEERING Diagram
#
1
COLUMN, STEERING
88R-23811-00-00
Unavailable
2
COLUMN, STEERING 2
83V-23813-01-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HANDLE, HOLDER
164-23441-01-98
Unavailable
5
BOLT, HEXAGON
97017-08055-00
$9.49
6
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
7
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
8
HOLDER, BEARING
84M-23872-00-00
Unavailable
9
BEARING, STEERING
8F3-23812-00-00
Unavailable
10
NUT, NYLON
95717-08300-00
$2.70
11
WASHER, LOCK 1
8AC-23894-01-00
$4.78
12
BOLT, HEXAGON
97017-08020-00
$9.49
13
ROD,STEERING RELAY
87F-23821-00-00
Unavailable
14
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
15
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
16
NUT (682)
95380-10700-00
Unavailable
17
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
18
ROD,TIE
89X-23831-00-00
Unavailable
19
JOINT, UNIVERSAL 2
87S-23845-01-00
Unavailable
20
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
21
NUT (682)
95380-10700-00
Unavailable
22
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
23
NUT, NYLON
95707-10300-00
Unavailable
24
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
25
PIN, COTTER
91490-25020-00
Unavailable
26
BOLT, WITH HOLE
90102-10031-00
Unavailable
27
BOLT
90109-10767-00
Unavailable
28
PAD, STEERING
82M-23815-01-00
Unavailable
29
PAD,STEERING
80L-23817-02-00
Unavailable
30
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
31
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
32
WASHER, PLAIN (646)
92990-05600-00
Unavailable
33
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
34
WASHER(3SX)
92907-05100-00
Unavailable
35
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
36
SCREW, PAN HEAD
98517-05030-00
Unavailable
37
WASHER(3SX)
92907-05100-00
Unavailable
38
WASHER(1RW)
92907-05600-00
Unavailable
39
COVER, STEERING
88T-23818-00-00
Unavailable
40
GROMMET
90480-17165-00
Unavailable
41
GROMMET 122154860000
90480-12012-00
Unavailable
