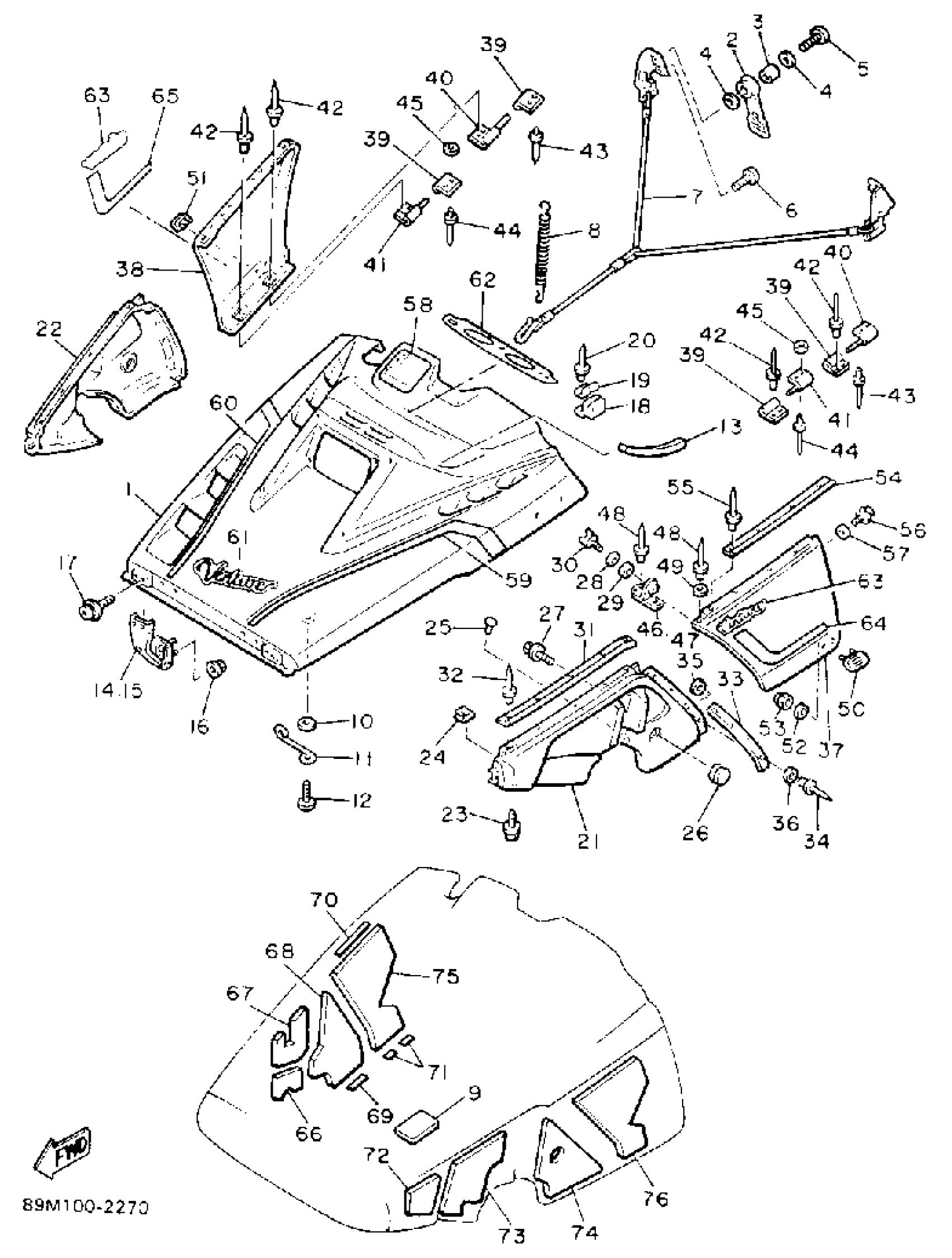

Yamaha VT480S (VENTURE XL) 89M1 1992 SHROUD Diagram
#
1
SHROUD ASSEMBLY
88T-Y7711-00-00
Unavailable
2
BODY, LATCH 1
8V0-77171-00-00
$21.99
3
COLLAR (420)
90387-06241-00
$8.49
4
WASHER, PLATE 8221447500
90201-06057-00
$5.60
5
SCREW, BINDING
98907-06030-00
$8.49
6
SCREW, BINDING
98907-06012-00
$9.49
7
STOPPER, SHROUD
88T-77118-01-00
Unavailable
8
CLAMP, ROD
80L-77159-00-00
Unavailable
9
DAMPER, NOISE 17
88T-77277-00-00
Unavailable
10
. WASHER, PLAIN
92990-05200-00
Unavailable
11
CLAMP
90465-20145-00
Unavailable
12
SCREW, TAPPING(4MV)
97707-50016-00
$2.19
13
DAMPER 1
88T-77198-00-00
Unavailable
14
HINGE ASSY
88T-77140-00-00
Unavailable
15
HINGE ASSY 2
88T-7714A-00-00
Unavailable
16
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
17
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
18
STOPPER
8V0-77188-00-00
Unavailable
19
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
20
RIVET, BLIND
90267-40029-00
Unavailable
21
HOOD 1
88T-21982-01-00
Unavailable
22
HOOD 2
88T-21983-00-00
Unavailable
23
BOLT, WITH WASHER
90119-06226-00
Unavailable
24
NUT, SPRING (26H)
90183-06023-00
Unavailable
25
RIVET(81E)
90269-05055-00
Unavailable
26
GROMMET
90480-40538-00
Unavailable
27
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
28
WASHER, PLATE
90201-06020-00
Unavailable
29
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
30
BOLT, WING (36F)
90122-06020-00
Unavailable
31
BUSH, RUBBER 1
87F-77515-00-00
Unavailable
32
RIVET(81E)
90269-05055-00
Unavailable
33
TRIM 1
8V0-2196T-00-00
Unavailable
34
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
35
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
36
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
37
HOOD 3
88T-2197H-00-00
Unavailable
38
HOOD 4
88T-2198H-00-00
Unavailable
39
BRACKET, 1
88F-2194X-00-00
Unavailable
40
BRACKET 2
88R-2195X-00-00
Unavailable
41
BRACKET 3
88F-2196F-00-00
Unavailable
42
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
43
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
44
RIVET, BLIND
90267-48018-00
Unavailable
45
WASHER, PLATE
90201-04027-00
Unavailable
46
PROTECTOR 3 (LH)
87F-77553-01-00
Unavailable
47
PROTECTOR 4
87F-77554-01-00
Unavailable
48
RIVET, BLIND (8R4)
90267-48088-00
Unavailable
49
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
50
PROTECTOR 1
85L-77551-00-00
Unavailable
51
PROTECTOR 2
85L-77552-00-00
Unavailable
52
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
53
NUT, NYLON
95707-05300-00
Unavailable
54
BUSH, RUBBER 2
8V0-77516-01-00
Unavailable
55
RIVET(81E)
90269-05055-00
Unavailable
56
HOLDER, LATCH
8V0-77175-00-00
Unavailable
57
PLATE
4U5-2176E-00-00
Unavailable
58
LABEL, WARNING 3
88T-77763-00-00
Unavailable
59
ORNAMENT 1
89M-77163-00-00
Unavailable
60
ORNAMENT 2
89M-77164-00-00
Unavailable
61
EMBLEM 1
89M-77141-00-00
Unavailable
62
ORMNT, INSTR PNL 1PANEL 1
88T-77715-00-00
Unavailable
63
EMBLEM 2
89M-77142-00-00
Unavailable
64
EMBLEM 5
89M-77355-00-00
Unavailable
65
EMBLEM 6
89M-77356-00-00
Unavailable
66
LINING, SHROUD 5
87F-77265-01-00
Unavailable
67
LINING, SHROUD 6
87F-77266-01-00
Unavailable
68
DAMPER, NOISE 16
87F-77276-01-00
Unavailable
69
TAPE 1
8V0-7717E-01-00
Unavailable
70
TAPE 1
8V0-7717F-01-00
Unavailable
71
TAPE 3
82M-7717G-01-00
Unavailable
72
DAMPER, NOISE 12
87F-77272-00-00
Unavailable
73
DAMPER, NOISE 13
87F-77273-00-00
Unavailable
74
DAMPER, NOISE 14
87F-77274-00-00
Unavailable
75
LINING,SHROUD 6
8V0-77266-01-00
Unavailable
76
DAMPER, NOISE 15
8V0-77275-00-00
Unavailable
