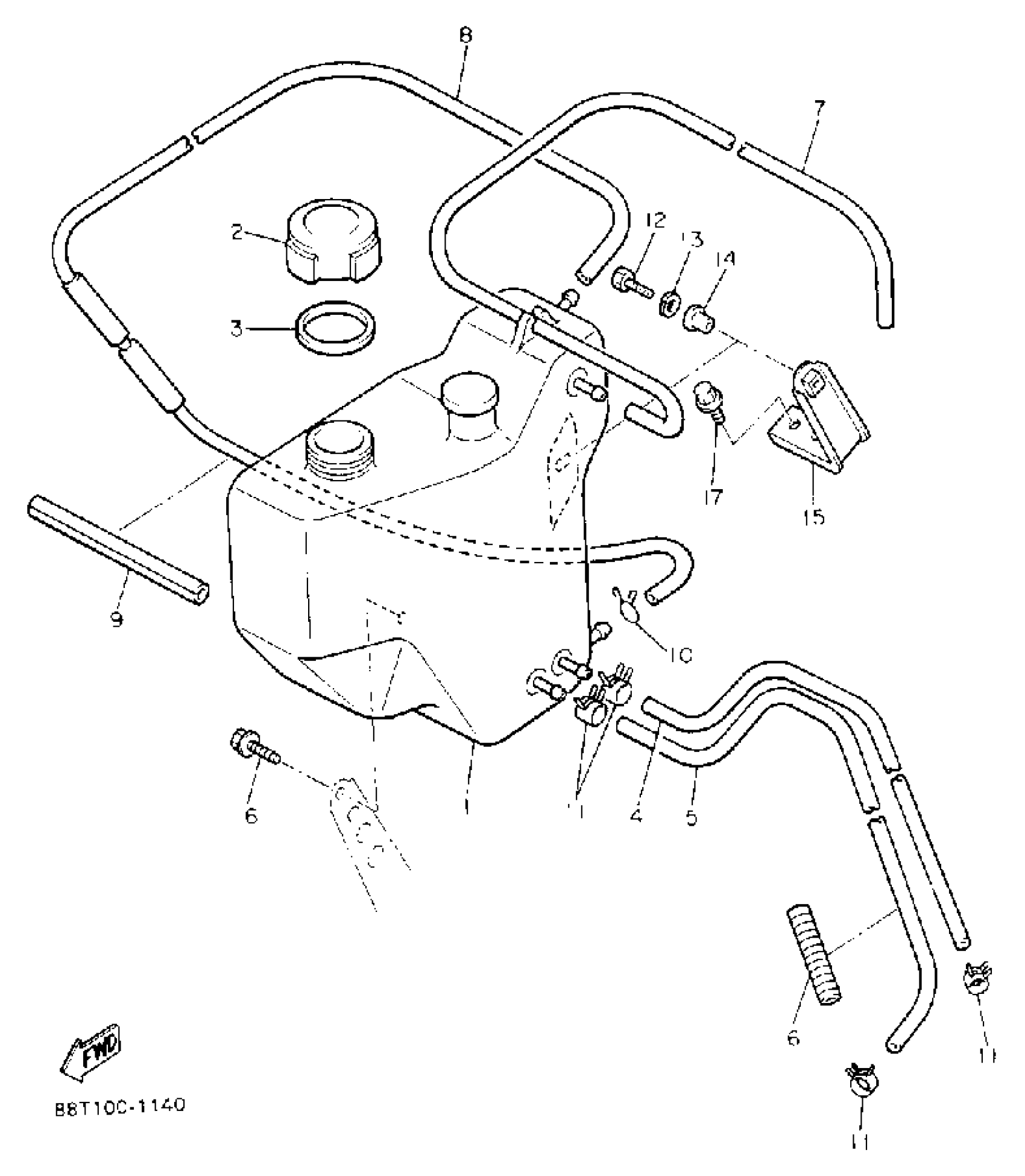

Yamaha VT480S (VENTURE XL) 89M1 1992 OIL TANK Diagram

TANK, OIL

88T-21751-00-00

Unavailable

BODY, CAP

8LU-21771-00-00

$31.99

GASKET, TANK (867)

90430-31003-00

$10.49

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

HOSE

90446-09353-00

Unavailable

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

PROTECTOR, PIPE

88T-24326-00-00

Unavailable

CLIP (8L2)

90467-08017-00

$10.49

CLIP (8A1)

90467-09026-00

$3.28

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER, SPRING

92995-06100-00

Unavailable

COLLAR (8G8)

90387-06681-00

$9.49

BRACKET, OIL TANK 2

88T-2193F-00-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable

BOLT, FLANGE

95817-08012-00

Unavailable
