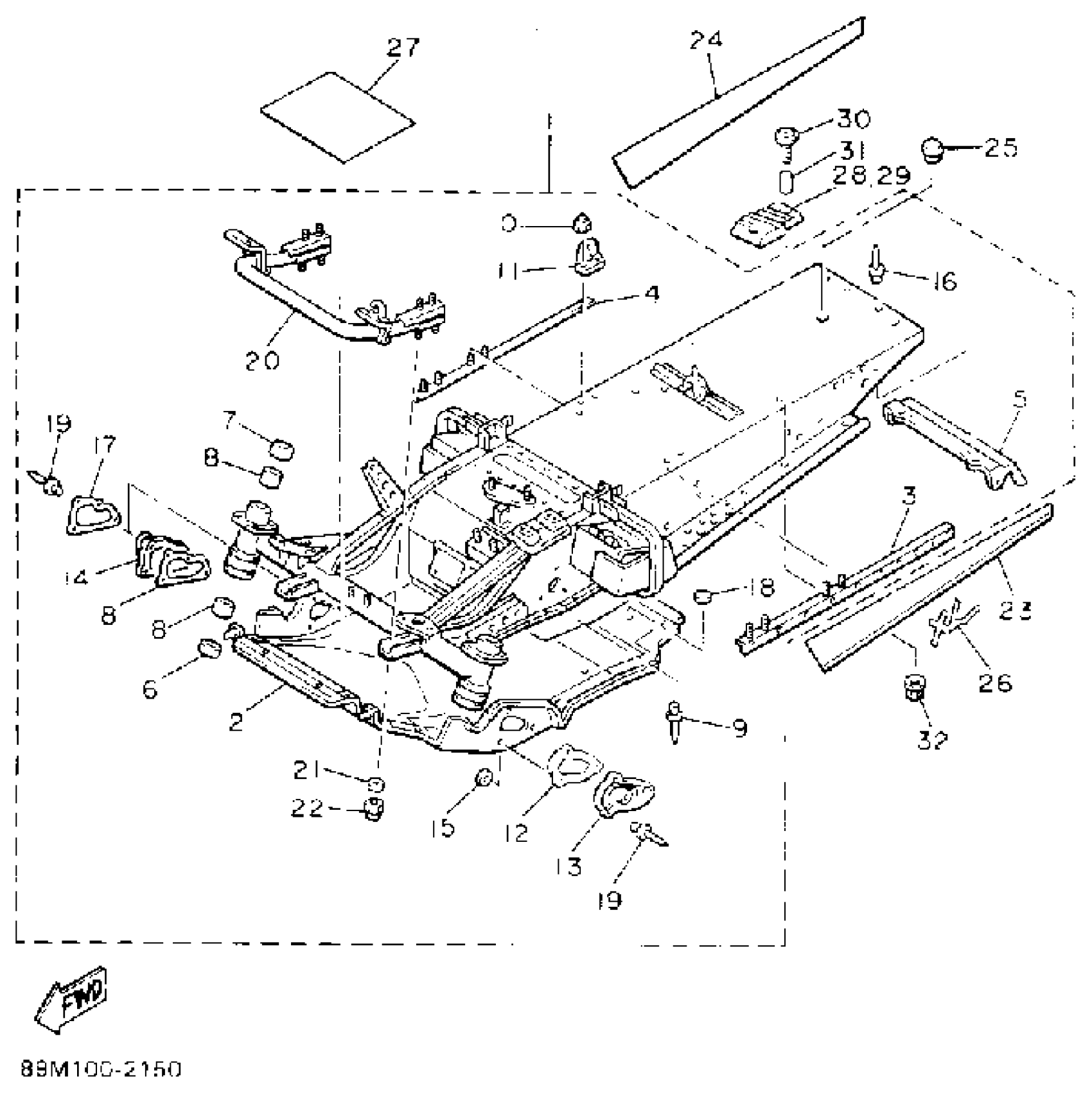

Yamaha VT480S (VENTURE XL) 89M1 1992 FRAME Diagram
#
1
FRAME
89U-21910-00-00
Unavailable
2
BELLY PAN
87F-21912-00-00
Unavailable
3
. PATCH 4
87G-21964-00-00
Unavailable
4
. PATCH 5
87G-21965-00-00
Unavailable
5
REINEFORCEMENT, FRAME REAR 1
8V0-21923-01-00
Unavailable
6
OIL SEAL (8M6)
93103-36117-00
$21.99
7
OIL SEAL (8M6)
93102-36232-00
$11.49
8
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
$11.49
9
RIVET, BLIND
90267-48018-00
$9.49
10
NUT, NYLON
95707-06300-00
$3.50
11
. BRACKET, SEAT FITTING
8V0-21946-00-00
Unavailable
12
SPACER
8M6-21998-00-00
$3.28
13
COVER 1
8M6-2198F-00-00
$31.99
14
. COVER 2
80L-2198G-00-00
Unavailable
15
WASHER, PLATE
90201-04027-00
$3.02
16
. RIVET
90266-04019-00
Unavailable
17
. WASHER 2
80L-77526-00-00
Unavailable
18
SPACER
80F-21998-00-00
Unavailable
19
RIVET, BLIND
90267-40029-00
Unavailable
20
. BUMPER, FRONT 2
8CK-77512-00-00
Unavailable
21
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
22
NUT, NYLON
95717-08300-00
Unavailable
23
EMBLEM 1
89M-77351-00-00
Unavailable
24
EMBLEM 2
89M-77352-00-00
Unavailable
25
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
26
EMBLEM 3
89M-77143-00-00
Unavailable
27
SHIELD, HEAT
87F-2199H-00-00
Unavailable
28
FOOTREST, REAR 1
88T-27431-10-00
Unavailable
29
FOOTREST, REAR 2
88T-27441-10-00
Unavailable
30
SCREW, BINDING
98907-06025-00
Unavailable
31
COLLAR
90387-06158-00
Unavailable
32
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
