Description

Price

1

OIL PUMP ASSEMBLY (8V0-13101-00)

8V0-13101-01-00

Unavailable

2

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

3

CLIP (2A6)

90468-02025-00

$9.49

4

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

5

SCREW, BINDING

98907-04020-00

Unavailable

6

PLATE, ADJUSTING

137-13138-01-00

Unavailable

7

SHIM,PLUNGER

137-13137-00-10

$7.99

8

NUT, HEXAGON (663)

95380-05600-00

$8.49

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

GASKET 137131870000

90430-04004-00

$9.49

11

COVER, ADJUST PULLEY

8A5-13146-01-00

$17.49

12

SCREW, PAN HEAD

98507-04018-00

$2.19

13

PUMP CABLE ASY

8V0-26320-02-00

Unavailable

14

GASKET, PUMP CASE

126-13116-01-00

$8.99

15

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

16

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

17

CLIP (2A6)

90468-02025-00

$9.49

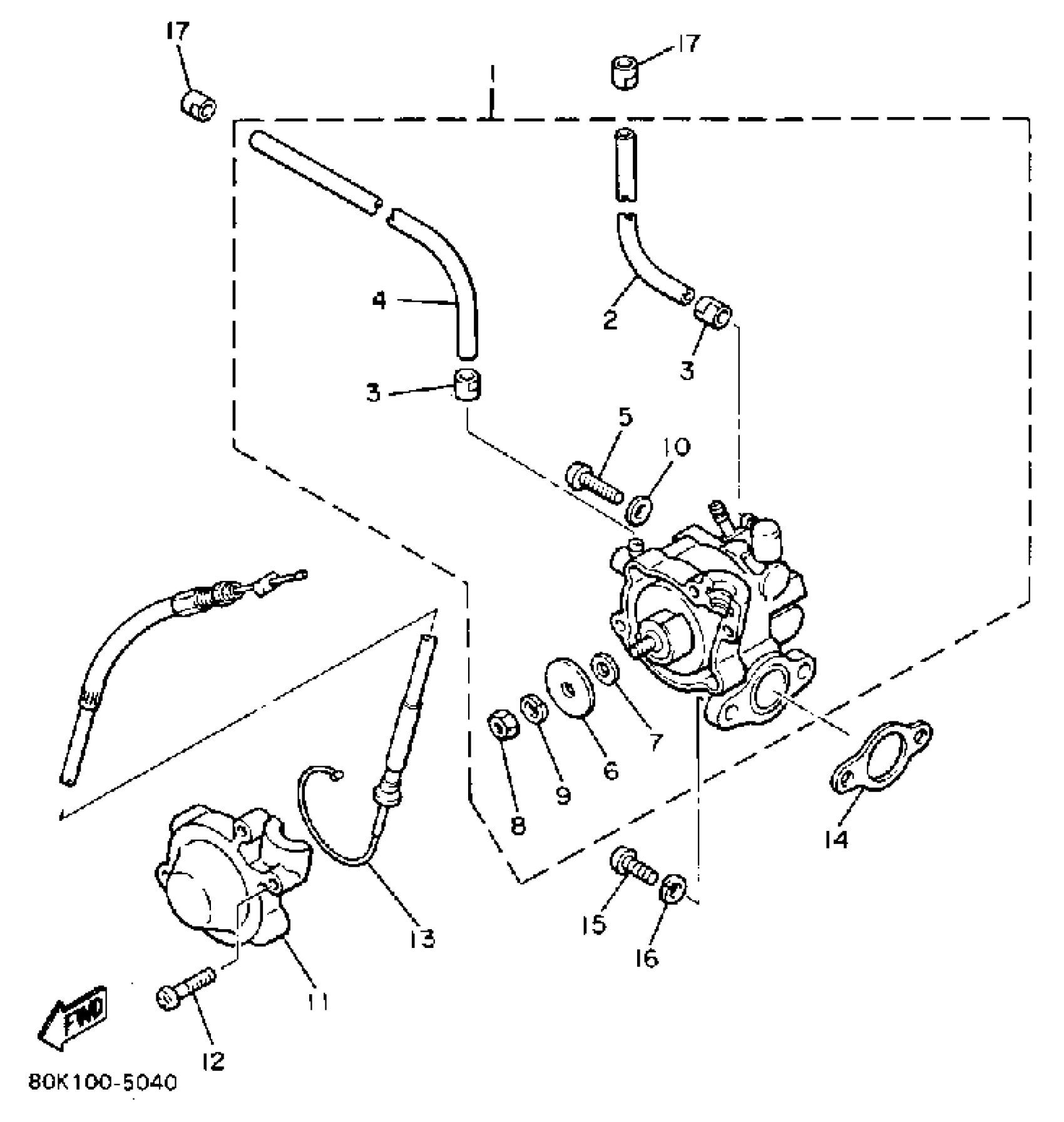

Yamaha VT480R (VENTURE XL) 88T1 1991 OIL PUMP Diagram

OIL PUMP ASSEMBLY (8V0-13101-00)

TUBE, FLEXIBLE VINYL(8AV)

CLIP (2A6)

TUBE, FLEXIBLE VINYL(8AV)

SCREW, BINDING

PLATE, ADJUSTING

SHIM,PLUNGER

NUT, HEXAGON (663)

YBS67-5 WASHER, SPRING

GASKET 137131870000

COVER, ADJUST PULLEY

SCREW, PAN HEAD

PUMP CABLE ASY

GASKET, PUMP CASE

SCREW, PAN HEAD(6B0)

YBS67-5 WASHER, SPRING

CLIP (2A6)
