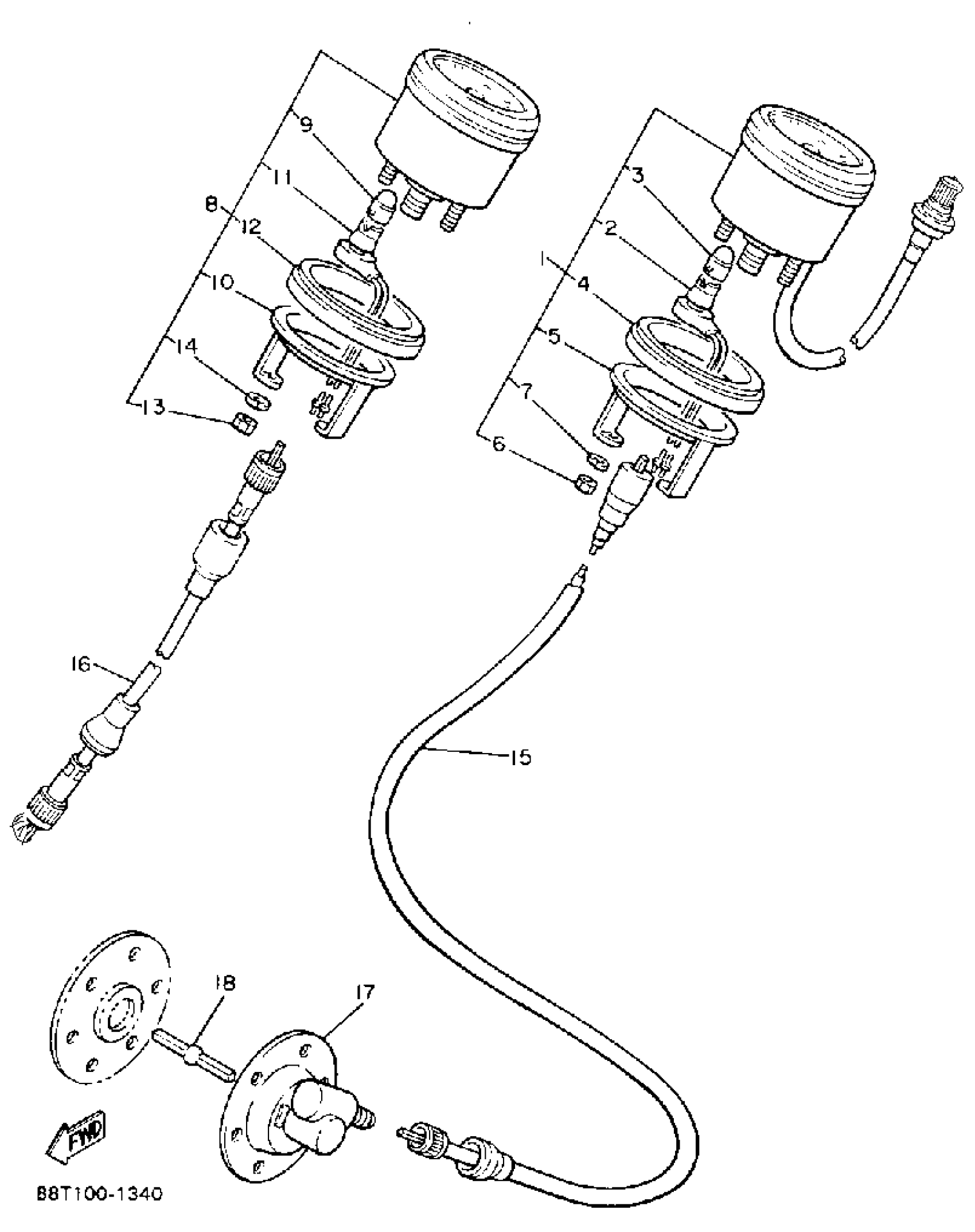

Yamaha VT480R (VENTURE XL) 88T1 1991 METER Diagram
#
Description
Price
1
SPEEDOMETER ASSY (MILE/H)
88T-83510-40-00
Unavailable
2
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
4
DAMPER
88T-83523-00-00
Unavailable
5
. BRACKET, METER
8G6-83519-00-00
Unavailable
8
TACHOMETER ASSEMBLY
88T-83540-00-00
Unavailable
9
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
11
DAMPER
88T-83523-00-00
Unavailable
12
. BRACKET, METER
8G6-83519-00-00
Unavailable
15
SPEEDOMETER CABLE ASSEMBLY
85N-83550-01-00
Unavailable
16
TACHOMETER CABLE ASSEMBLY
88T-83560-00-00
Unavailable
17
METER GEAR HOUSING COMP.
8L8-47700-00-00
Unavailable
18
JOINT
8K4-47715-00-00
Unavailable
