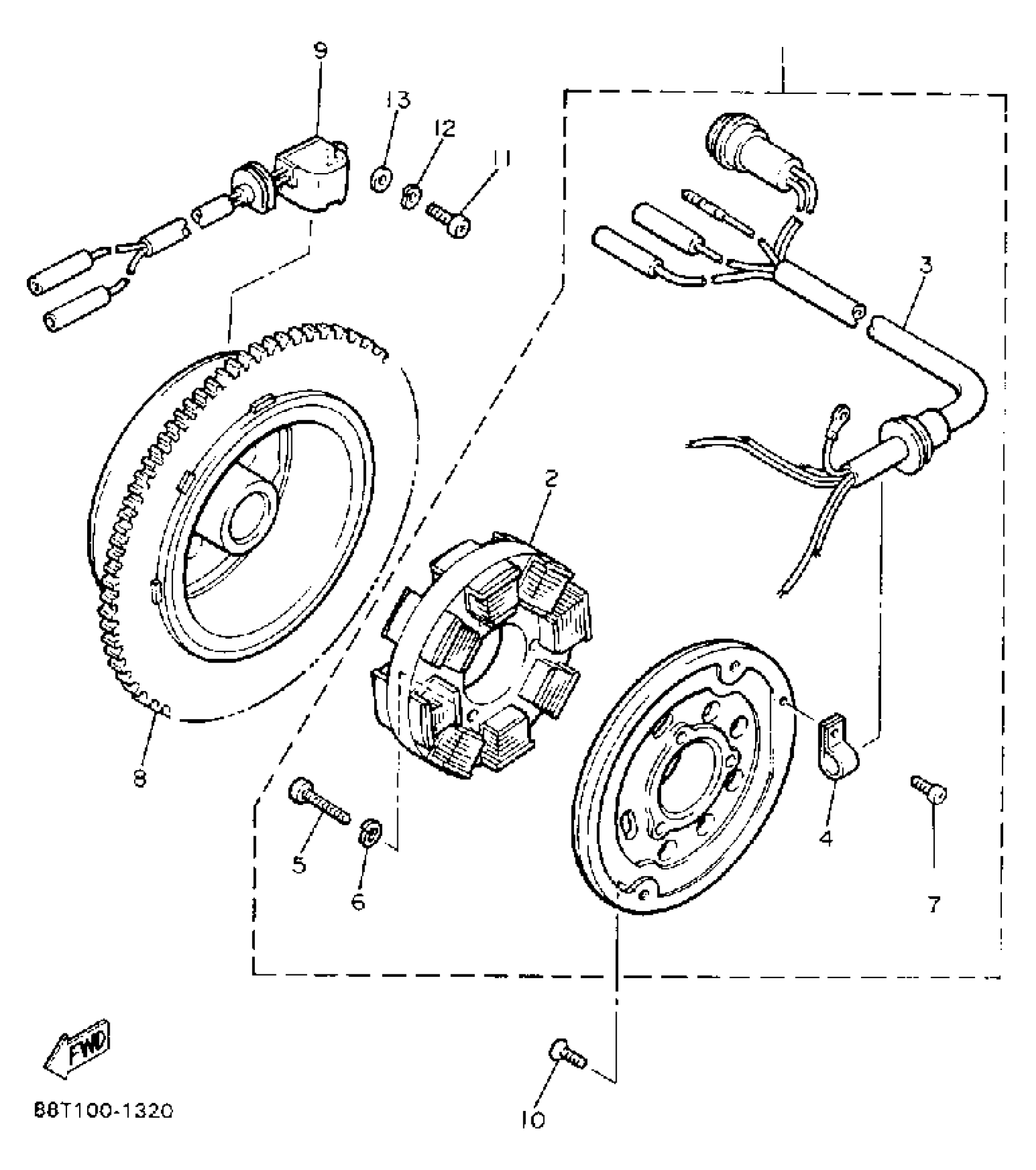

Yamaha VT480R (VENTURE XL) 88T1 1991 GENERATOR Diagram

#

Description

Price

1

STATOR ASY

88T-85510-01-00

Unavailable

2

STATOR ASY

88T-85510-01-00

Unavailable

3

LEAD WIRE HARNESS

(88T-85515-00-00)

Unavailable

4

CLAMP, READ

445-81328-20-00

Unavailable

5

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

6

WASHER, SPRING

92995-06100-00

Unavailable

7

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

8

ROTOR ASSEMBLY

88T-85550-00-00

Unavailable

9

COIL, PULSER

88T-85580-01-00

Unavailable

10

SCREW, BIND (705)

98980-06016-00

$8.49

11

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

WASHER, PLAIN (646)

92990-05600-00

$0.80
