- VT480R (VENTURE XL) 88T1 1991
ELECTRICAL 1

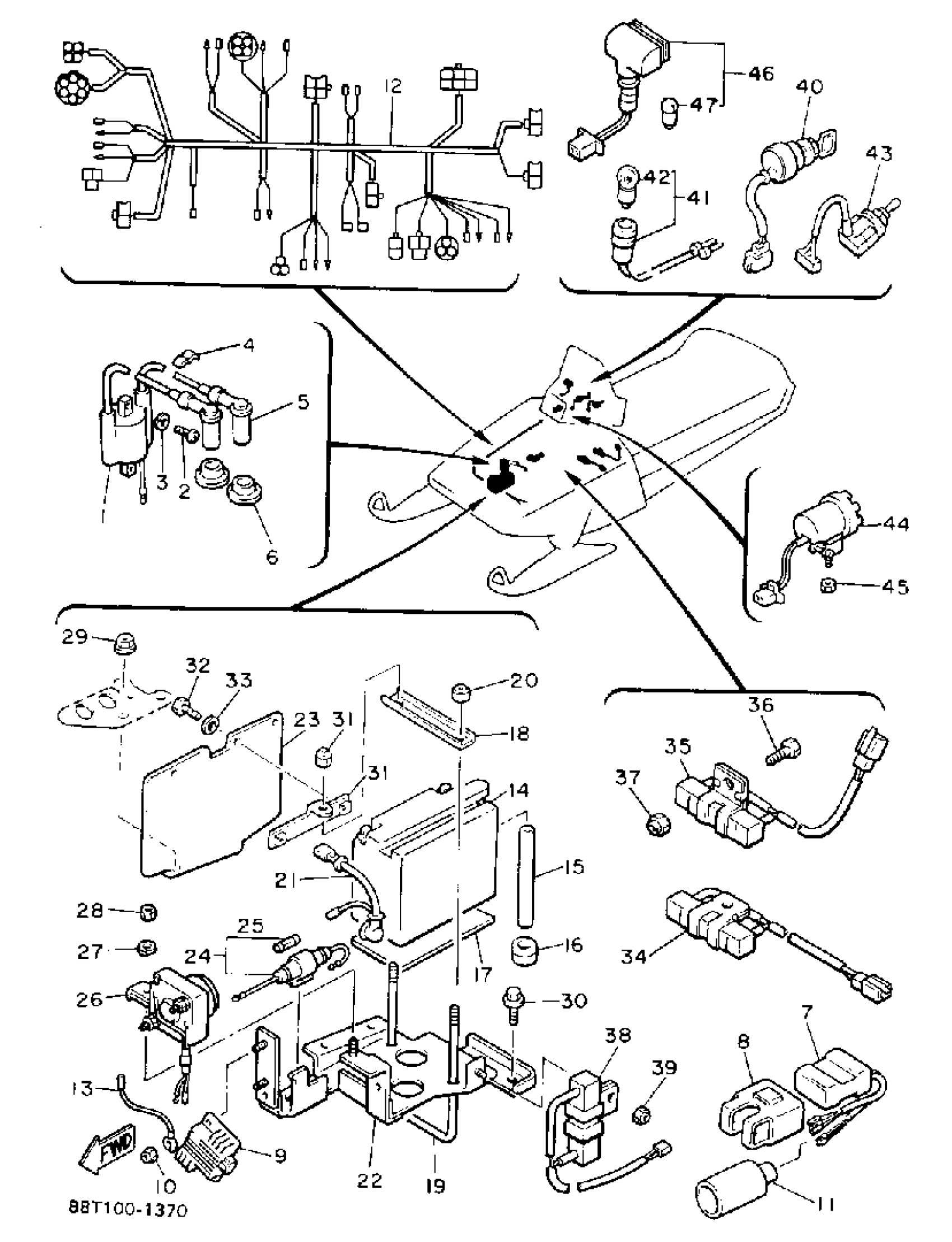

Yamaha VT480R (VENTURE XL) 88T1 1991 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8AB-82310-07-00
$85.99
2
SCREW PAN HEAD
98580-06020-00
$8.49
3
WASHER, SPRING
92995-06100-00
Unavailable
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
85G-82370-20-00
$34.99
6
SEAL, PLUG CAP
8V0-82372-00-00
$4.82
7
C.D.I. UNIT ASSY
88T-85540-01-00
Unavailable
8
BAND
2A7-85546-00-00
Unavailable
9
RECTIFIER & REGULATOR ASSY
22J-81960-92-00
Unavailable
10
NUT, NYLON
95707-05300-00
$4.24
11
COVER, CONNECTER
8Y0-82599-00-00
Unavailable
12
WIRE HARNESS ASSEMBLY
88T-82590-00-00
Unavailable
13
WIRE, SUB LEAD
88T-82509-00-00
Unavailable
14
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
15
PIPE,BREATHER
2RH-21826-00-00
Unavailable
16
GROMMET(3AA)
90480-12497-00
Unavailable
17
. SEAT, BATTERY
82L-82122-00-00
Unavailable
18
PLATE, BATTERY FITTING
8J4-82136-00-00
Unavailable
19
. SCREW, FITTING
8J4-82133-00-00
Unavailable
20
NUT, NYLON
95707-06300-00
Unavailable
21
WIRE PLUS LEAD
84N-82115-00-00
Unavailable
22
BRACKET, BATTERY
88T-2199G-00-00
Unavailable
23
SHIELD, HEAT
8V0-2199H-00-00
Unavailable
24
FUSE HOLDER ASSY
1E6-82150-00-00
Unavailable
25
FUSE (10A)
1E6-82151-00-00
Unavailable
26
. STARTER RELAY ASSY
8J9-81940-10-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
NUT, HEXAGON
95380-06600-00
Unavailable
29
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
30
BOLT, FLANGE
95817-06012-00
Unavailable
31
. BRACKET, BATTERY
8V0-82128-00-00
Unavailable
32
BOLT (682)
97095-05010-00
Unavailable
33
WASHER, PLAIN (646)
92990-05600-00
Unavailable
34
RESISTOR ASSEMBLY
88T-85370-00-00
Unavailable
35
RESISTOR ASSEMBLY
88T-85390-00-00
Unavailable
36
BOLT(8CP)
97017-06014-00
Unavailable
37
NUT, NYLON
95707-06300-00
Unavailable
38
RESISTOR ASY
89M-85370-00-00
Unavailable
39
NUT, NYLON
95707-06300-00
Unavailable
40
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
41
PILOT LIGHT ASSEMBLY 1
8V0-84301-00-00
Unavailable
42
. BULB (12V5W)
8V0-85353-00-00
Unavailable
43
SWITCH
88H-82917-00-00
Unavailable
44
BUZZER
88T-83383-00-00
Unavailable
45
NUT, U FLANGE
95604-06200-00
Unavailable
46
PILOT LIGHT ASSEMBLY
88T-83530-00-00
Unavailable
47
BULB (12V-3.4W)
123-83516-21-00
Unavailable
