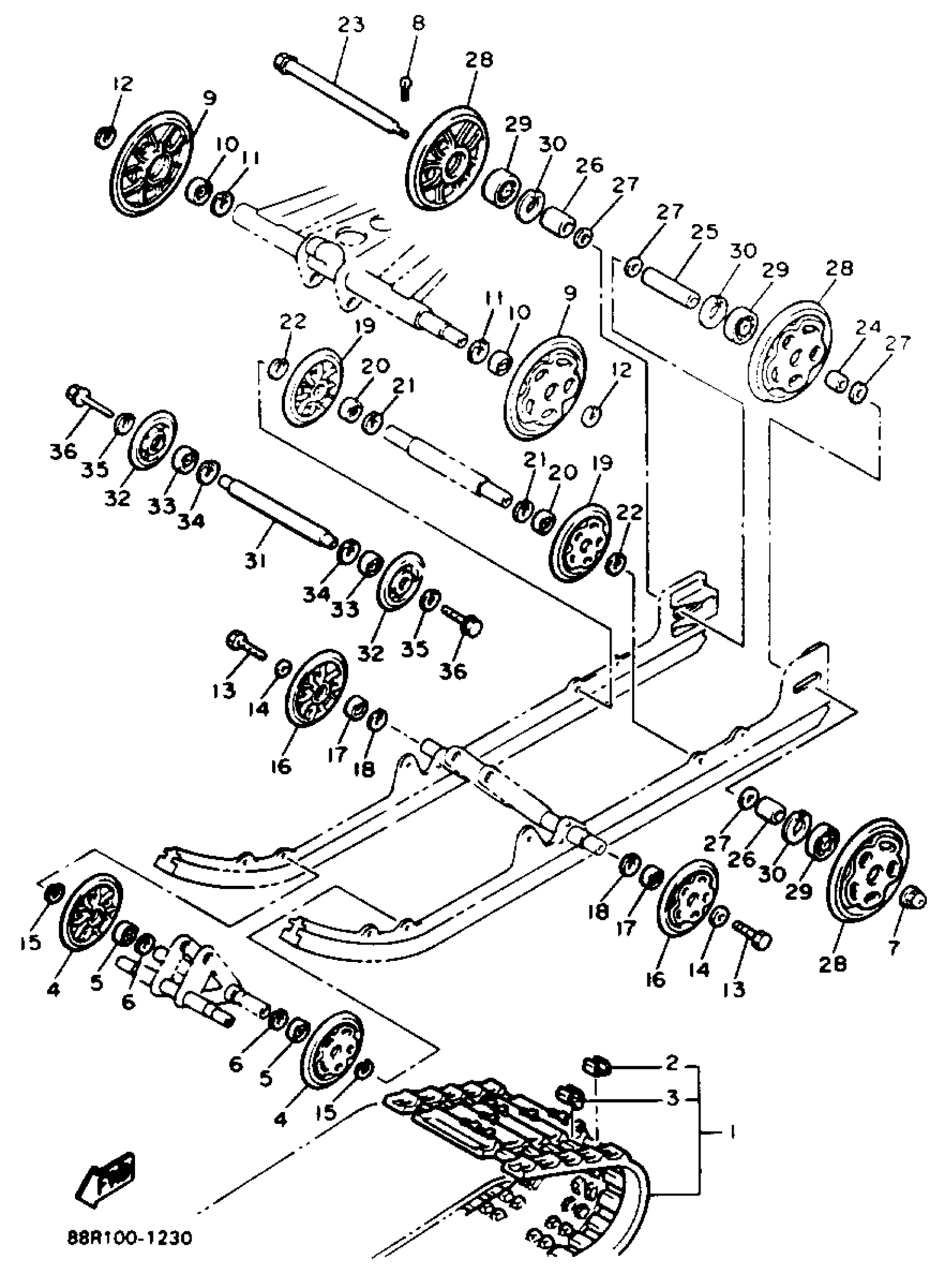

Yamaha VT480GTT (VENTURE GT) 8AP1 1993 TRACK SUSPENSION Diagram

#

Description
Price

1

TRACK ASSEMBLY

82M-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

METAL, SLIDE

8A5-47115-00-00

Unavailable

4

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

5

BEARING(8AB)

93306-00444-00

$41.99

6

CIRCLIP(5U8)

99009-42500-00

$8.49

7

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

8

PIN, COTTER

91490-30030-00

$8.49

9

SUSPENSION WHEEL COMP.

88R-47320-00-00

Unavailable

10

BEARING(8AB)

93306-00444-00

$41.99

11

CIRCLIP(5U8)

99009-42500-00

$8.49

12

CIRCLIP(1AR)

99009-20400-00

$8.49

13

BOLT (8K2)

90109-08559-00

$8.49

14

WASHER (8G1)

90201-08681-00

$7.49

15

CIRCLIP(1AR)

99009-20400-00

$8.49

16

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

17

BEARING(8AB)

93306-00444-00

$41.99

18

CIRCLIP(5U8)

99009-42500-00

$8.49

19

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

20

BEARING(8AB)

93306-00444-00

$41.99

21

CIRCLIP(5U8)

99009-42500-00

$8.49

22

CIRCLIP(1AR)

99009-20400-00

$8.49

23

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

24

COLLAR

90387-204R3-00

Unavailable

25

COLLAR

90387-20023-00

Unavailable

26

COLLAR

90387-20022-00

Unavailable

27

WASHER, PLATE (888)

90201-20279-00

Unavailable

28

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

29

BEARING(8AE)

93306-20469-00

Unavailable

30

CIRCLIP(48Y)

99009-47500-00

Unavailable

31

IDLER

8L1-47461-00-00

Unavailable

32

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

33

BEARING(8AB)

93306-00444-00

$41.99

34

CIRCLIP(5U8)

99009-42500-00

$8.49

35

CIRCLIP(1AR)

99009-20400-00

$8.49

36

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
