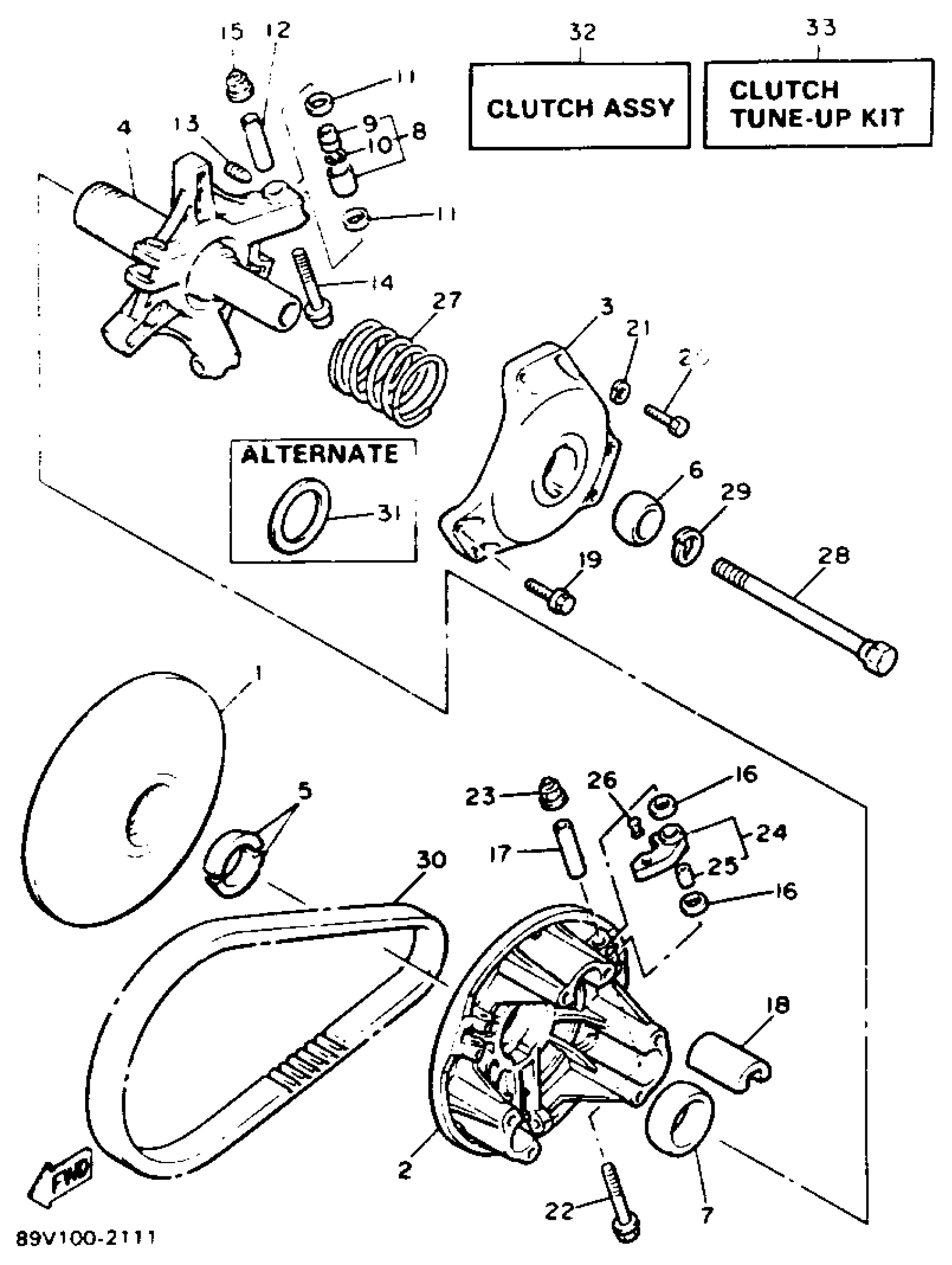

Yamaha VT480GTT (VENTURE GT) 8AP1 1993 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

89F-17611-00-00

Unavailable

2

SHEAVE, PRIMARY SLIDING

89F-17621-00-00

Unavailable

3

CAP

88R-17631-01-00

Unavailable

4

SPIDER COMPLETE

8BW-17640-11-00

Unavailable

5

STOPPER

8V0-17639-00-00

$14.99

6

BUSH(83R)

90389-28032-00

$61.99

7

BUSH(88R)

90389-41031-00

$78.99

8

ROLLER, COMP

88R-17624-01-00

$47.99

9

BUSH(88K)

90386-08183-00

Unavailable

10

CIRCLIP(88K)

93450-13133-00

Unavailable

11

WASHER, PLATE(88R)

90202-08204-00

$9.49

12

COLLAR

90387-0514T-00

$16.99

13

BOLT, SET

90113-05041-00

$8.49

14

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

15

NUT, S/L FLANGE

95607-05200-00

$9.49

16

WASHER, PLATE(88R)

90202-08204-00

$9.49

17

COLLAR

90387-0514T-00

$16.99

18

SLIDER

88R-17653-01-00

Unavailable

19

BOLT(89J)

90109-066F4-00

Unavailable

20

BOLT, HEXAGON

97017-06030-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

23

NUT, S/L FLANGE

95607-05200-00

$9.49

24

WEIGHT COMP

89F-17605-00-00

Unavailable

25

. BUSH, SOLID

90380-08244-00

Unavailable

26

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

Unavailable

26

RIVET, COUNTERSUNK HEAD(88R)

90261-06028-00

Unavailable

27

SPRING, COMPRESSION(89F)

90501-507G2-00

Unavailable

27

SPRING, COMPRESSION(89F)

90501-527G1-00

Unavailable

27

SPRING, COMPRESSION(89F)

90501-556G5-00

Unavailable

27

SPRING, COMPRESSION(89F)

90501-556G6-00

Unavailable

27

SPRING, COMPRESSION(89F)

90501-556G7-00

Unavailable

27

SPRING, COMPRESSION(89F)

90501-606G9-00

Unavailable

27

SPRING, COMPRESSION(89F)

90501-607G0-00

Unavailable

28

. BOLT (L=1653MM)

88R-17647-00-00

Unavailable

29

WASHER(JN5)

92907-16100-00

Unavailable

30

V-BELT

89L-17641-02-00

Unavailable

31

WASHER, PLATE(88S)

90201-483P9-00

Unavailable

32

CLUTCH ASSEMBLY

89F-17601-09-00

Unavailable

33

CLUCH TUNE-UP KIT (R)

88R-00000-51-00

Unavailable
