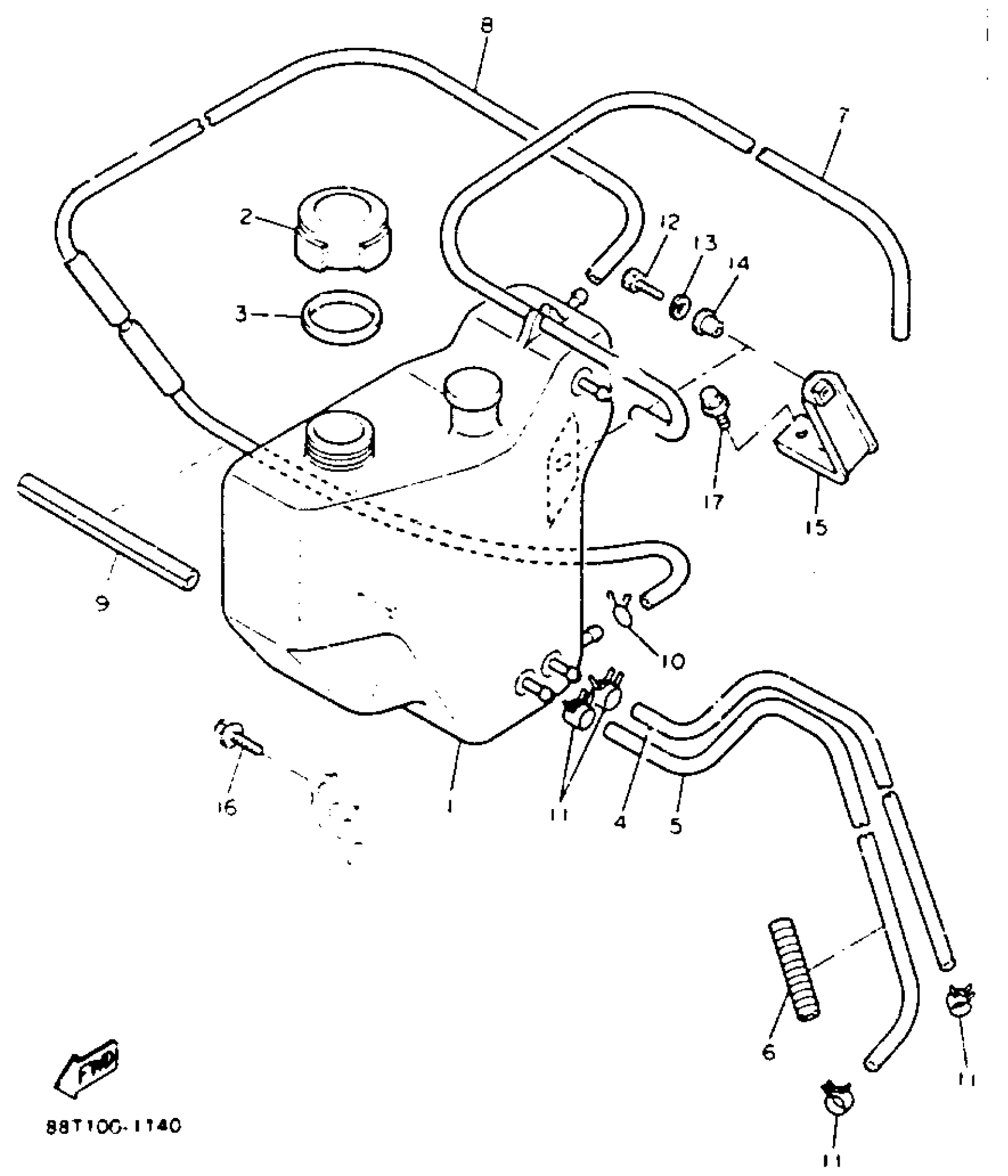

Yamaha VT480GTT (VENTURE GT) 8AP1 1993 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

88T-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$23.45

3

GASKET, TANK (867)

90430-31003-00

$7.24

4

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$8.20

5

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$8.20

6

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

7

HOSE

90446-09353-00

Unavailable

8

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

9

PROTECTOR, PIPE

88T-24326-00-00

Unavailable

10

CLIP (8L2)

90467-08017-00

$6.99

11

CLIP (8A1)

90467-09026-00

$2.55

12

BOLT, HEXAGON

97017-06020-00

$2.37

13

WASHER, SPRING

92995-06100-00

$2.95

14

COLLAR (8G8)

90387-06681-00

$6.17

15

BRACKET, OIL TANK 2

88T-2193F-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

BOLT, FLANGE

95817-08012-00

Unavailable
