Description

Price

1

BUMPER, FRONT 1

89V-77511-00-00

Unavailable

2

EMBLEM, YAMAHA

99246-00100-00

$17.99

3

SPACER, BUMPER

8AN-77529-00-00

Unavailable

4

. PLATE 1

88T-77185-00-00

Unavailable

5

STAY 1

87F-77125-00-00

Unavailable

6

STAY 2

87F-77126-00-00

Unavailable

7

BOLT, WING(8W1)

90122-05022-00

$7.49

8

PIN, COTTER

91490-16020-00

Unavailable

9

. WASHER, PLATE

90202-05088-00

Unavailable

10

LABEL,WARNING 2

8BE-77762-00-00

Unavailable

11

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

12

BUMPER, REAR 1

87F-77541-00-00

Unavailable

13

BUMPER, REAR 2

87F-77542-00-00

Unavailable

14

BOLT, FLANGE

95817-08012-00

$5.49

15

SCREW, BIND(J36)

98980-08025-00

$5.60

16

WASHER(JN5)

92907-08100-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

Unavailable

18

RIVET, BLIND

90267-48117-00

Unavailable

19

FLAP

8V9-77595-00-00

Unavailable

20

RIVET, BLIND (8R6)

90267-48086-00

Unavailable

21

PROTECTOR 6

89X-77556-00-00

Unavailable

22

PROTECTOR 1

82M-77551-00-00

Unavailable

23

RIVET (8M6)

90269-04025-00

Unavailable

24

PROTECTOR 4

82M-77554-01-00

Unavailable

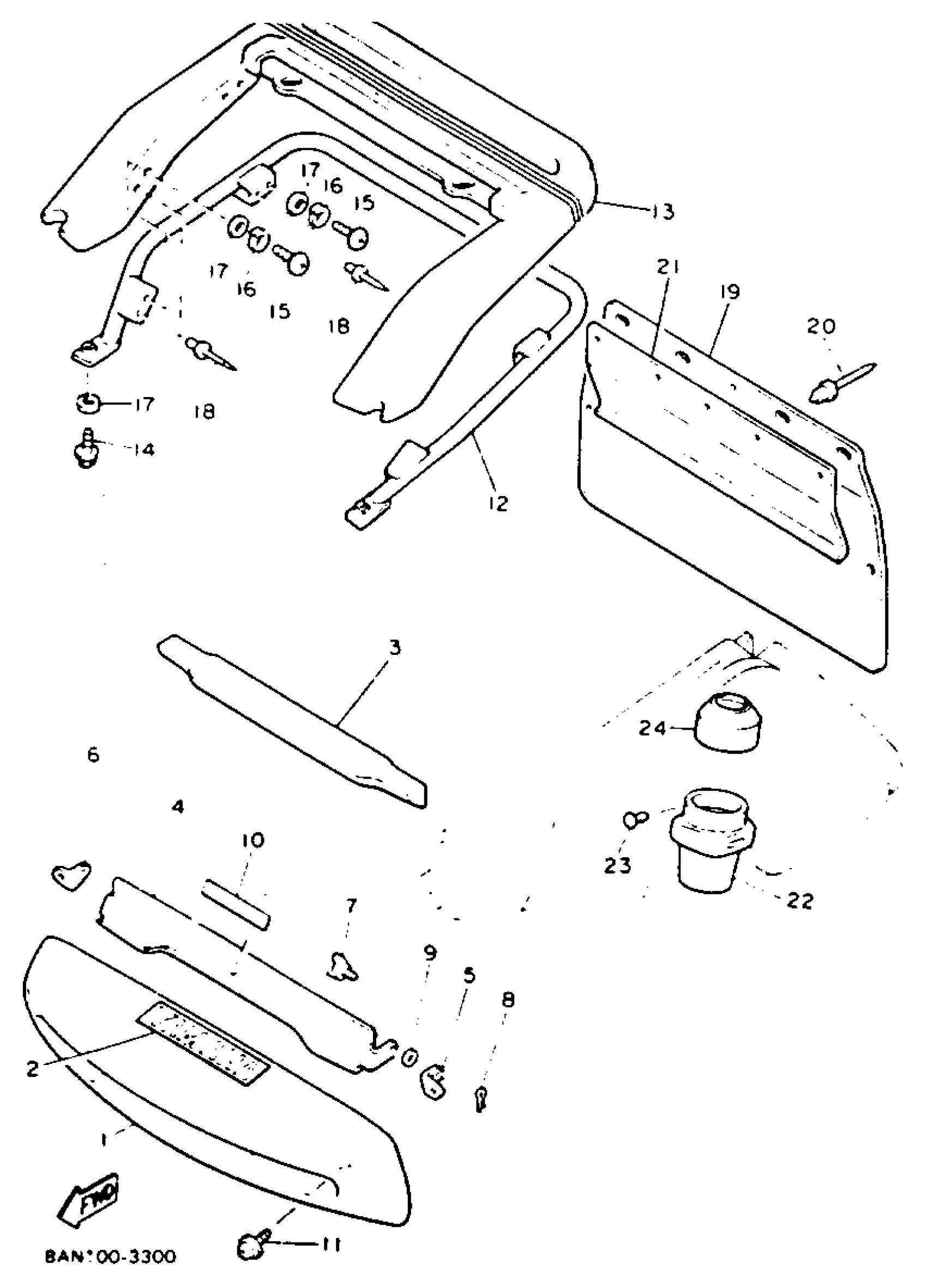

Yamaha VT480GTT (VENTURE GT) 8AP1 1993 BUMPER Diagram

BUMPER, FRONT 1

EMBLEM, YAMAHA

SPACER, BUMPER

. PLATE 1

STAY 1

STAY 2

BOLT, WING(8W1)

PIN, COTTER

. WASHER, PLATE

LABEL,WARNING 2

SCREW, W/WASHER (4L0)

BUMPER, REAR 1

BUMPER, REAR 2

BOLT, FLANGE

SCREW, BIND(J36)

WASHER(JN5)

WASHER, PLAIN

RIVET, BLIND

FLAP

RIVET, BLIND (8R6)

PROTECTOR 6

PROTECTOR 1

RIVET (8M6)

PROTECTOR 4
