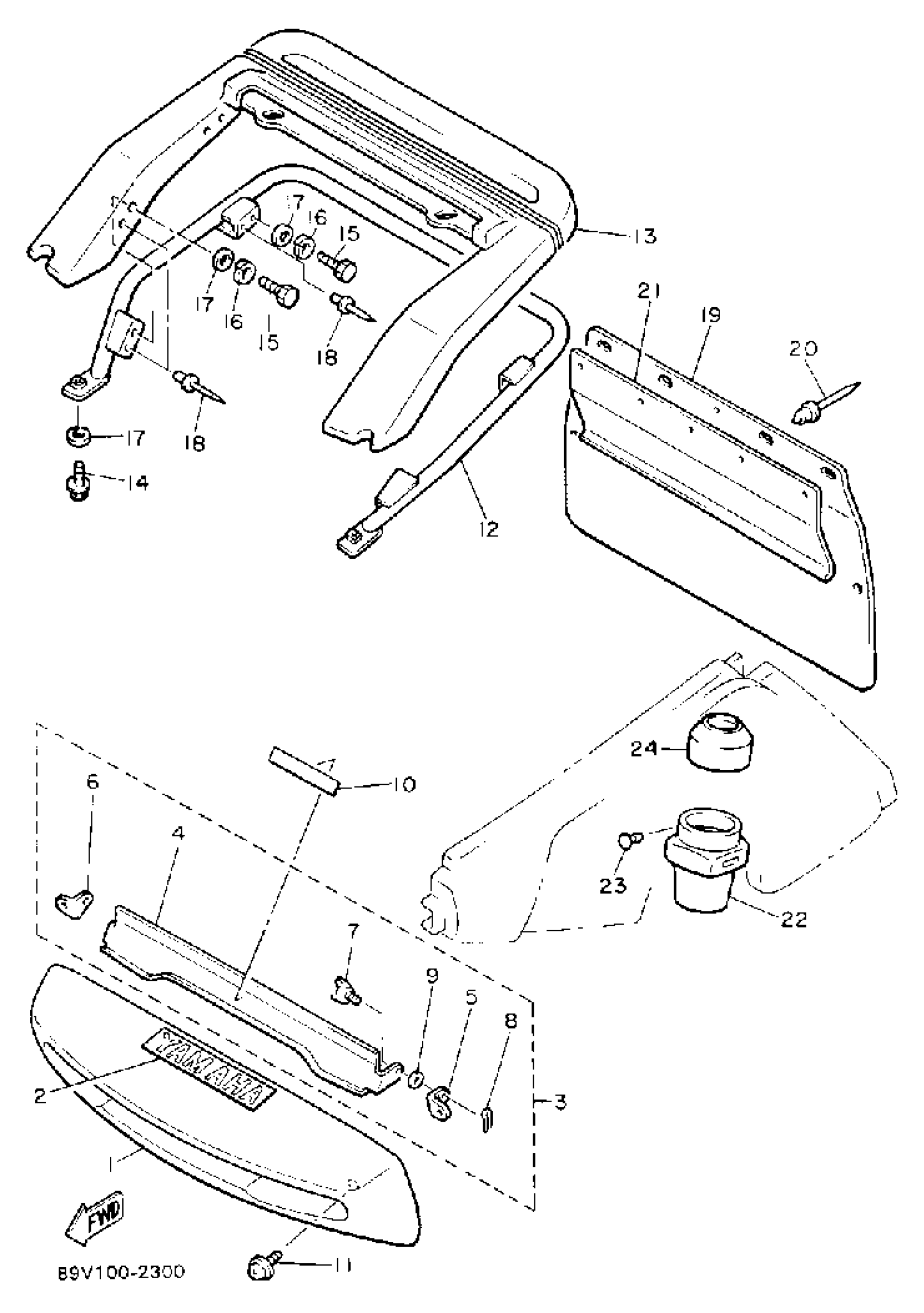

Yamaha VT480GTS (VENTURE GT) 89V1 1992 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

89V-77511-00-00

Unavailable

2

EMBLEM, YAMAHA

99245-00100-00

Unavailable

3

LOUVER CMPLT

88T-77130-00-00

Unavailable

4

. PLATE 1

88T-77185-00-00

Unavailable

5

STAY 1

87F-77125-00-00

Unavailable

6

STAY 2

87F-77126-00-00

Unavailable

7

BOLT, WING(8W1)

90122-05022-00

$7.49

8

PIN, COTTER

91490-16020-00

Unavailable

9

. WASHER, PLATE

90202-05088-00

Unavailable

10

LABEL,WARNING 2

8BE-77762-00-00

Unavailable

11

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

12

BUMPER, REAR 1

87F-77541-00-00

Unavailable

13

BUMPER, REAR 2

87F-77542-00-00

Unavailable

14

BOLT, FLANGE

95817-08012-00

$5.49

15

SCREW, BIND(J36)

98980-08025-00

$5.60

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

Unavailable

18

RIVET, BLIND

90267-48117-00

Unavailable

19

FLAP

8V9-77595-00-00

Unavailable

20

RIVET, BLIND (8R6)

90267-48086-00

Unavailable

21

UNAVAILABLE IN PRICE BOOK

89X-77550-00-00

Unavailable

22

PROTECTOR 1

82M-77551-00-00

Unavailable

23

RIVET (8M6)

90269-04025-00

Unavailable

24

PROTECTOR 4

82M-77554-01-00

Unavailable
