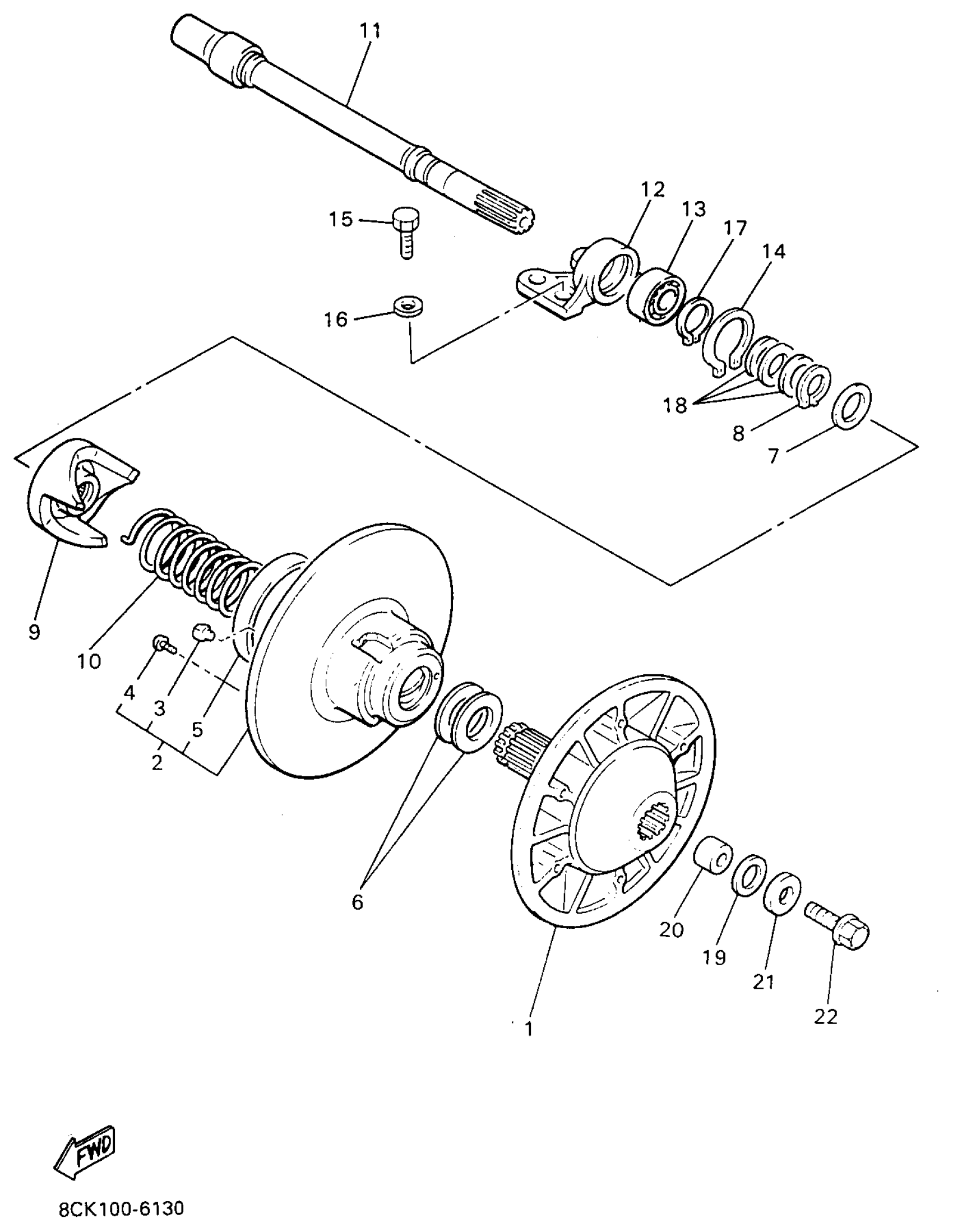

Yamaha VT480A (VENTURE XL) 8BK4 1997 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-12-00

Unavailable

2

SEC SLIDING SHEAVE

8AV-17670-12-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SCREW, BINDING

98907-06016-00

$9.49

5

BUSH, BIMETAL FORMED (90384-90081-00)

90380-90117-00

Unavailable

6

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

7

WASHER, CLAW(88R)

90214-29060-00

$7.49

8

CIRCLIP(86F)

93440-34170-00

$8.49

9

SEAT, SECONDARY SPRING

89N-17684-01-00

Unavailable

10

SPRING, TORSION (8U7)

90508-50571-00

$11.49

11

SHAFT, SECONDARY

88T-17680-01-00

Unavailable

12

HOUSING, BEARING

85L-47631-00-00

Unavailable

13

BEARING(83R)

93306-20582-00

$58.99

14

CIRCLIP(26H)

99009-52500-00

$12.49

15

BOLT, HEXAGON

97017-08020-00

$9.49

16

WASHER(6TA)

92907-08600-00

Unavailable

17

CIRCLIP (256)

93410-25017-00

Unavailable

18

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

18

WASHER, PLATE (888)

90201-25526-00

Unavailable

18

WASHER, PLATE (888)

90201-25527-00

Unavailable

19

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

19

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

20

COLLAR

90387-147A8-00

Unavailable

21

WASHER, PLATE

90201-14022-00

Unavailable

22

BOLT, WASHER BASED

90105-14175-00

Unavailable
