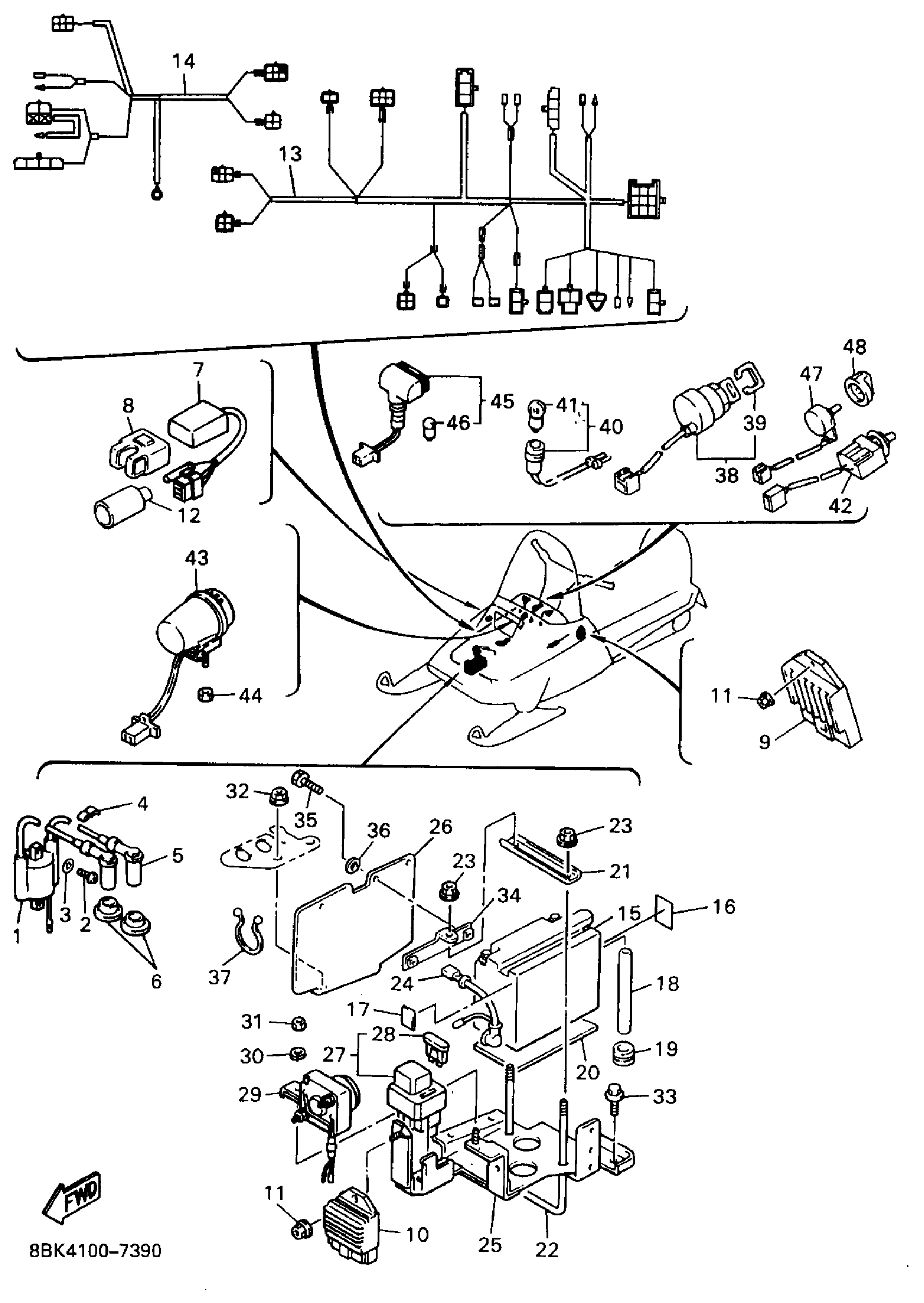

Yamaha VT480A (VENTURE XL) 8BK4 1997 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8AB-82310-07-00

$85.99

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

85G-82370-20-00

$34.99

6

SEAL, PLUG CAP

8V0-82372-00-00

$4.82

7

C.D.I. UNIT ASSY

8BK-85540-01-00

Unavailable

8

BAND

2A7-85546-00-00

Unavailable

9

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

10

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

11

NUT, NYLON

95707-06300-00

$3.50

12

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

13

WIRE HARNESS ASSEMBLY

8BK-82590-10-00

Unavailable

14

WIRE HARNESS ASSEMBLY 2

8BK-82580-10-00

Unavailable

15

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

16

LABEL, BATTERY

40A-82141-G0-00

Unavailable

17

DAMPER

22F-2139X-00-00

Unavailable

18

PIPE,BREATHER

2RH-21826-00-00

Unavailable

19

GROMMET(3AA)

90480-12497-00

Unavailable

20

. SEAT, BATTERY

82L-82122-00-00

Unavailable

21

PLATE, BATTERY FITTING

8J4-82136-00-00

Unavailable

22

. SCREW, FITTING

8J4-82133-00-00

Unavailable

23

NUT, NYLON

95707-06300-00

$3.50

24

WIRE PLUS LEAD

84N-82115-00-00

Unavailable

25

BRACKET, BATTERY

89H-2199G-00-00

Unavailable

26

SHIELD, HEAT

8V0-2199H-00-00

Unavailable

27

FUSE HOLDER ASSY

8BE-82150-00-00

Unavailable

28

FUSE (10A)

42X-82151-00-00

Unavailable

29

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

30

WASHER, SPRING

92907-06100-00

Unavailable

31

NUT(6TA)

95317-06600-00

Unavailable

32

NUT,SELF-LOCKING

95607-06200-00

Unavailable

33

BOLT, FLANGE

95817-06010-00

Unavailable

34

. BRACKET, BATTERY

8V0-82128-00-00

Unavailable

35

BOLT

97027-05010-00

Unavailable

36

WASHER(1RW)

92907-05600-00

Unavailable

37

CLAMP (3Y2)

90464-16039-00

Unavailable

38

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

39

CAP, KEY

526-82579-00-00

Unavailable

40

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

41

. BULB (12V5W)

8V0-85353-00-00

Unavailable

42

SWITCH

8JD-82917-00-00

Unavailable

43

BUZZER

8CL-83383-00-00

Unavailable

44

NUT,SELF-LOCKING

95607-06200-00

Unavailable

45

PILOT LIGHT ASSY

88T-83530-01-00

Unavailable

46

BULB (12V3.4W)

123-83516-21-XX

Unavailable

47

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

48

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable
