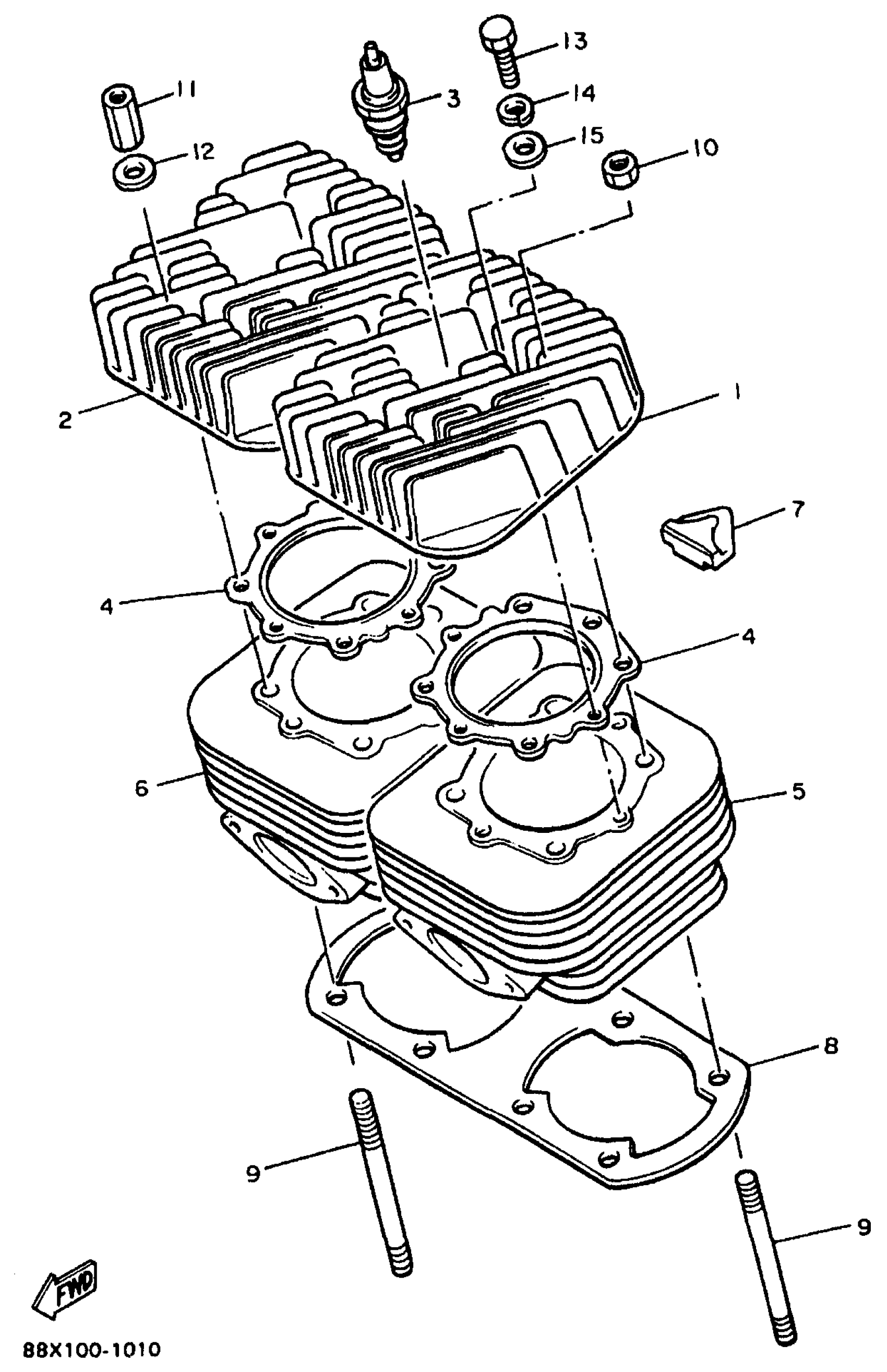

Yamaha VT480A (VENTURE XL) 8BK4 1997 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

8V0-11111-01-00

Unavailable

2

HEAD, CYLINDER 2

8V0-11121-01-00

Unavailable

3

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

$4.03

4

GASKET, CYLINDER HEAD 1

87F-11181-00-00

$27.68

5

CYLINDER 1

8V0-11311-01-00

Unavailable

6

CYLINDER 2

8V0-11321-01-00

Unavailable

7

SEAL, CYLINDER 1

8V0-11355-00-00

Unavailable

8

GASKET, CYLINDER

88F-11351-01-00

$16.35

9

BOLT, STUD

95617-08740-00

Unavailable

10

NUT, FLANGE(JN5)

95707-08500-00

$1.40

11

NUT (8H8)

90179-08269-00

$10.39

12

WASHER, PLATE (397)

90201-08100-00

$5.75

13

BOLT(8BC)

97017-06040-00

$7.05

14

WASHER, SPRING

92907-06100-00

$0.98

15

WASHER(6TA)

92907-06600-00

$0.73
