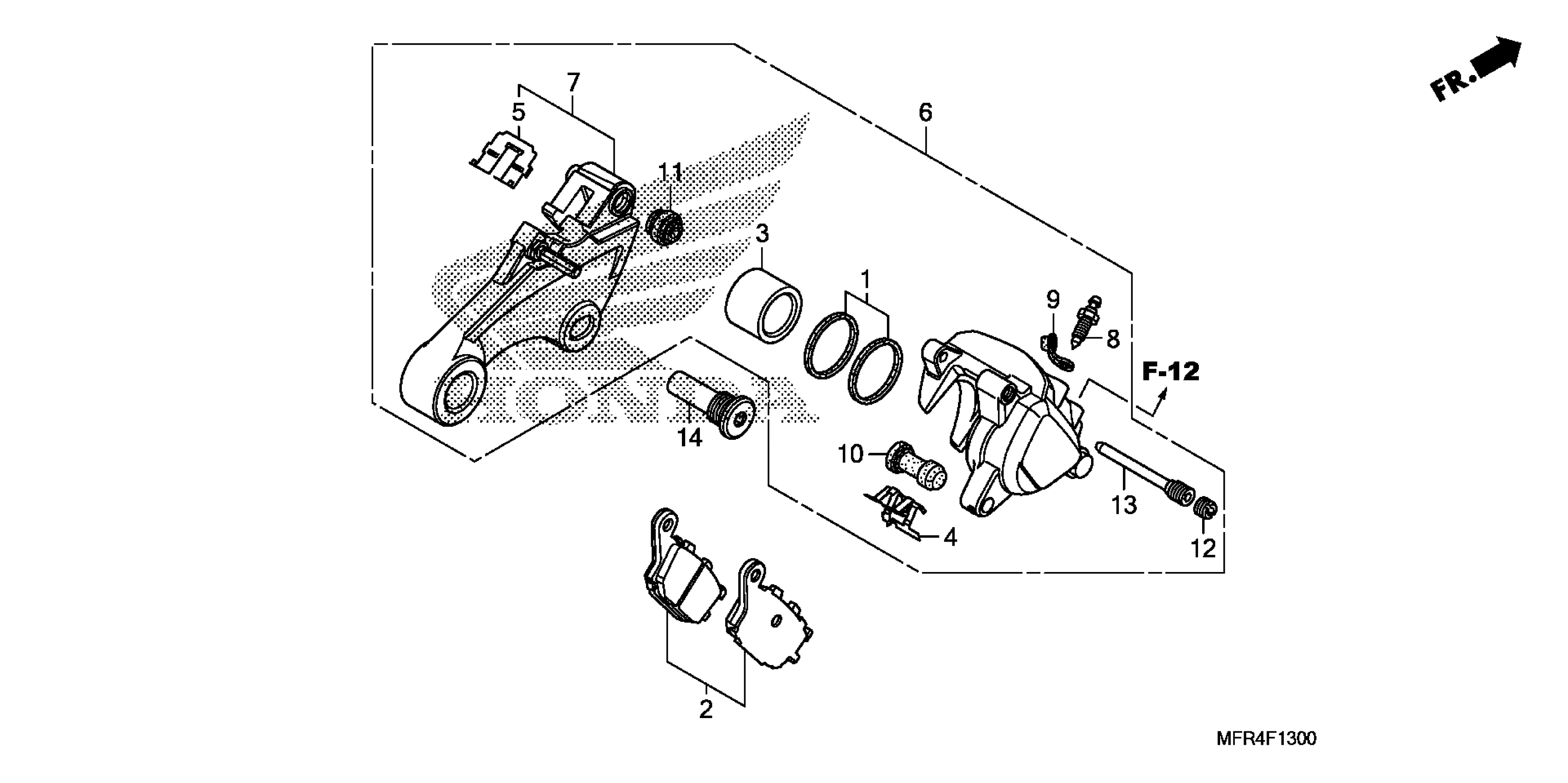

Honda VT1300CXAC (12) FURY, JPN, VIN# JH2SC611-CK200001 REAR BRAKE CALIPER (1) Diagram

#

Description
Price

1

SEAL SET, PISTON

06451-443-405

$13.23

2

PAD SET, RR. This part replaces 43105-MW0-415.

43105-MW0-425

$53.45

2

PAD SET, RR.

43105-MW0-425

$53.45

3

PISTON

43107-KT7-761

$37.87

4

SPRING, PAD

43108-KT7-761

$8.68

5

RETAINER

43112-MV9-016

$10.65

6

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MFR-671

$338.54

7

BRACKET SUB-ASSY., RR.

43190-MFR-671

$140.97

8

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

9

CAP, BLEEDER

43353-461-771

$5.05

10

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

11

BOOT B

45133-MA3-006

$5.46

12

PLUG, PIN

45203-MG3-016

$5.12

13

PIN, HANGER (NISSIN)

45215-ML7-922

$10.67

14

BOLT, BRAKE STOPPER

90158-MFR-670

$15.25
