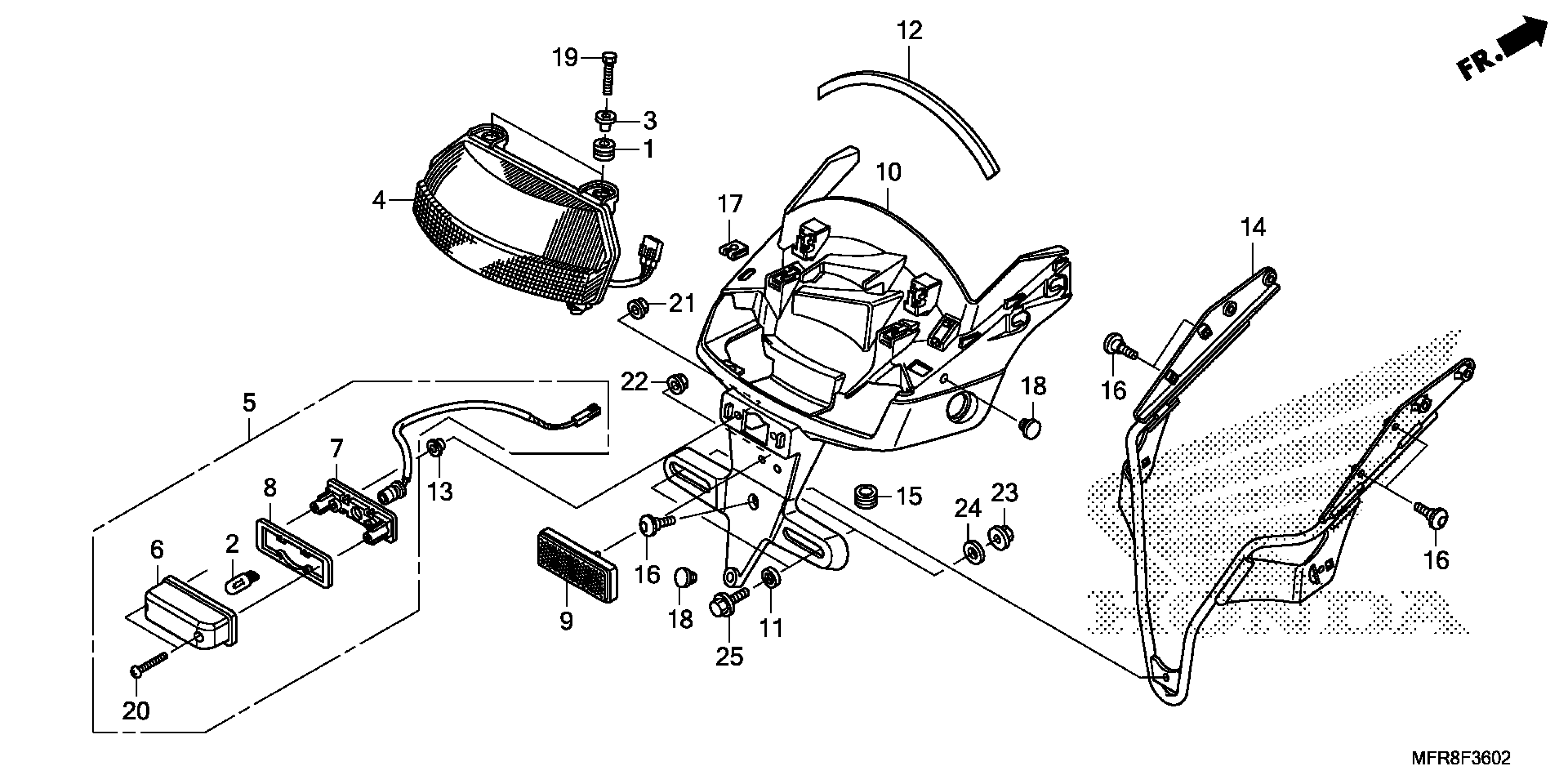

Honda VT1300CXAAC (14) VT1300CXA, JPN, VIN# JH2SC618-EK300001 TAILLIGHT@LICENSE LIGHT (3) Diagram

RUBBER, MOUNTING

19639-GBC-000

$1.49

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

COLLAR C, RR. TURN SIGNAL

33614-MEC-650

$2.56

TAILLIGHT UNIT (STANLEY) This part replaces 33701-MFR-305.

33701-MFR-671

$280.03

TAILLIGHT UNIT (STANLEY)

33701-MFR-671

$280.03

LIGHT ASSY., LICENSE (12V 5W) (STANLEY) This part replaces 33720-MFR-305.

33720-MFR-671

$63.52

LIGHT ASSY., LICENSE (12V 5W) (STANLEY)

33720-MFR-671

$63.52

COVER, LICENSE (COO)

33721-MFR-305

$14.74

BASE, LICENSE

33723-MCZ-671

$20.54

GASKET, LENS

33729-MCZ-003

$9.48

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

FENDER A, RR.

80101-MFR-670

$30.56

COLLAR, TAILLIGHT

80104-065-000

$2.83

MOUL, RR. FENDER COVER

80104-MFE-670

$8.49

COLLAR, RR. FENDER

80114-KG7-000

$4.28

STAY A, RR. FENDER

80132-MFR-670

$140.21

GROMMET

83551-MB9-000

$2.44

SCREW, PAN (6X13)

90124-MY6-670

$2.61

NUT, SPRING (5MM)

90320-GC3-000

$2.20

PLUG, HOLE

90852-446-630

$2.56

BOLT, HEX. (5X16)

93101-05016-0G

$1.49

SCREW, TAPPING (4X16)

93901-24480

$1.49

NUT, FLANGE (5MM)

94050-05000

$1.49

NUT, FLANGE (5MM)

94050-05070

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
