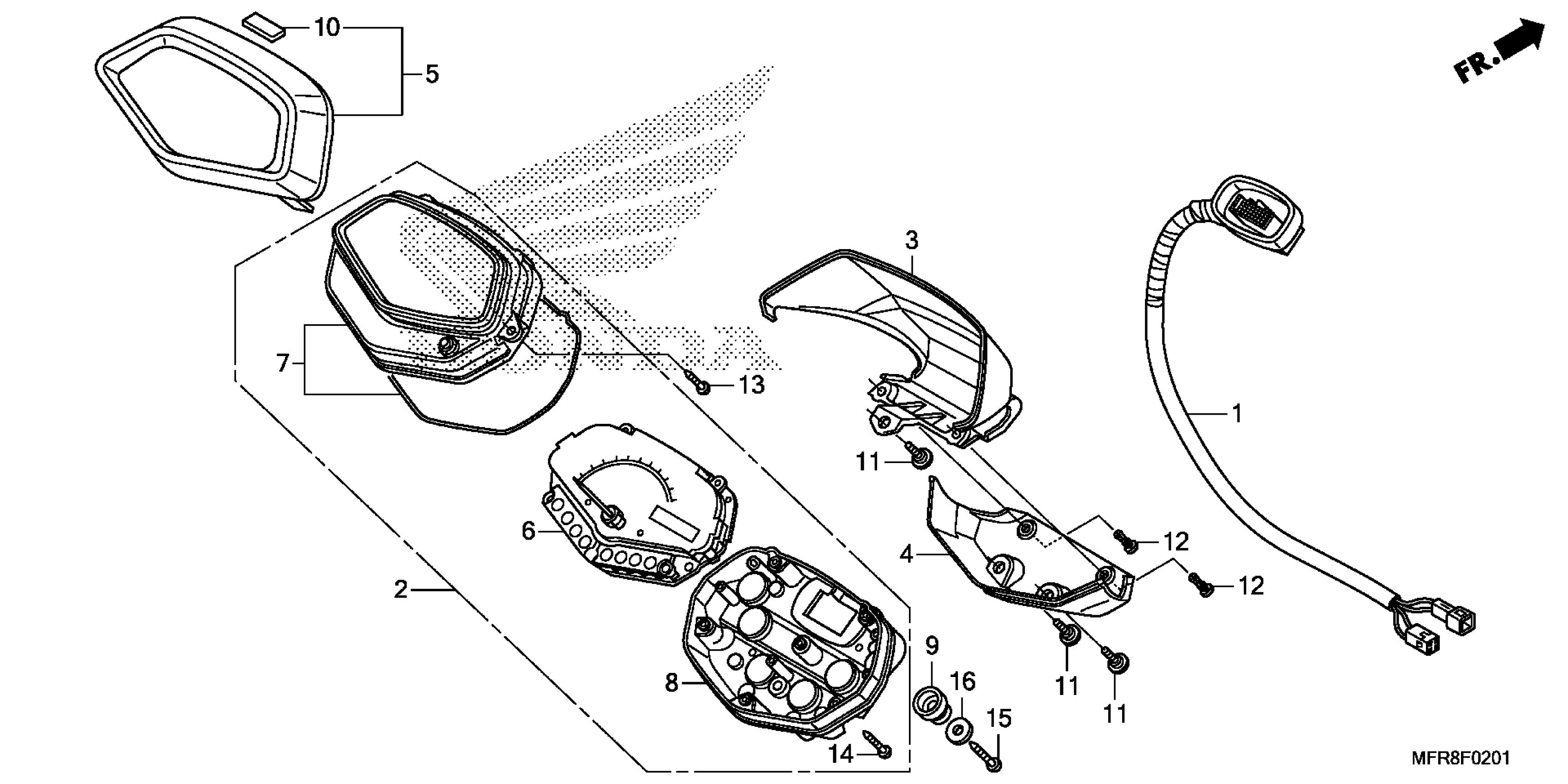

Honda VT1300CXAAC (14) VT1300CXA, JPN, VIN# JH2SC618-EK300001 SPEEDOMETER (2) Diagram

SUB-HARNESS, METER

32103-MFR-A00

$53.93

SPEEDOMETER ASSY. (MPH/KPH)(COO)

37200-MFR-316

$909.37

COVER, FR. METER

37204-MFR-680

$60.60

COVER, RR. METER

37205-MFR-670

$8.44

COVER, METER RING

37206-MFR-680

$57.94

METER, COMBINATION

37212-MFR-A02

$771.66

CASE, METER (UPPER)

37213-MFR-671

$56.35

CASE, METER (LOWER)

37214-MFR-671

Unavailable

RUBBER, METER CUSHION

37215-MA6-008

$2.83

CUSHION, SPARK UNIT

84102-ML7-000

$2.68

SCREW, PAN (5X13)

90112-MBS-000

$2.24

CLIP, PANEL FIXING

90671-MCA-000

$1.88

SCREW, TAPPING (4X10)

93901-24220

$3.53

SCREW, TAPPING (3X16)

93903-22420

$0.99

SCREW, TAPPING (5X14) (PO)

93913-25380

$0.90

WASHER, PLAIN (5MM)

94103-05700

$0.87
