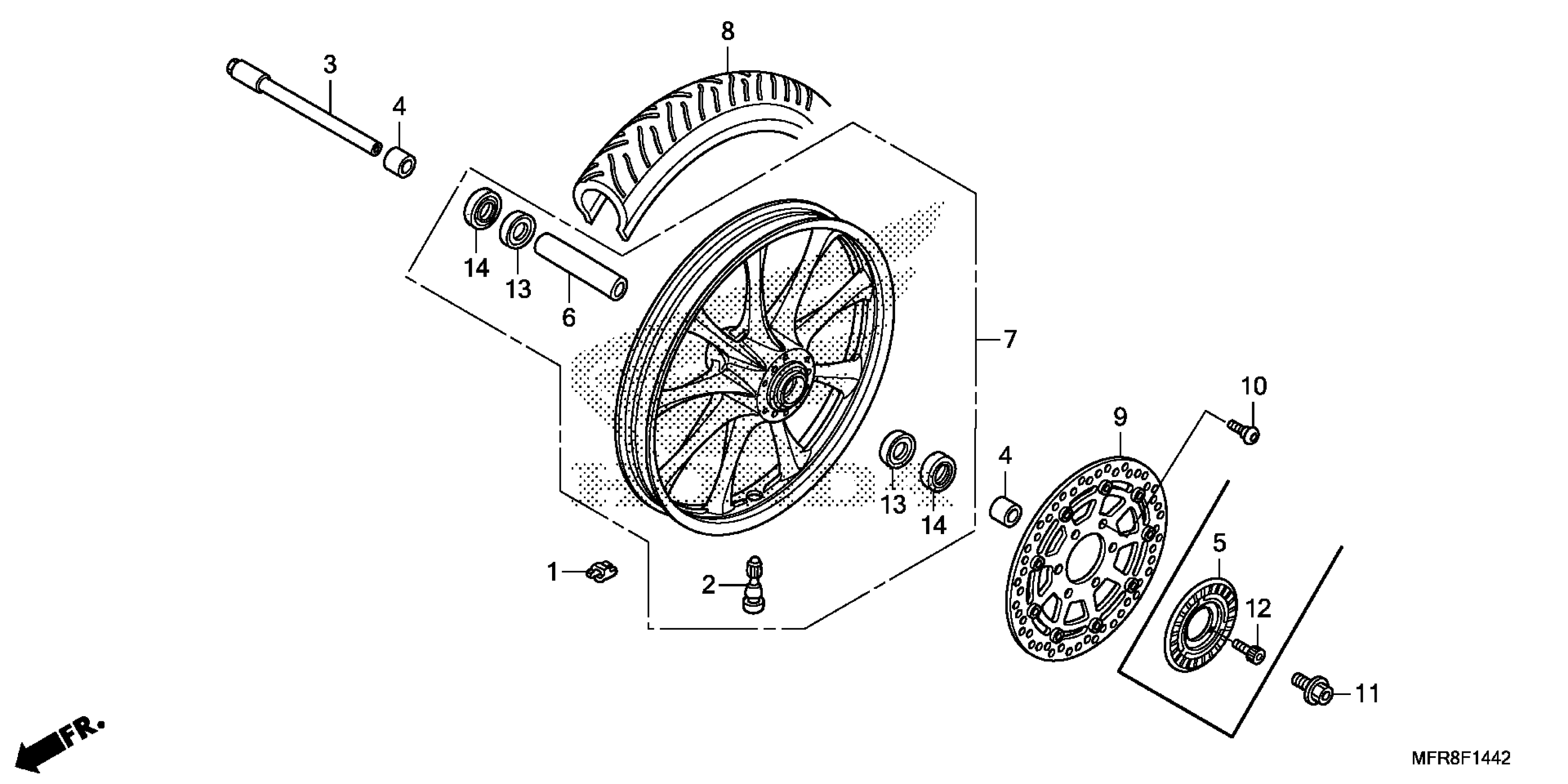

Honda VT1300CXAAC (14) VT1300CXA, JPN, VIN# JH2SC618-EK300001 FRONT WHEEL (3) Diagram

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

VALVE, RIM (PIRELLI) (NOT AVAILABLE)

42753-MCF-008

$7.28

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-MFR-670

$93.05

COLLAR, L. FR. WHEEL SIDE

44311-MCH-A00

$13.04

RING, FR. PULSER (RR.)

44515-MFR-A00

$147.22

COLLAR, FR. AXLE DISTANCE

44620-MFR-670

$19.39

WHEEL SUB-ASSY., FR. (COO)

44650-MFR-406

$1,203.44

TIRE, FR. (90/90-21 M/C 54H) (METZELER)

44711-MFR-673

Unavailable

TIRE, FR. This part replaces 44711-MFR-674.

44711-MFR-676

$198.86

TIRE, FR.

44711-MFR-676

$198.86

DISK, FR. BRAKE

45120-MFR-681

$639.92

BOLT, DISK (8X22)

90105-KFK-000

$3.04

BOLT, FR. AXLE

90105-MBT-610

$5.76

BOLT, TORX (5X10)

90131-KFK-630

$3.03

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

DUST SEAL (30X52X7)

91253-442-003

$13.96
