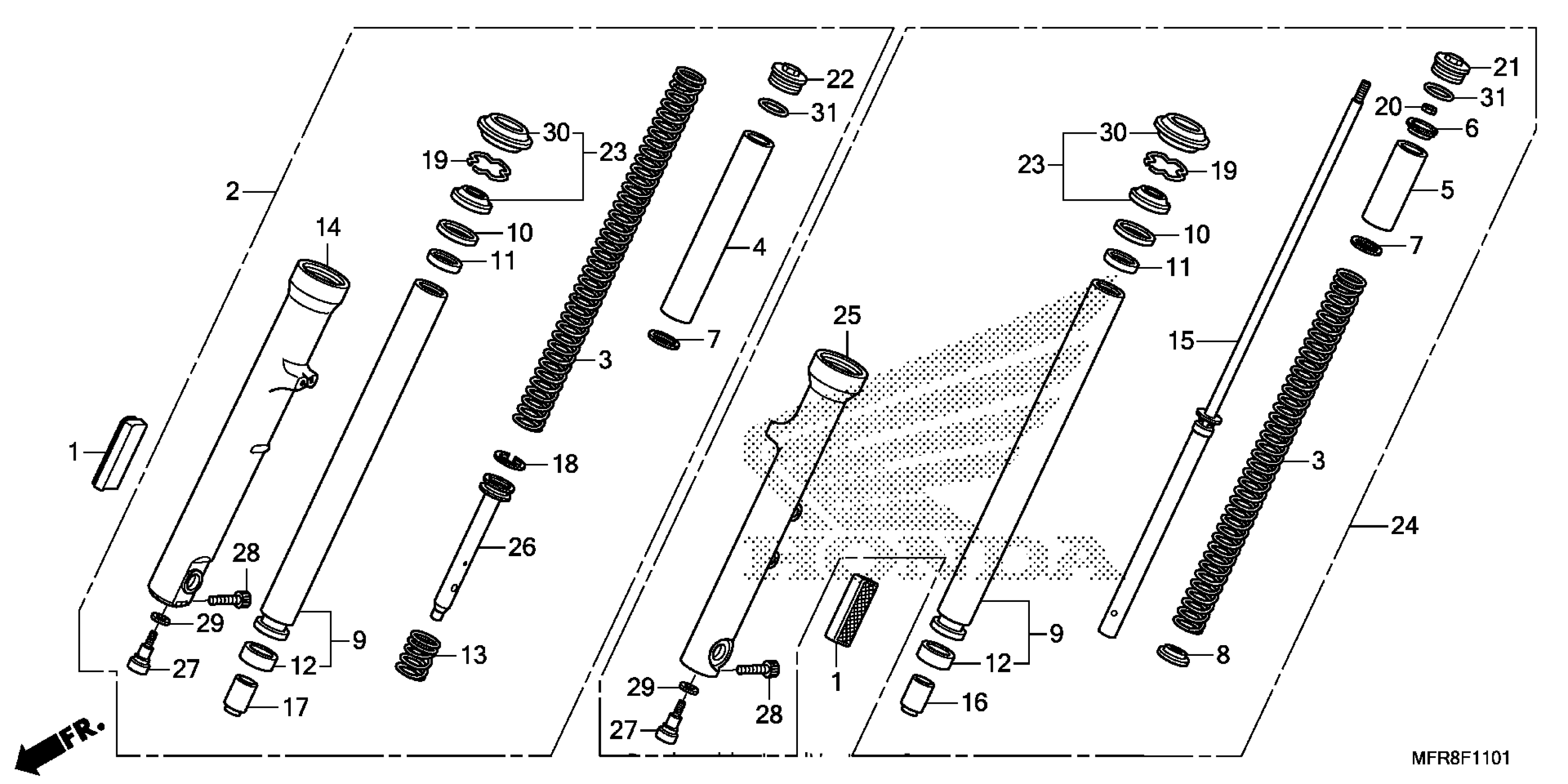

Honda VT1300CXAAC (14) VT1300CXA, JPN, VIN# JH2SC618-EK300001 FRONT FORK (2) Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-MFR-B11

$31.75

2

FORK ASSY., R. FR. (COO) (SHOWA)

51400-MFR-306

$835.77

2

FORK ASSY., R. FR. (COO) (SHOWA) This part replaces 51400-MFR-681.

51400-MFR-306

$835.77

3

SPRING, FR. FORK

51401-MFR-671

$74.94

4

COLLAR, SPRING

51402-MFR-671

$17.88

5

COLLAR, SPRING (R. SIDE)

51402-ML7-921

$24.03

6

SEAT, SPRING

51404-MR7-003

$10.28

7

SEAT, SPRING

51405-KA4-711

$5.80

8

COLLAR, SPRING

51405-MCZ-D11

$6.36

9

PIPE, FR. FORK

51410-MFR-671

$414.14

10

RING, BACK-UP

51412-KZ3-003

$8.46

11

BUSH, GUIDE

51414-MFR-671

$19.32

12

BUSH, SLIDER

51415-MFR-671

$10.35

13

SPRING, FR. REBOUND

51416-MFR-671

$7.55

14

CASE, R. (LOWER)

51420-MFR-681

$378.68

15

DAMPER, FR.

51430-MFR-671

$243.48

16

PIECE, OIL LOCK (SHOWA)

51432-MS2-003

$29.04

17

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$22.28

18

RING, PISTON

51437-MCA-003

$7.08

19

RING, OIL SEAL STOPPER

51447-KZ3-003

$4.76

20

NUT, HEX. (10MM)

51451-MAJ-G41

$2.64

21

BOLT, FR. FORK

51454-MBR-003

$29.05

22

BOLT, FR. FORK

51454-MCA-003

$15.94

23

SEAL SET, FR. FORK

51490-MFR-671

$26.94

24

FORK ASSY., L. FR. (COO) (SHOWA)

51500-MFR-306

$835.77

24

FORK ASSY., L. FR. (COO) (SHOWA) This part replaces 51500-MFR-681.

51500-MFR-306

$835.77

25

CASE, L. (LOWER)

51520-MFR-681

$378.68

26

PIPE, SEAT

51540-MFR-671

$32.99

27

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$4.77

28

BOLT, SOCKET (8X32)

90122-MCH-A00

$1.99

29

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.61

30

DUST SEAL

91254-MCH-C11

$11.48

31

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.67
