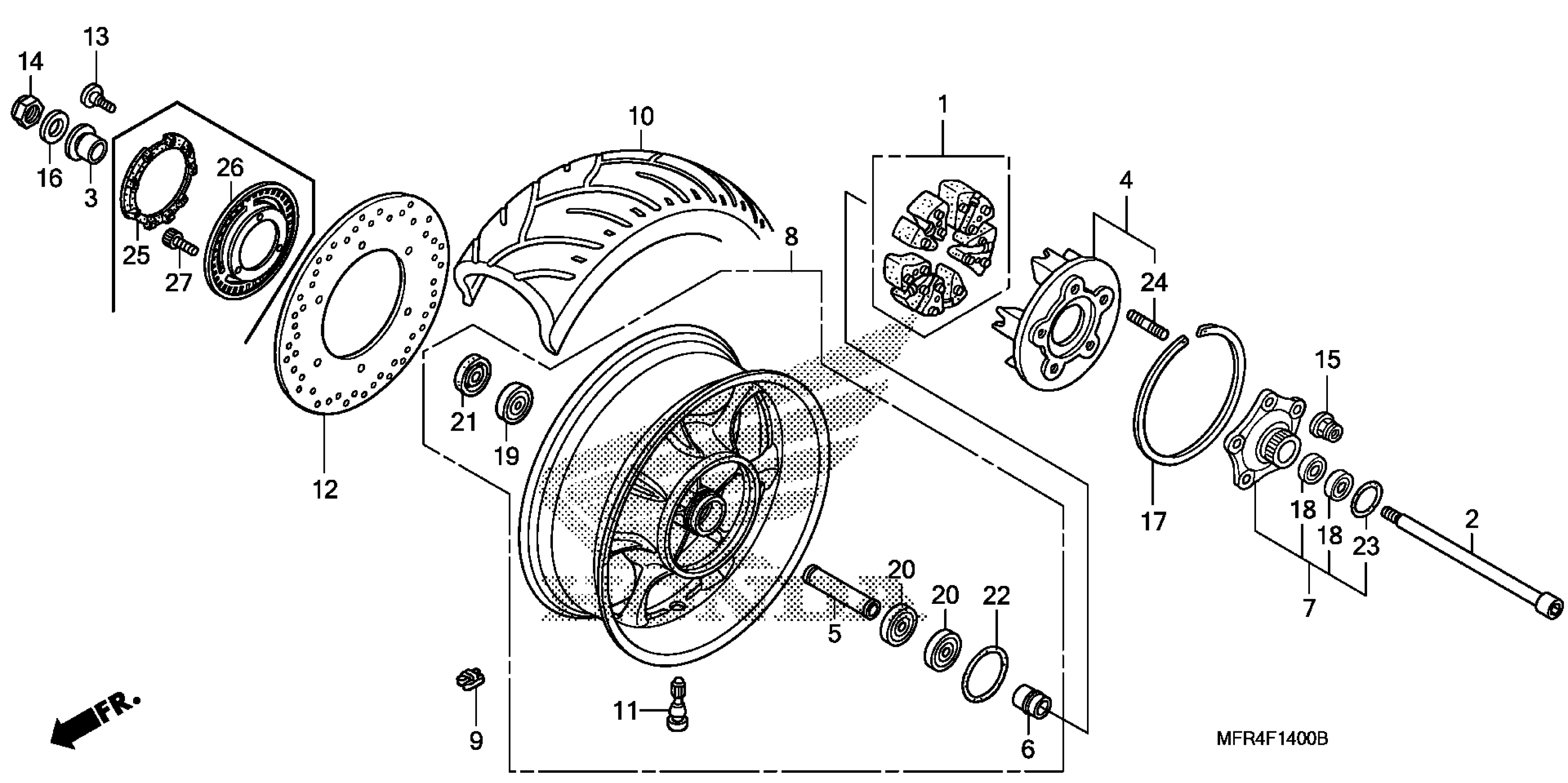

Description

Price

1

DAMPER SET, WHEEL

06410-MAZ-000

$58.81

2

AXLE, RR. WHEEL

42301-MFR-670

$67.00

3

COLLAR, RR. WHEEL

42312-MFR-670

$47.13

4

FLANGE B, FINAL DRIVEN

42614-MCH-000

$251.03

5

COLLAR, RR. AXLE DISTANCE

42620-MFR-670

$34.46

6

COLLAR A, RR. AXLE DISTANCE

42624-MFR-670

$27.72

7

FLANGE SET, FINAL DRIVEN

42630-MCH-000

$292.02

8

WHEEL SUB-ASSY., RR. (COO) This part replaces 42650-MFR-A00.

42650-MFR-307

$1,160.72

8

WHEEL SUB-ASSY., RR. (COO)

42650-MFR-307

$1,160.72

9

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

9

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

9

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

10

TIRE, RR. (200/50R18 M/C 76H) (DUNLOP) (NOT AVAILABLE)

42711-MFR-671

Unavailable

11

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

12

DISK, RR. BRAKE

43251-MFR-A01

$426.28

13

BOLT, FR. DISK (8X24) (SAGA)

90105-KL8-741

$5.90

14

NUT, U (22MM) This part replaces 90305-MCF-D00.

90305-MCF-D01

$7.70

14

NUT, U (22MM)

90305-MCF-D01

$7.70

15

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

16

WASHER (22X38X2.5)

90401-MAZ-000

$5.56

17

CIRCLIP (INNER) (188)

90651-MCH-000

$17.70

18

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

19

BEARING, RADIAL BALL (6205X2)

91053-MAZ-003

$17.90

20

BEARING, RADIAL BALL (60/28)

91053-MFR-671

$18.72

21

DUST SEAL (35X52X7.5)

91254-MEE-003

$6.91

22

O-RING (61X2)

91302-MA6-003

$5.17

23

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76

23

O-RING (50.5X3.5) (ARAI) This part replaces 91358-MG9-004.
