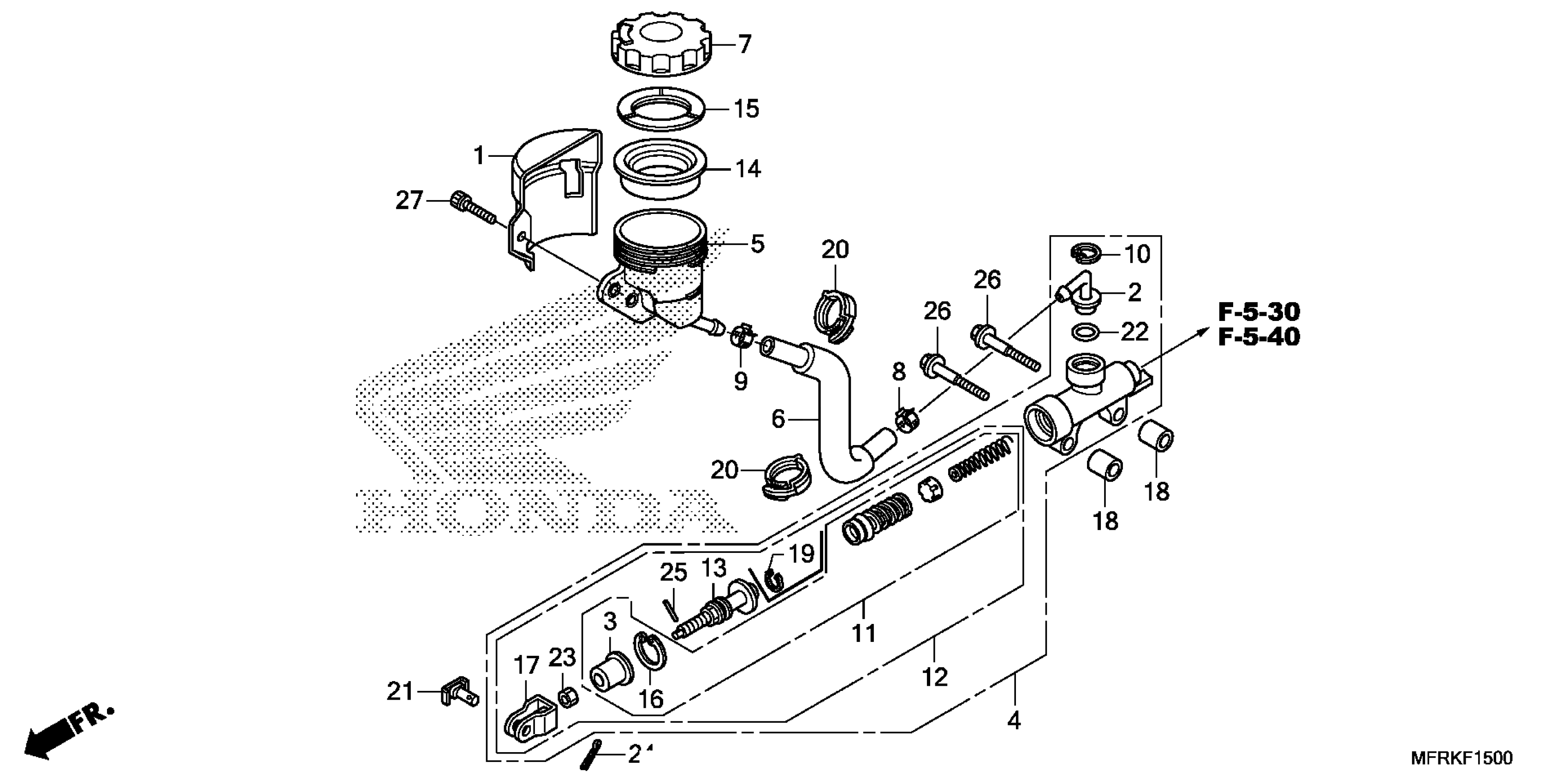

Honda VT1300CXA7AC (25) MOTORCYCLE, JPN, VIN# JH2SC616-SK900001 TO JH2SC616-SK999999 REAR BRAKE MASTER CYLINDER Diagram

COVER, RR. BRAKE OIL CUP

21341-MCH-000

$15.62

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$8.94

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. (NISSIN)

43510-MFR-A01

$212.23

CUP, MASTER CYLINDER OIL

43511-MA6-006

$36.12

HOSE, RR. MASTER CYLINDER

43512-MFR-671

$10.12

CAP, OIL CUP

43513-MY1-006

$26.39

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$13.91

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.55

PISTON SET, RR. MASTER CYLINDER

43520-MCV-016

$29.41

ROD, PUSH

43530-MCV-006

$12.38

DIAPHRAGM

45520-300-000

$8.13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

CIRCLIP

46182-MEL-D21

$1.77

JOINT, BRAKE ROD

46504-MAH-671

$13.01

COLLAR, RR. BRAKE BRACKET

50617-MFR-670

$3.41

CIRCLIP, PISTON

90651-MBG-006

$2.59

CLIP, WIRE HARNESS

90683-KJ2-003

$3.32

PIN, JOINT

90751-MEH-000

$2.97

O-RING (14.8X2.4)

91212-422-006

Unavailable

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, COTTER (2.0X15)

94201-20150

$0.94

PIN, SPRING (2X10)

94305-20102

$0.80

BOLT, FLANGE (6X35)

95801-06035-08

$1.71

BOLT, SOCKET (6X16)

96600-06016-07

$1.58
