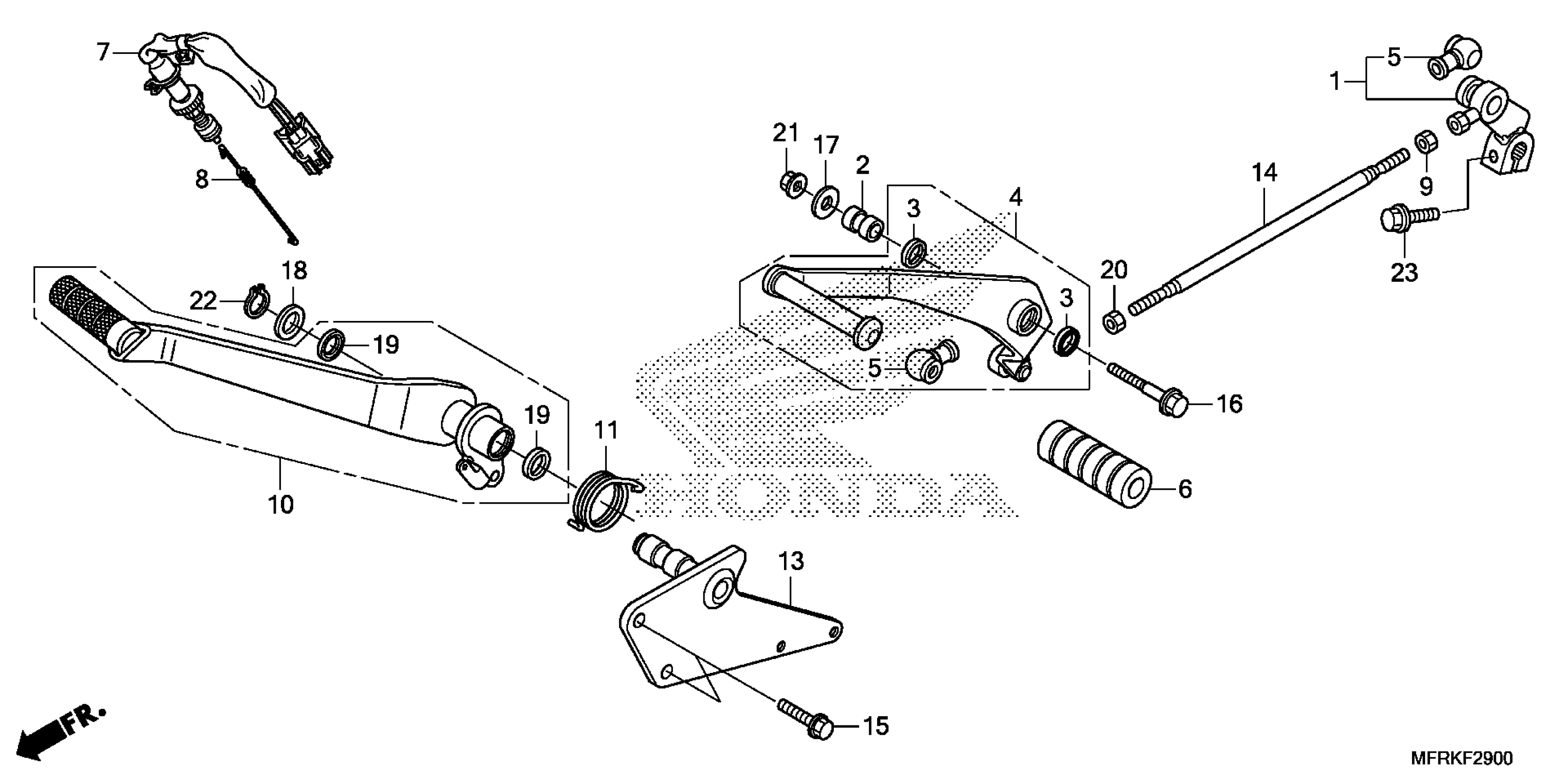

Honda VT1300CXA7AC (25) MOTORCYCLE, JPN, VIN# JH2SC616-SK900001 TO JH2SC616-SK999999 PEDAL Diagram

ARM, GEARSHIFT

24702-MFR-670

$41.74

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MB0-000

$10.84

RUBBER, DUST SEAL

24706-MK3-770

$4.16

PEDAL, GEARSHIFT

24710-MFR-670

$80.43

COVER, DUST

24724-MBW-D21

$6.49

RUBBER, GEARSHIFT PEDAL

24781-MCH-000

$5.21

SWITCH ASSY., RR. STOP

35350-MFR-672

$32.32

SPRING, STOP SWITCH

35357-MFR-670

$3.78

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.48

PEDAL ASSY., RR. BRAKE

46500-MFR-670

$112.90

SPRING, BRAKE PEDAL

46514-MFR-670

$7.65

BRACKET, RR. BRAKE

50618-MFR-670

$47.39

BOLT, TIE ROD

90065-MFR-670

$11.36

BOLT, FLANGE (8X19)

90102-MW4-000

$4.47

BOLT, SPECIAL FLANGE (8X40)

90122-MM2-000

$3.90

WASHER (8MM) (Honda Code 0285189)

90514-921-000

$0.99

WASHER (15.2X25)

90557-230-000

$2.17

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.44

NUT, HEX. (6MM)

94002-06020-0S

$1.00

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

CIRCLIP (OUTER) (15MM)

94511-15000

$0.62

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61
