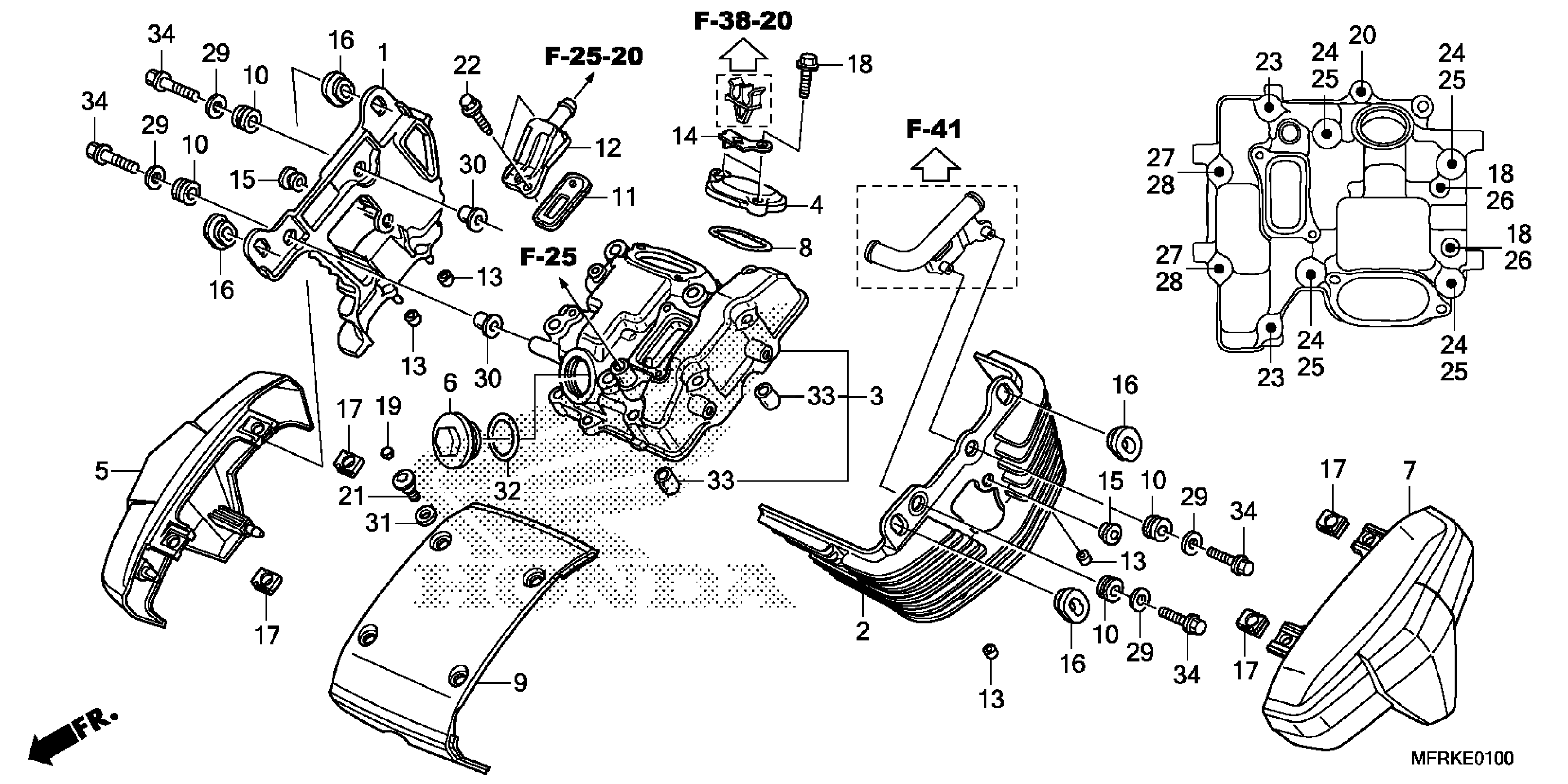

Honda VT1300CXA7AC (25) MOTORCYCLE, JPN, VIN# JH2SC616-SK900001 TO JH2SC616-SK999999 FRONT CYLINDER HEAD COVER Diagram

#

Description
Price

1

FIN, CYLINDER HEAD (FR. R.)

12261-MFY-A00

$164.97

2

FIN, CYLINDER HEAD (FR. L.)

12271-MFY-A00

$187.44

3

COVER, FR. CYLINDER HEAD

12310-MEA-670

$290.79

4

COVER, IN. TAPPET ADJUSTING HOLE

12341-MEA-670

$14.68

5

COVER, R. FR. OVER HEAD

12360-MFR-670

$86.09

6

CAP, TAPPET ADJUSTING HOLE

12361-383-000

$6.14

7

COVER, L. FR. OVER HEAD

12370-MFR-670

$86.09

8

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.74

9

COVER, FR. CENTER OVER HEAD

12400-MFR-671

$101.97

10

RUBBER, CUSHION

17622-GB7-900

$4.58

11

VALVE, REED

18601-MCH-003

$24.86

12

COVER, REED VALVE

18612-MCH-000

Unavailable

13

RUBBER, BUSHING (DENSO)

19041-611-003

$42.43

14

STAY, IGNITION WIRE

30531-MFR-670

$2.25

15

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.41

16

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

17

NUT, FENDER SETTING (6MM)

84601-HC4-000

$4.09

18

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.81

19

PLUG, HEX. (5MM)

90005-MAH-000

$2.24

20

BOLT, FLANGE (6X25) (NSHF)

90006-GHB-670

$1.66

21

BOLT, SPECIAL (6X17)

90006-MFR-670

$2.51

22

BOLT, FLANGE (5X14)

90012-896-750

$1.16

23

BOLT, FLANGE (8X150)

90015-MG8-000

$5.80

24

NUT, FLANGE CAP (10MM)

90201-HA0-000

$6.15

24

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.15

25

WASHER (10MM)

90403-ML4-611

$5.39

26

WASHER, SEALING (6MM)

90441-706-000

$1.07

27

WASHER, SEALING (8MM)

90441-ME9-000

$2.41

28

NUT, CAP (8MM)

90443-107-000

$2.66

29

WASHER (18MM) | Use up to Engine SN 5025055. This part replaces 90482-567-000.

90581-831-650

$1.72

29

WASHER (18MM) | Use up to Engine SN 5025055. This part replaces 90581-701-000.

90581-831-650

$1.72

29

WASHER (18MM) | Use up to Engine SN 5025055.

90581-831-650

$1.72

29

WASHER SPECIAL (6MM) | Use from Engine SN 5025056.

90482-K94-V30

$0.85

30

COLLAR, HEAD SIDE COVER

90502-KGB-610

$1.96

31

WASHER, NYLON (9MM)

90507-ZV1-000

$1.85

32

O-RING (35X3) (ARAI) SEAL, VALVE STEM (NOK)

91303-KK3-830

$2.80

33

PIN A, DOWEL (14X20)

94301-14200

$2.80

34

BOLT, FLANGE (6X25)

95701-06025-00

$1.79
